DNA TOOLS-00165 Instruction Manual

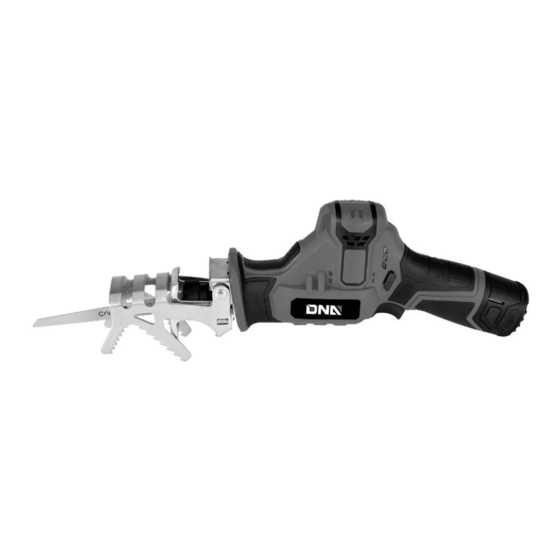

Cordless reciprocating saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

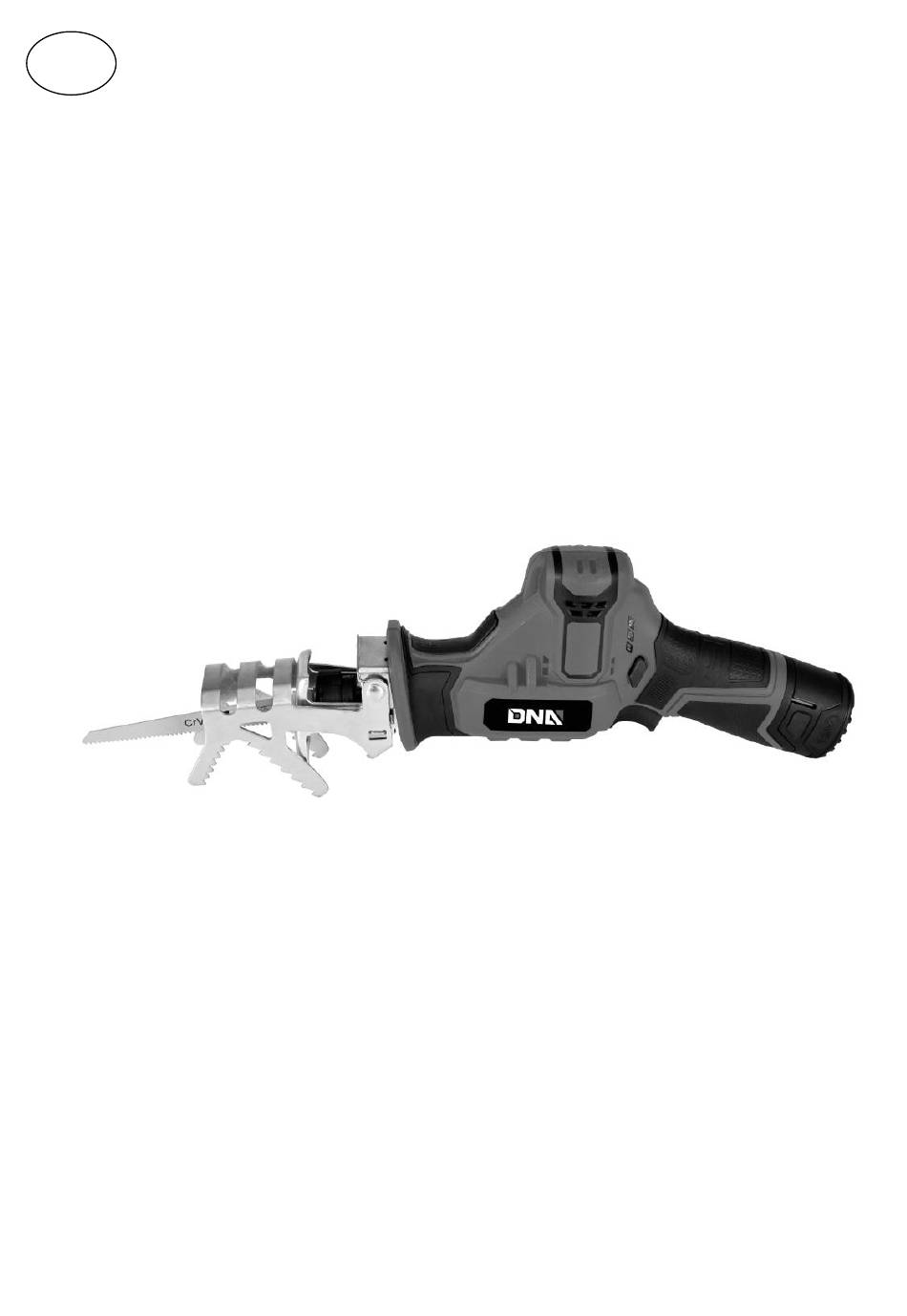

INSTRUCTION MANUAL
EN
Cordless Reciprocating Saw
TOOLS-00165/00166
Power tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOOLS-00165 and is the answer not in the manual?

Questions and answers

Summary of Contents for DNA TOOLS-00165

  • Page 1 INSTRUCTION MANUAL Cordless Reciprocating Saw TOOLS-00165/00166 Power tool...

  • Page 2: Description Of The Symbols

    DESCRIPTION OF THE SYMBOLS Symbols are used in this manual to attract your attention to possible risks .The safety symbols and the explication which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents.

  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"...
  • Page 4 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

  • Page 5: Safety Instructions

    e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.

  • Page 6: Technical Specifiations

    LIST OF MAIN PART 1. Holding bracket 2. Quick-action blade clamp 3. Release button (holding bracket) 4. Battery indicator 5. Safety button 6. On/off-switch 7. Battery (not included) 8. Blade TECHNICAL SPECIFIATIONS Power 12 V Speed 0-2700/min Stroke length 20mm Max.

  • Page 7: Operation

    OPERATION Before use Remove any packing material and loose parts from unit. Check the accessories before use. It should be fit with the machine and your purpose. If the machine is new, the battery must first be charged. Attention! After long time storage, the battery capacity will be reduce. Battery is housed in the handle, press the battery retention clips, and remove battery from handle.
  • Page 8 Inserting/Removing the holding bracket Inserting the holding bracket Press the release button Slide the holding bracket over the guides of the shoe into the tool. Lock the release button Removing the holding bracket Press the release and pull the holding bracket forward and out of the guide. Working without holding bracket When cutting thicker branches or sawing wood/plastic materials, working WITHOUT holding bracket.

  • Page 9: Maintenance

    tool. Use only enough pressure to keep the saw cutting. Plunge Cutting Clearly mark the line of cut. From a convenient starting point within the cut out area, place the tip of the blade over that point with saw parallel to the line of cut. Slowing lower the saw until the button edge of the shoe rests on the workpiece.

This manual is also suitable for:

Tools-00166
