Summary of Contents for ROLEC SmartCard ACEU0160

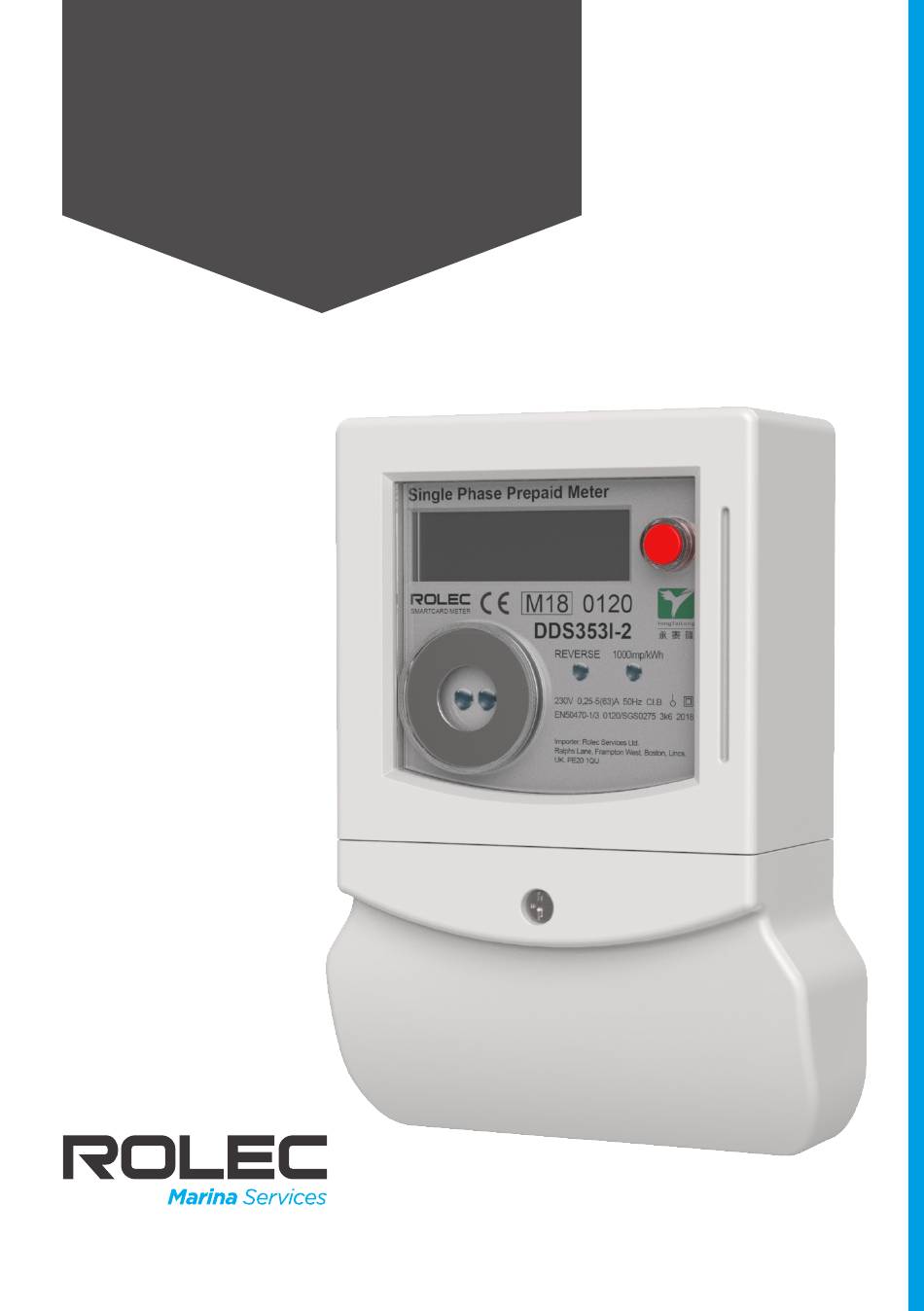

- Page 1 SmartCard METER OPERATION MANUAL MODEL: ACEU0160 Operation Manual - SCMM-01-V01-R1 March 2023...
- Page 2 Date Published: March 2023 Rolec Services Ltd are the publishers of this document and own the rights to use the text, images and all technical content contained within. Content supplied by third parties / partner organisations remains the property of that organisation and is used by agreement with the supplier.
-
Page 3: Table Of Contents
Safety Contents Safety Product Overview Requirements Connecting the Card Reader/Writer Install Software Run the Program as an Administrator Configuration Log In Create a User Card Edit a User Card Add credit to a User-Card Refund credit from a User-Card Change the Tariff Transaction History Create a Clearing Card Use the Smartcard meter... -
Page 4: Safety

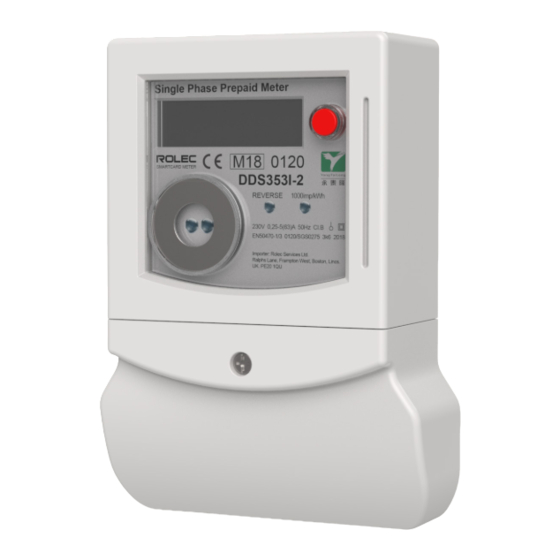

Damage to the product may render it unsafe. The product must be electrically isolated and NOT used until appropriate remedial action has been performed. Product Overview The Rolec Smartcard meter is designed for simple and cost-effective pre- payment electricity metering. -
Page 5: Connecting The Card Reader/Writer
Install Software 1. Run the file ‘Rolec Smartcard Setup_v1.exe’ then follow the on- screen instructions: Run the Program as an Administrator Users of Windows 7, 8, 10 and 11 must run the program as an Administrator to get the software performing as it should. -
Page 6: Configuration
Configuration 5. Locate the program on the PC and right click its icon. 6. A menu should be displayed providing the option to Run as administrator. 7. Select the Run as administrator option. 8. Click as appropriate to accept any on-screen messages and the software should start. -
Page 7: Log In
Configuration Log In 1. Enter the login password that was created during the installation process, then click on the LOGIN button. 2. After logging in, click the CONNECT TO CARD READER button. The card reader will beep when it has successfully connected. Create a User Card 1. -
Page 8: Edit A User Card
Configuration Edit a User Card To assign a Smartcard to a new user or amend any details: 1. Insert the Smartcard into the card reader with the chip facing upwards. 2. Click on the READ CARD button. 3. Click on the EDIT USER CARD button on the left-hand side of the main screen. -
Page 9: Refund Credit From A User-Card
Configuration Refund credit from a User-Card 1. Insert the Smartcard into the card reader with the chip facing upwards. 2. Click on the READ CARD button. 3. To refund any remaining credit on the card click on the REFUND CREDIT button. -
Page 10: Transaction History
Configuration Transaction History 1. To view the transaction history, click on the TRANSACTIONS button on the right-hand side of the main screen. The display will then show the selected day’s totals and a transaction list showing the date and time of each transaction, card number, card holder, tariff, value, and transaction type (Credit or Refund). -
Page 11: Create A Clearing Card
Configuration Create a Clearing Card The software allows the creation of clearing cards which can be used to remove any remaining credit on a Smartcard Meter. 1. Insert the Smartcard into the card reader with the chip facing upwards. 2. Click on the CREATE CLEARING CARD button. -
Page 12: Use The Smartcard Meter
Configuration Use the Smartcard meter 1. If required, a brief press of the red button on the front of the meter will activate a display backlight for low light conditions. 2. If the button is pressed and held, the meter may enter the refund credit mode (refer to the instructions on the next page). -
Page 13: Refund Credit From The Meter
Warranty Information Refund credit from the meter Any credit remaining on the meter can be transferred back to the Smartcard, allowing the card to be used another service/meter or to be returned it to the issuing office for a refund. NOTE: Credit on the meter can only be transferred to the same Smartcard that issued the credit. - Page 16 THE WORLD’S LEADING MARINA SERVICES SPECIALIST Head office contact: @ @ RolecMarina t: +44 (0) 1205 724754 www.rolecserv.com f: +44 (0) 1205 724876 rolec@rolecserv.co.uk...
Need help?
Do you have a question about the SmartCard ACEU0160 and is the answer not in the manual?
Questions and answers
how do you change the tariff on the computer
To change the tariff on the ROLEC SmartCard ACEU0160 computer:
1. Click the SETTINGS button on the bottom left of the main screen.
2. Enter the settings password to proceed.
3. Enter the new tariff (price per kWh unit) in the settings screen.
4. Click the CHANGE button to save the new tariff.
Note: If the new tariff differs from the one already applied to an existing card with credit, you must refund the existing credit before adding more.
