Summary of Contents for dfv CP-M1250

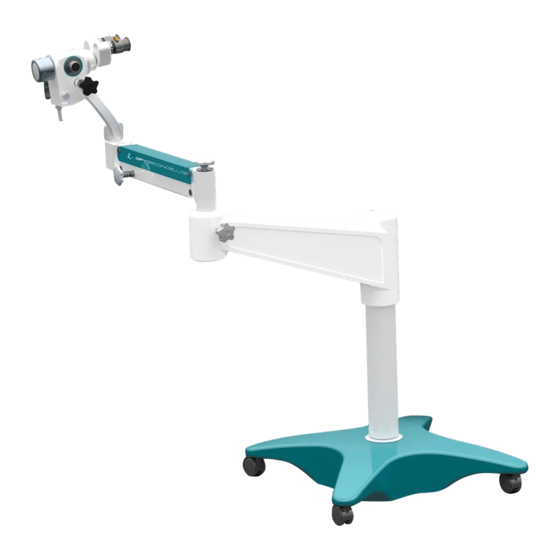

- Page 1 DFV-N50/93-02 Aug. 2002 CP-M1250 CP-M1230 INSTRUCTIONS D.F. Vasconcellos S/A High Precision in Optics and Mechanics Technical Publications Dept. COLPOSCOPE...
- Page 2 DFV-N50/93-02 Aug. 2002 THE COMPANY AND ITS PRODUCTS D.F. VASCONCELLOS, with over half a century of existence, was the first Brazilian industry specialized in the production of precision optical instruments. It has grown ever since, its expansion being headed to the meeting of prospective markets, without ever failing to meet its products reliability.
- Page 3 DFV-N50/93-02 Aug. 2002 D.F.VASCONCELLOS S/A High precision in optics and mechanics D.F.VASCONCELLOS S.A. High precision in optics and mechanics Address: Av. Indianópolis, 1706 04062-901-São Paulo-Brazil Phone: 55-11-5584-0411 E-Mail: dfvomap@dfv.com.br Fax: 55-11-5585-2300 Mail Box: 45.349-CEP 04010-970 - São Paulo - SP...
-
Page 4: Table Of Contents
DFV-N50/93-02 Aug. 2002 I - TABLE OF CONTENTS Table of contents............Foreword..............Technical Data ............Colposcope Description ........a - Optical Head b – Floor Stand c - Illumination Complete assembly of the colposcope head Colposcope Handling..........a) Magnification selector... -
Page 5: Foreword
This manual is intended to give assistance in the assembly and operation of the Colposcope Series CP-M1250/1230. The Colposcope Series CP-M1250/1230 is multi-purpose equipment suited for diagnostic practice and general microsurgery in the field of gynecology. We shall demonstrate in the following sections the applicable accessories to the above specialties. -
Page 6: Technical Data
DFV-N50/93-02 Aug. 2002 III - TECHNICAL DATA A - Colposcope Head Colposcope Galilean System Straight binoculars Porro type, focus 160 mm Objetive (focus) 300 mm Wide angle type 12,5X; adjustable Eyepiece (two) Magnification See table Observation field See table Illumination field... -
Page 7: Colposcope Description
DFV-N50/93-02 Aug. 2002 IV- COLPOSCOPE CP-M1250/1230 DESCRIPTION FIGURE 1 1) Optical head with binocular 2) Floor stand set 3) Cold light generator... - Page 8 DFV-N50/93-02 Aug. 2002 IV - a - COMPLETE OPTICAL HEAD FIGURE 2 1) Optical head 2) Inclined and straight binoculars 3) Objective...
- Page 9 DFV-N50/93-02 Aug. 2002 IV-a-1 - OPTICAL HEAD FIGURE 3 1) Body 2) Objective 3) Magnification selector 4) Green filter lever 5) Focusing knob 6) Optical fiber connector 7) Brake lever 8) Fork 9) Shank pin 10) Dovetail rule 11) Guide pin...
- Page 10 DFV-N50/93-02 Aug. 2002 IV-a-2 - STRAIGHT BINOCULARS FIGURE 4 1) Binoculars body 2) Eyepiece tube 3) Eyepieces with diopter adjustment 4) Eye protectors 5) Binocular protection plugs Note: The data given is also valid for inclined binoculars...
- Page 11 DFV-N50/93-02 Aug. 2002 IV-a-3 - OBJECTIVE The colposcopes are shipped by the factory with the following objective: F = 300 mm The following objectives are available as options: F = 175 mm F = 200 mm F = 250 mm...
- Page 12 DFV-N50/93-02 Aug. 2002 IV - b) FLOOR STAND SUPPORT 1) Base with 5 trundles and five casters (two with brakes) 2) Counterweight 3) Column 4) Cold light generator 5) Balance Knob 6) Pantographic forearm II 7) Clamp for light conductor...
- Page 13 DFV-N50/93-02 Aug. 2002 REAR PART IV – c - COLD LIGHT GENERATOR - Wire access - 02 fuses 2.5 A - Reversible switch - Identification plate Lamp housing Pilot lamp On/Off switch with potentiometer Connector for fiber optic cable FIGURE 6 This illumination system is called "cold light", since it does not allow the passage of the...
-
Page 14: A) Optical Head
DFV-N50/93-02 Aug. 2002 V - COMPLETE ASSEMBLY OF THE COLPOSCOPE HEAD Remove from the packing case with maximum care: a) Optical head b) Binoculars c) Eyepieces and protectors 1. Head assembly Introduce the shank pin (item 9-figure 3) into the terminal (item 11-figure 5). Screw the safety knob (item 14-figure 3) and lock the shank pin with knob (item 12 –figure 5). -
Page 15: Colposcope Handling
DFV-N50/93-02 Aug. 2002 VI - COLPOSCOPE HANDLING a- MAGNIFICATION SELECTOR The magnification selector has 6 positions: A/6, B/10, C/16, D/25, E/40. The C/16 position is repeated in the selector. The position being used in the one that stands before the red mark on the body. -
Page 16: C) Focal Point
DFV-N50/93-02 Aug. 2002 The figure shows the lever unscrewed and removed, and the fixation hole. There are five more holes that are covered by the protective ring, which are seen successively as the ring is turned, as indicated in the figure. -
Page 17: F) Green Filter
DFV-N50/93-02 Aug. 2002 f- GREEN FILTER If the operator considers it necessary, a green filter may be interposed between the illumination and the objective, which is done with the help of the filter knob (item 4 - Figure 3). g- PANTOGRAPHIC ARM BALANCING... -
Page 18: Optical And Field Magnification Table
The CP-M1250 and CP-M1230 colposcolpes have the same basic configuration as related in item III-A, the diference between them is that the CP-M1250 has a magnification selector with six positions and five magnifications (A, B, C, D and E) and the CP-M1230 has a four position selector and three magnification (B, C and D). -
Page 19: Maintenance
DFV-N50/93-02 Aug. 2002 VIII - MAINTENANCE WARNING: Once a year a short revision shall be made, including: a) Lubrication; b) Cleaning up; c) Lamps examination; d) Electric connections; e) Spare lamps: at least two spare lamps shall be kept to avoid losing time with equipment unavailability and larger damages to the colposcope. -
Page 20: C) Lamp Examination
DFV-N50/93-02 Aug. 2002 b- CLEANING The objective, fixed before the field under clinical treatment or surgery, is exposed to bloodstains and drips of topic medicines, etc. The stains blur the light path reducing the luminosity of the optical observation. Cotton padding wetted in alcohol or ether rubbed softly, in CIRCULAR MOVEMENTS over the optical surface, are enough to clean the stains, except those of clot blood. - Page 21 DFV-N50/93-02 Aug. 2002 e - REPLACEMENT OF THE MICROSCOPE LAMP Lamp housing Housing Lamp cover locking knob Lamp socket Lamp Lamp housing – Internal view Fixation Lamp FIGURE 9 spring socket -Procedure for lamp change: a) Turn the lamp housing locking knob counter-clockwise.
-
Page 22: F) Electric System
DFV-N50/93-02 Aug. 2002 f - ELECTRIC SYSTEM... -
Page 23: Accessories
DFV-N50/93-02 Aug. 2002 IX - ACCESSORIES A - GENERAL MC-A50 Beam splitter MCA-131 Special stereo tube for second observer MCA-51 Secondary eyepiece for assistant with 12.5 x MCA-198 Inclined binocular MCA-232 Adjustable eyepiece 12.5x, wide angle, with lock MCA-245 Adjustable eyepiece 12.5x, wide angle, with reticule... -
Page 24: Warranty
DFV-N50/93-02 Aug. 2002 X - WARRANTY OF FITNESS CERTIFICATE D.F.VASCONCELLOS S/A - ÓPTICA E MECÂNICA DE ALTA PRECISÃO states that this product has passed its Quality Control Dpt. and did not show any defect in manufacturing, and therefore WARRANTS its proper functioning, under adequate usage conditions according to the standards in the appended Manual.
