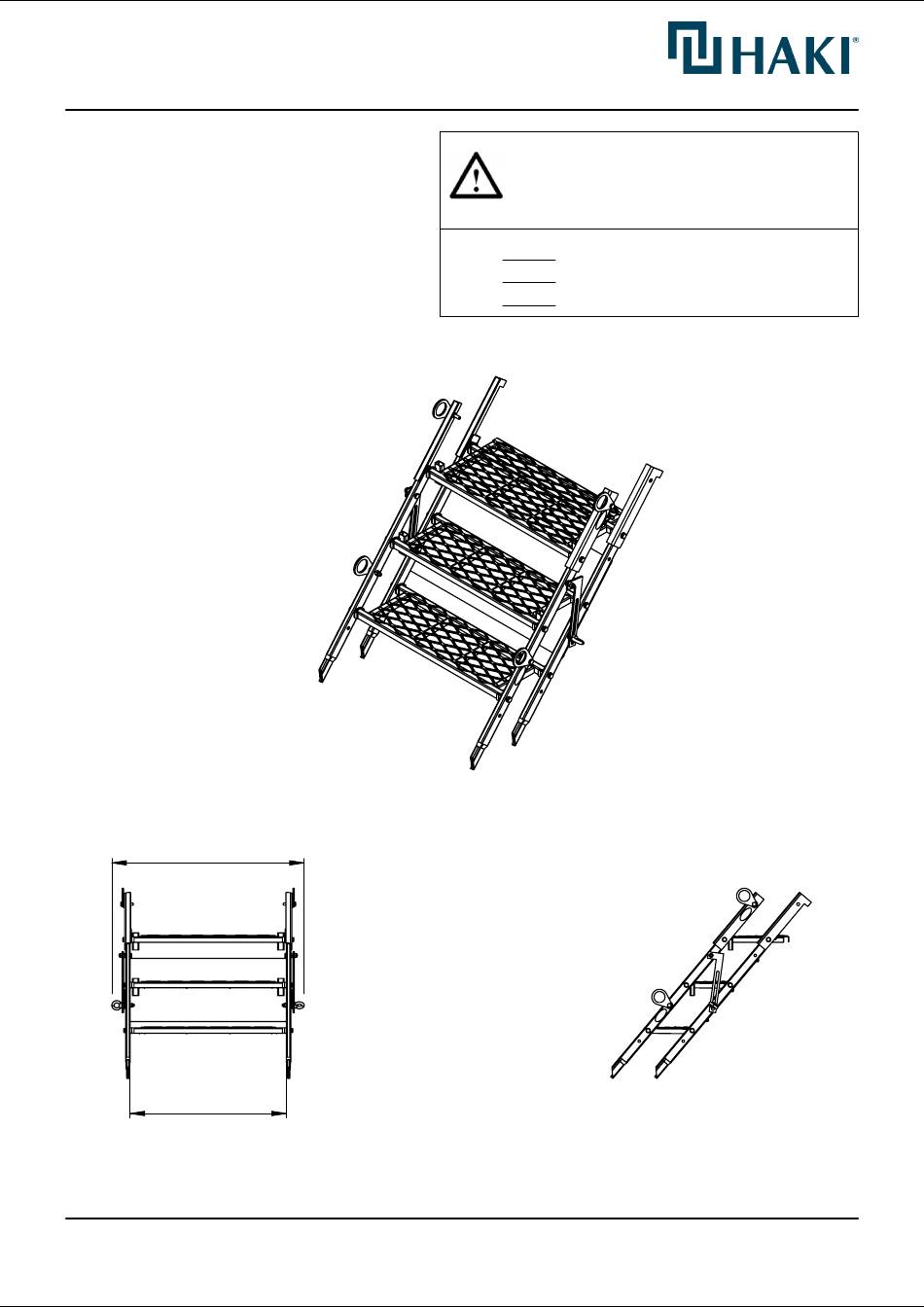

Part No.: V211-001

Name: Steel 3 Step Stairway (700 wide)

Weight: 45 kg

Standard: EN 12811-1

Material: Galvanised Steel

Dimensions: mm

Nom. 870

710

©HAKI

This Technical Document must always be

used in conjunction with HAKI's

General Qualifications -See below

Always plan your work and installation

Always select the right equipment

Always regularly inspect your system

www.HAKI.com

2246 - Subject to changes

Need help?

Do you have a question about the TD V211-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for Haki TD V211-001

Page 1 TD V211-001 (en) Part No.: V211-001 This Technical Document must always be Name: Steel 3 Step Stairway (700 wide) used in conjunction with HAKI's Weight: 45 kg General Qualifications -See below Standard: EN 12811-1 Material: Galvanised Steel Always plan your work and installation...
Page 3 TD V211-001 (en) * Complies to EN 12811-1 between 41° - 49° * Complies to EN 12811-1 between 41° - 49° www.HAKI.com ©HAKI 2246 - Subject to changes...
Page 4 TD V211-001 (en) Loosen eye nuts Erect to desired angle Tighten eye nuts Mount guard rails Fit retaining pin www.HAKI.com ©HAKI 2246 - Subject to changes...
Page 5 TD V211-001 (en) ≤ 9 ≥12 min. 2 V212-015 V212-024 Steel Stairway Slab Fix Stairway Scaffold Fix HD (Pair) <150 kg max. 2 www.HAKI.com ©HAKI 2246 - Subject to changes...
Page 6 TD V211-001 (en) Joining Stairways - Max. 21 Steps 3/6/9/12/15/18 Steps + 3/6/9/12/15/18 Steps 3/6 Steps + 3/6 Steps + 3/6 Steps Remove nut & bolt and use to join handrails Save for re-assembly Reuse to join stairways www.HAKI.com ©HAKI...
Page 8 TD V211-001 (en) Spare parts V212-024 V212-013 Stairway Scaffold Fix HD (Pair) Stairway - Standard step V212-022 V212-014 Stairway lock Pair Stairway - Standard step handrail V214-018 V212-021 Stairway Lifting Rings Set of 4 Stairway - Big Step V212-015 Steel Stairway Slab Fix For other parts and more information, please contact vertemax.
