MULTISHADE
MANUAL AND MOTORIZED MODELS

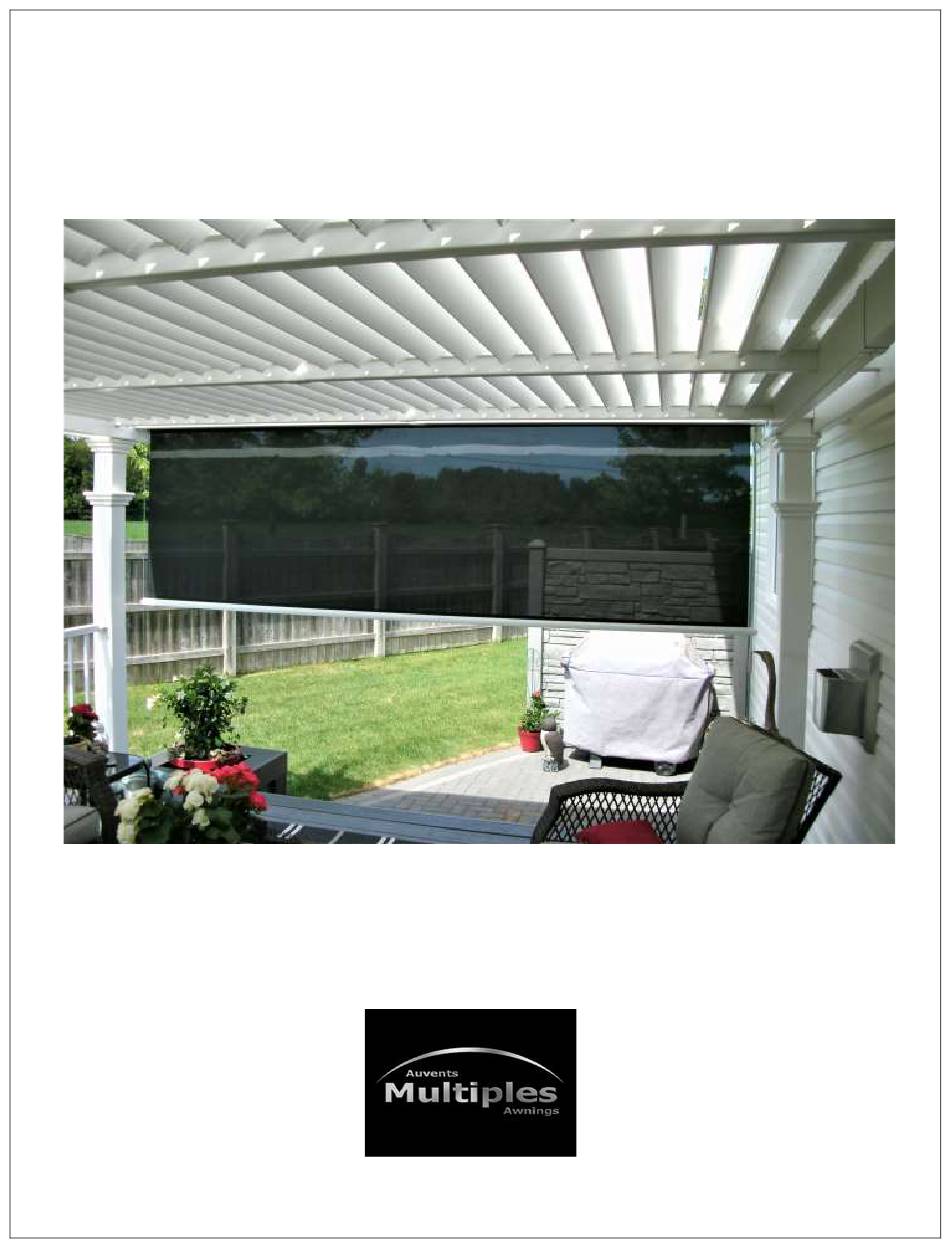

Installation Manual
2023 VERSION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTISHADE and is the answer not in the manual?

Questions and answers

Related Manuals for Multiples MULTISHADE

Summary of Contents for Multiples MULTISHADE

  • Page 1 MULTISHADE MANUAL AND MOTORIZED MODELS Installation Manual 2023 VERSION...
  • Page 2 CAUTION! Your MultiShade was not designed to withstand strong winds and accumulations of rain, snow or ice. Such buildup could cause it to fall, causing personal injury or property damage and rendering its warranty void.

  • Page 3: Table Of Contents

    4 Installing the Casing 4.1 Installing casing on the support brackets 4.2 Installing the cable guides 4.3 Connect the motor to AC and operate your MultiShade 4.4 The remote control and its support 4.5 Remote control channels 4.6 Lower limit adjusting and solidity testing 5 Maintenance and Safety 5.1.

  • Page 4: Preparation

     Caulking NOTE: Make sure you have helpers to install your MultiShade, we recommend at least 2 people to make sure the installation process goes smoothly. We also recommend that you rent a manual lift or an electrical one such as a Skylift™.

  • Page 5: Unpacking Your Multishade

    Remove the wooden lids.  Pull the MultiShade out of the tube and deposit onto a blanket or grass. You must be at least 2 people to perform this operation safely.
  • Page 6  Pull the MultiShade out of the box and deposit onto a blanket, grass or on trestles. You must be at least 2 people to perform this operation safely. Please make sure you have taken all the accessories packed out of the box, do not throw out your packaging until you have all the items listed in section 1.3.

  • Page 7: List Of Parts Included

    1.3 List of Parts Included Wrapped with the MultiShade  1 hand crank – for manual models Hardware Bag  1 remote control – for motorized models  2 cable guide brackets  2 support brackets for units less than 6 feet ...

  • Page 8: Installation On Wood, Vinyl Or Aluminum Siding

    Groove behind the casing is used for wall mount. Determine where you wish to install your MultiShade. For a wall mount, make sure there is a free space of 5.5’’ above the place chosen to accommodate the casing.

  • Page 9: Installation Of Support Brackets

    2.2 Installation of support brackets 1. Position the bottom of each bracket 1 ¼” higher than the front bottom of the casing taking into consideration that the casing is 5.5'' high when installed. 2. Trace a levelled horizontal line at this height. This will help with the positioning of the other brackets.

  • Page 10: Installation On Masonry

    3 INSTALLATION ON MASONRY CAUTION! This method is only valid for solid brick walls. This excludes all types of decorative bricks. Make sure that the support bracket is perpendicular to the ground (i.e., 90 ). Otherwise, you may cause the support brackets to bend, which might result in the casing collapsing. We recommend using shims if the installation surface is uneven.
  • Page 11 ATTENTION! The masonry bolts provided with your MultiShade are not designed to use in the mortar between 2 bricks. They must be installed in the body of the brick, at least 1" from the edges of the brick.

  • Page 12: Installing The Casing

    1. Unroll the 2 cable guides. 2. Insert the cables into their respective holes at the ends of the load bar. Next, determine how far your MultiShade will descend, the maximum length of the fabric is 9.5’ from the case.

  • Page 13: The Remote Control And Its Support

    When using your remote control, make sure to select the correct channel. When the MultiShade leaves our factory, the remote is programmed by default on channel # 1. This is the one you must first select to operate your MultiShade.
  • Page 14 MultiShades or MultiShades equipped with a Dooya motor. 4.6 Adjustment of The Opening Limits and Solidity Testing At any time, you can stop the lowering of your MultiShade by pressing the « - » stop button on the remote control.

  • Page 15: Maintenance And Safety

    Damage to the fabric and mechanism caused by accumulation of water, rain, snow, ice or strong winds are not covered by the manufacturer's warranty. You should always retract your MultiShade during periods of snow, ice, rain or strong winds. Never leave an open MultiShade unattended.

  • Page 16: Motor And Remote Control Maintenance

    The electric motor is equipped with an automatic overheating shutoff system. If you open and close your MultiShade several times in a row, the motor stops automatically before overheating. The motor will resume normal operation after at least twenty (20) minutes of cool down.

  • Page 17: Appendices

    Before retracting your MultiShade for the last time of the season, make sure that the fabric is clean and dry to prevent mould formation during the winter. Do not forget to remove the batteries from the remote control before closing the MultiShade for winter.
  • Page 18 IMPORTANT! ONLY IF YOUR MOTOR IS ON THE RIGHT SIDE OF YOUR MULTISHADE : when resetting you will need to change the rotation direction of the motor. To do this, simultaneously press the «▼» and «▲» buttons on the remote control until you hear 3 beeps and 1 movement. The rotation direction of the motor is now reversed.

  • Page 19: B Programming Upper And Lower Limits

    6.A.3 Adding Multiple Shades on 1 Remote When your MultiShade leaves our factory, the remote control is programmed by default to channel # 1. If you have more than one MultiShade, each one comes with its own remote. This leaves you with 14 other channels with which you can program to operate other MultiShades equipped with a Dooya motor.

  • Page 20: C Adjusting The Limits

    3. Press and hold the arrow up button « ▲ » until the motor makes 3 beeps and 2 movement. 4. Press and hold the P2 button until the motor makes 3 beeps and 2 movement. The motor is now ready for limit setting. Setting the Temporary Upper Limits 1.
  • Page 21 MultiShade closes correctly. 7 REMOVING THE MULTISHADE FROM ITS SUPPORTS Before removing the MultiShade from the support brackets, it is important to completely close it, unplug it and tie it in the closed position with rope or bungee cords.

  • Page 22: Troubleshooting Guide

    FUNCTIONING ISSUES Problem My remote control does not make my MultiShade open or close. If your shade stops while opening or closing or immediately after it has moved, this could indicate the overheating protection has been triggered.
  • Page 23 See appendix 6.A.3. Problem I cannot program my new remote Solution See appendix 6.A.2 I am trying to open my MultiShade, but the load bar does not lower Problem or one of the load bar’s side is lower than the other.

  • Page 24: Contact Us

    The guide wire is not perpendicular to the casing or not parallel to each Solution other. Check your installation. Contact us: Auvents Multiples Inc. Salle de montre/Showroom : 1505A rue de l’Industrie, Beloeil, QC J3G 0S5 Usine/Factory : 1701 rue de l'Industrie, Beloeil, QC J3G 0S5 Téléphone/Telephone : (450) 446-4182...
