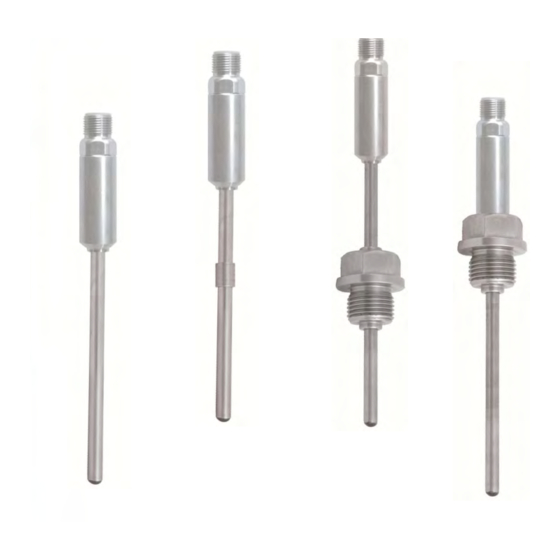

GTF 111-Ex ...
Operating Manual
GTF 112-Ex ...
0158
GHM Messtechnik GmbH • Standort Greisinger
Hans-Sachs-Str. 26 • D-93128 Regenstauf
+49 (0) 9402 / 9383-0
+49 (0) 9402 / 9383-33
info@greisinger.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GREISINGER GTF 111-Ex Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GHM-Messtechnik GREISINGER GTF 111-Ex Series

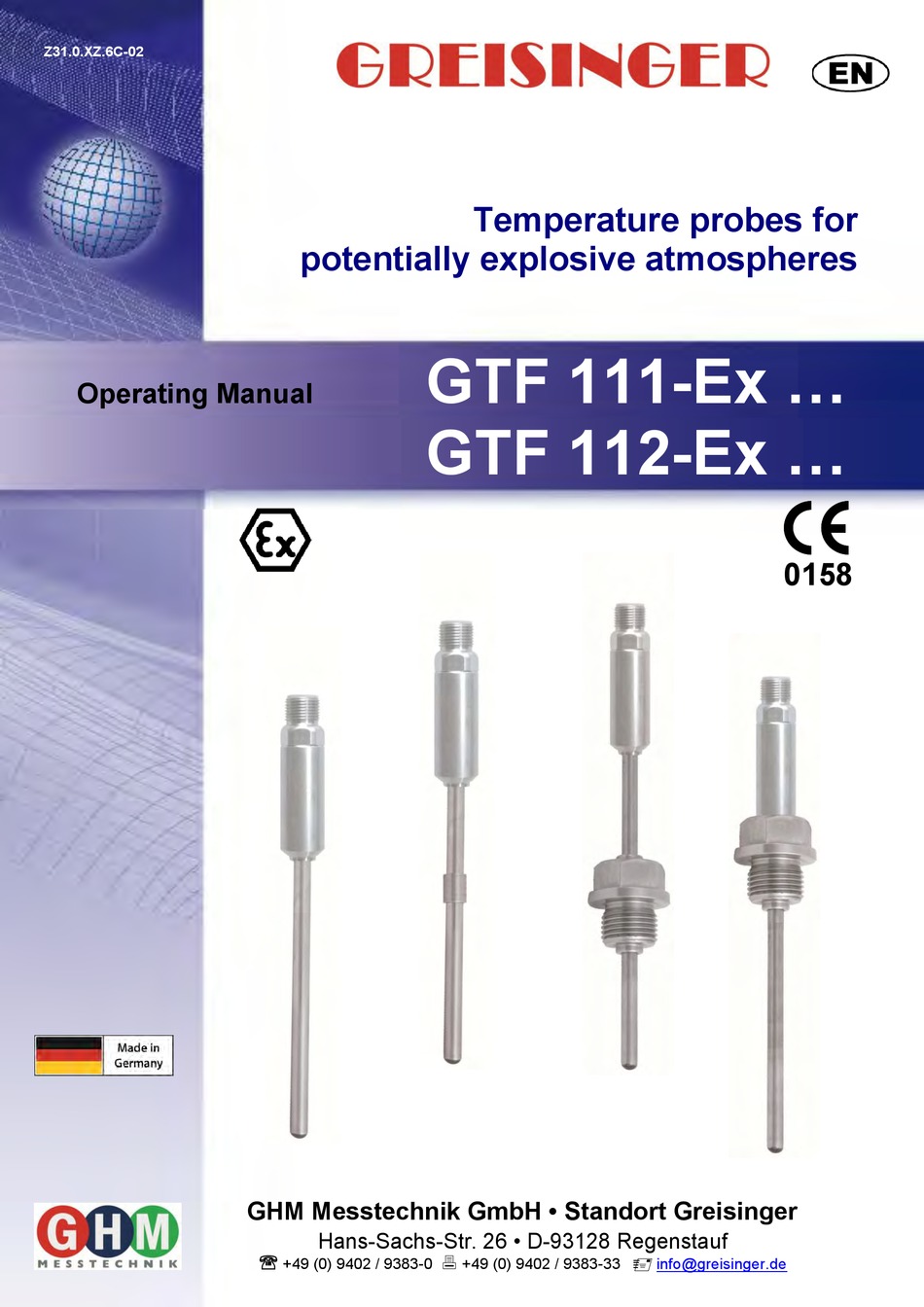

  • Page 1 Z31.0.XZ.6C-02 Temperature probes for potentially explosive atmospheres GTF 111-Ex … Operating Manual GTF 112-Ex … 0158 GHM Messtechnik GmbH • Standort Greisinger Hans-Sachs-Str. 26 • D-93128 Regenstauf  +49 (0) 9402 / 9383-0  +49 (0) 9402 / 9383-33 info@greisinger.de ...
  • Page 2: Table Of Contents

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 2 of 17 INDEX GENERAL NOTE ........................ 3 SAFETY ..........................3 Intended Use ........................3 Safety signs and symbols ....................3 Skilled personnel ......................4 Safety guidelines ......................4 2.4.1 General ..........................4 2.4.2 Additional safety instructions for zone 0 or zone 20 ............
  • Page 3: General Note

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 3 of 17 1 General note Read this document carefully and get used to the operation of the device before you use it. Keep this document within easy reach near the device for consulting in case of doubt. 2 Safety 2.1 Intended Use These resistance thermometers are designed for temperature measurement in explosion-...
  • Page 4: Skilled Personnel

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 4 of 17 2.3 Skilled personnel are persons who are familiar with the set-up, installation, commissioning and operation of the product and have appropriate qualification for their work. For example: • Training or instruction and/or authorisation, power circuits and devices/systems in accor- dance with the standards of safety for activation, deactivation, disconnection, earthing and identification.
  • Page 5: Additional Safety Instructions For Zone 0 Or Zone 20

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 5 of 17 ted! 2.4.2 Additional safety instructions for zone 0 or zone 20 These instructions must also be observed if the probe and connection sleeve are installed in this zone. Explosion-prone mixtures must only form under the following atmospheric condi- tions: -20°C ≤...
  • Page 6: Identification

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 6 of 17 3.2 Identification Examples for type plates                    Base type  Extension of the variant code (Type designation = ...
  • Page 7: Which Temperature Probe, Transmitter Do I Need

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 7 of 17 3.3 Which temperature probe, transmitter do I need? You can easily determine the temperature probe or temperature transmitter for your specific application from the table below. Zone 0 or 20 If the temperature must be detected in Ex Zone 0 or 20, the appropriate GTF111-Ex or GTF112-Ex temperature probe in ignition protection class Ex ia IIC T6 can be used.
  • Page 8: Probe Types

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 8 of 17 3.4 Probe types The GTF 111-Ex and GTF 112-Ex are available in a variety of different versions, depending on the selected sensor element of the medium temperature and the ambient temperature. All fur- ther specifications are based on the selection of the sensor elements, the desired temperature range or the necessary protection.
  • Page 9: Notes

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 9 of 17 4 Notes 4.1 Limited environmental temperatures 4.1.1 For types GTF 111-Ex-i-... and GTF 112-Ex-i-... Temperature class Zone 0 Zone 1 and 2 -20°C ≤ Ta ≤ +60°C -20°C ≤ Ta ≤ +80°C 4.1.2 For Types GTF 111-Ex-e-...
  • Page 10: Installations Instruction

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 10 of 17 5 Installations instruction 5.1 Connection diagram for Pt100 and Pt1000 terminal assignment   Pt 100(0)   6 Specification Measuring range: Pt100/Pt1000 without neck tube: -200 ... +100 °C Pt100/Pt1000 with neck tube: -200 ...
  • Page 11: Dimensions

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 11 of 17 6.1 Dimensions a.) GTF 111-Ex-... without neck tube b.) GTF 111-Ex-... with neck tube (insertion stop) c.) GTF 112-Ex-... without neck tube d.) GTF 112-Ex-... with neck tube 7 Decommissioning, reshipment and disposal 7.1 Reshipment All devices returned to the manufacturer have to be free of any residual of measuring...
  • Page 12: Ordering Information

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 12 of 17 8 Ordering information 8.1 Ordering code for GTF 111-Ex-... probes _________________________________________________________________________________________________________________ GHM Messtechnik GmbH Hans-Sachs-Straße 26 Tel.: 09402 / 9383-0 http://www.greisinger.de Standort Greisinger D-93128 Regenstauf Fax: 09402 / 9383-33 eMail: info@greisinger.de...
  • Page 13: Ordering Code For Gtf 112-Ex

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 13 of 17 8.2 Ordering code for GTF 112-Ex-... probes _________________________________________________________________________________________________________________ GHM Messtechnik GmbH Hans-Sachs-Straße 26 Tel.: 09402 / 9383-0 http://www.greisinger.de Standort Greisinger D-93128 Regenstauf Fax: 09402 / 9383-33 eMail: info@greisinger.de...
  • Page 14: Eu - Declaration Of Conformity

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 14 of 17 9 EU - Declaration of conformity _________________________________________________________________________________________________________________ GHM Messtechnik GmbH Hans-Sachs-Straße 26 Tel.: 09402 / 9383-0 http://www.greisinger.de Standort Greisinger D-93128 Regenstauf Fax: 09402 / 9383-33 eMail: info@greisinger.de...
  • Page 15: Eu - Type Examination Certificate

    Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 15 of 17 10 EU - Type Examination Certificate _________________________________________________________________________________________________________________ GHM Messtechnik GmbH Hans-Sachs-Straße 26 Tel.: 09402 / 9383-0 http://www.greisinger.de Standort Greisinger D-93128 Regenstauf Fax: 09402 / 9383-33 eMail: info@greisinger.de...
  • Page 16 Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 16 of 17 _________________________________________________________________________________________________________________ GHM Messtechnik GmbH Hans-Sachs-Straße 26 Tel.: 09402 / 9383-0 http://www.greisinger.de Standort Greisinger D-93128 Regenstauf Fax: 09402 / 9383-33 eMail: info@greisinger.de...
  • Page 17 Z31.0.XZ.6C-02 Operating Manual GTF 111-Ex... and GTF 112-Ex… page 17 of 17 _________________________________________________________________________________________________________________ GHM Messtechnik GmbH Hans-Sachs-Straße 26 Tel.: 09402 / 9383-0 http://www.greisinger.de Standort Greisinger D-93128 Regenstauf Fax: 09402 / 9383-33 eMail: info@greisinger.de...
