- Page 1 Cover for UMA 75/150T II...
- Page 2 Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
- Page 3 • Four mic/line inputs with screw terminals on each; two with XLR and two with dual RCA phono jacks • One dedicated 600 ohm transformer balanced paging input with screw terminals and rear panel screwdriver adjust level control • Two mute lines, providing internal signal override or external switch closure, with adjustable thresholds and indicators •...

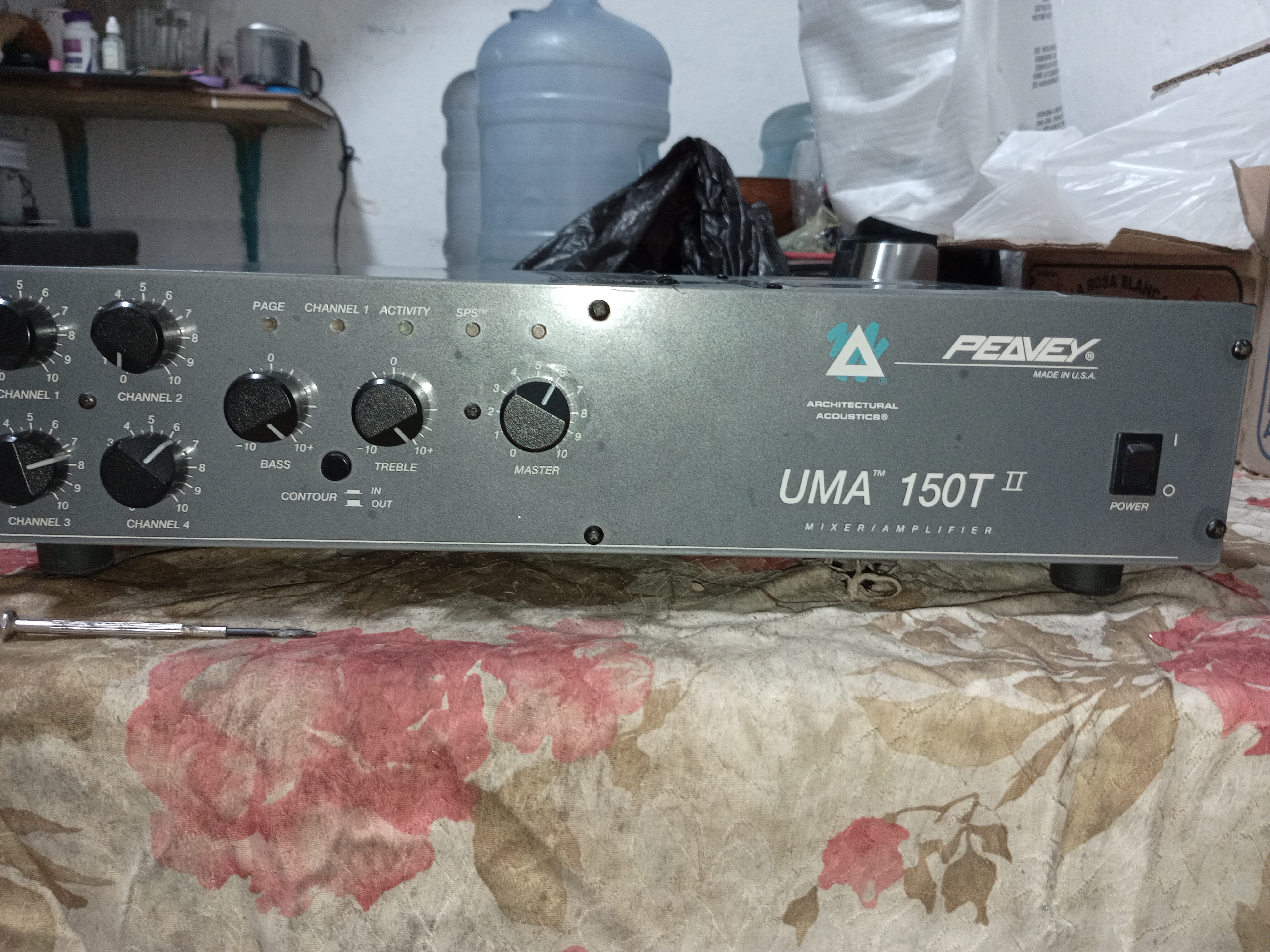

- Page 4 FRONT PANEL FEATURES CHANNEL 1 LEVEL CONTROL (1) Controls the signal level of the Channel 1 input. CHANNEL 2 LEVEL CONTROL (2) Controls the signal level of the Channel 2 input. CHANNEL 3 LEVEL CONTROL (3) Controls the signal level of the Channel 3 input. CHANNEL 4 LEVEL CONTROL (4) Controls the signal level of the Channel 4 input.
- Page 5 BACK PANEL FEATURES PAGE INPUT (15) The Page input is a 600 ohm transformer balanced input. The telephone page input should be connected to the + and - terminals; if a shielded cable is used, the shield should be connected to the terminal and not connected at the source.
- Page 6 Provides a line level output to drive external power amps, hearing assistance systems, or as a record output for taping. This output is after the EQ and Master Volume Control. LOOP IN/LOOP OUT JACKS (27) Functions as a preamp out/power amp in patch point. The Loop Out signal is a post EQ/Master Volume line level output. LINK SWITCH (28) Breaks the connection between the preamp and the power amp (Loop Out/Loop In).
- Page 7 20 Hz to 20 kHz 1.5 dB into 4 ohms at its direct output at 0.5% or less distortion with hum and noise at least 80 dB below rated output from line level inputs. The unit shall be called the Peavey Architectural Acous- tics Division model UMA™...
- Page 8 Output Power: (UMA 75T 75 watts Output Power: (UMA 150T 150 watts Frequency Response: Power Amplifier: Direct: 0.5 dB, 20 Hz to 20 kHz XFMR: 0.5 dB, 50 Hz to 20 kHz Preamplifier: 1.5 dB, 50 Hz to 20 kHz Distortion: Power Amplifier: 0.02% (1 kHz)
- Page 9 Flow Diagram...
-
Page 10: Wiring Diagrams
Wiring Diagrams Remote Volume 10 K Lin Taper Potentiometer Shielded Cable Figure 1 HIGH Z LOW Z HIGH Z INPUT High Z Input Connections Figure 2 HIGH Z LOW Z LOW Z BALANCED MIC Low Z, Balanced Microphone Input Connections Figure 3... - Page 11 To booster amplifier, etc. 1 V Balanced Output Connectors Figure 4 Balanced (1V/600 ) Figure 5 Balanced (1V/600 ) COM XFMR Jumper Installed 70V "Constant Voltage" Distribution System (Note: Jumper must be in place.) COM XFMR...
- Page 12 Balanced (1V/600 ) Direct Output to 4 Speaker Figure 6 Balanced (1V/600 ) – Direct Output to Multiple Speakers in Parallel. Total Impedance = 4 Figure 7 COM XFMR – COM XFMR –...
