Aspirator
A-1000S
This manual includes important information concerning the maintenance of
the functionality of the product and safety use.
Please read this manual carefully especially on
"Safety precautions" before use.
IMPORTANT
Please keep this instruction manual within easy reach of yourself whenever using the product.
Tokyo Rikakikai Co., Ltd.
Instruction
Manual
R00
Advertisement
Table of Contents
Summary of Contents for EYELA A-1000S
- Page 1 Instruction Aspirator Manual A-1000S This manual includes important information concerning the maintenance of the functionality of the product and safety use. Please read this manual carefully especially on “Safety precautions” before use. IMPORTANT Please keep this instruction manual within easy reach of yourself whenever using the product.
- Page 2 Safety precautions ・ 1. Signal word for warning Due to its function and characteristic, Therefore, this manual categorizes the a part of this product rotates rapidly level of importance and danger as below and suctions organic solvent. Contamination with alert mark and signal word. of foreign substance and insufficient Please follow the instructions and use drainage treatment may damage the product.
-
Page 3: Table Of Contents
Thank you for choosing the product of Introduction This instruction manual describes the procedure of setup, operation, troubleshooting, maintenance, check-up and disposal of Aspirator, A-1000S. Please read this manual carefully before use. Contents Operation Outline of the product 3-1 Preparation... -
Page 4: Outline Of The Product

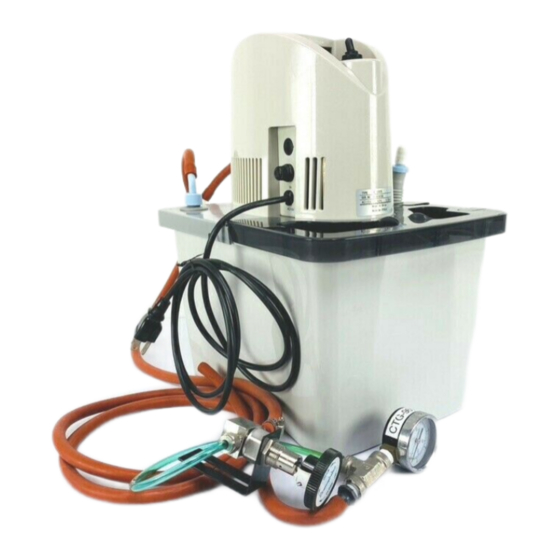

This product is a decompression device that decreases the pressure of condenser, such as rotary evaporator, test tube evaporator and centrifugal evaporator. 1-2 Specification Aspirator Product name Model A-1000S Maximum exhaust 16 / 19 L/min（50/60Hz） velocity Attainable vacuum Depends on saturated water vapor pressure... -
Page 5: Characteristic Of Water Vapor Pressure
1-3 Characteristic of water vapor pressure Water Water vapor pressure vapor pressure 〔kPa〕 〔mmHg〕 Water temperature〔℃〕 1-4 Attainable vacuum degree（reference） Water （mmHg） temperature ※ Attainable vacuum degree differs depending on 5℃ 0.93 （7） dissolved gas or impurity dissolving into water. 10℃... -
Page 6: Name Of Each Part
1-6 Name of each part Assembly drawing Power code Fuse holder （Only one fuse holder has 115V） Power code Cover for bath Bath Suction nozzle （2 points） Cap nut Cooling coil cap Over flow nozzle Feed water nozzle Main body Motor base Manifold F cheese... -
Page 7: Safety Function
1-7 Safety functions This product is equipped with safety functions as below. However, when trouble occurs, please refer to “Troubleshooting” on page 10 and follow the proper instructions. Safety functions Safety device Operation Reasons why safety device works Gets fuse blew and cuts off Fuse Excess current flows. -
Page 8: Utility Connection
（1）Check the voltage, phase and capacity of Capacity Voltage power source connecting to the product. AC115V Required power source is as shown on right A-1000S table. AC220V AC240V （2）Make sure of the type of outlet and plug mains connector. When connecting to power source, do not... -
Page 9: Vacuum Hose
Operation 3-1 Preparation CAUTION CAUTION When suctioning organic solvent, Make sure that no foreign use trap and do not let solvent substance such as dust is adhered in mix into the bath. the bath. If the organic solvent is dissolved into Pump and aspirator that are clogged with the water, attainable vacuum degree will be dust and cotton waste will worsen the... - Page 10 Decreasing pressure at 2 points simultaneously Stop cock ※ When releasing decompression at one Decompression container decompression container and sucking in air, air bubble will be sucked into the pump and attainable vacuum degree will be Decompression worsened. In this case, water may flow container upstream into other decompression container.
-
Page 11: How To Operate
3-2 How to operate CAUTION Stop using the product if it does not work properly. In case of trouble, release the decompression and turn off power switch immediately, and refer to “Troubleshooting”. （1）Turn on power switch. （2）When completing operation, turn off power Pump rotates and metal aspirator exhausts switch after releasing decompression. -
Page 12: Decompression Valve
3-4 How to operate options（cooling coil CCU and CCS） Cooling coil (1) Remove cover for bath from main body. Fit the lamp part of cooling coil into the edge of bath and set up cooling coil Metal part in the bath. Bath ※To get a rough guide, the point where cooling coil should be attached is about 4cm from the center of... - Page 13 (4) Setting up cover for bath Fit the slot of the cover into the pipe of Cover for bath cooling coil. Slot ※ When using the cover for bath without Cooling coil cutting about 1mm of clicks (model CCU), turn the cover along the curve of cooling coil, then fit the cover into bath.
-
Page 14: Troubleshooting
For the trouble that is not mentioned in this manual, Troubleshooting please consult your local dealer or closest customer service center. Cause of trouble S o l u t I o n T r o u b l e Mains connector is unplugged. Turn off the power switch and Or it is not plugged tightly. -
Page 15: Maintenance・Checkup
Please follow the instruction as below when disposing the product or parts. Major components and the method of disposing Weight Specification Component How to dispose External measurement Contact waster Main body 6.7kg 255(W)×361(D)×406 (H) mm A-1000S disposer. ※Dispose packing materials by separating each type of material. -
Page 16: After-Sale Service
After-sale service 1.When the machine does not work properly, 3. Repair work during guarantee period is check and see whether it has breakdown with available based on service warranty. referring to pages of “Troubleshooting.” 2.If you are sure that it has a breakdown, contact your local dealer or closest customer service center, which is mentioned on the manual.
