Giant Alarm System TX05K-TXC Manual

Features:

Wireless Outdoor Sensor:

— Wall Mount or Table Stand
— One Wireless temperature Sensor Included
— 433.92MHz RF transmitting frequency
— 60 meter transmission range in an open area
 Battery: 2 x LR03 AAA

Main Unit Appearance

Operation:

 Replace Wireless Outdoor Sensor battery compartment cover ,Open main unit battery
compartment cover ,Insert 2 x AAA batteries observing polarity [ "+" and "–" marks]
 Wireless Outdoor Sensor after electrify, 31 seconds automatically transmit one signal，At the
same time, the LED lights inside the product 1 times

Installation:

The remote sensor should be securely mounted onto a horizontal surface.
Note: Transmissions between receiver and transmitter can reach up to 60m in open area. Open
Area: there are no interfering obstacles such as buildings, trees, vehicles, high voltage lines, etc.

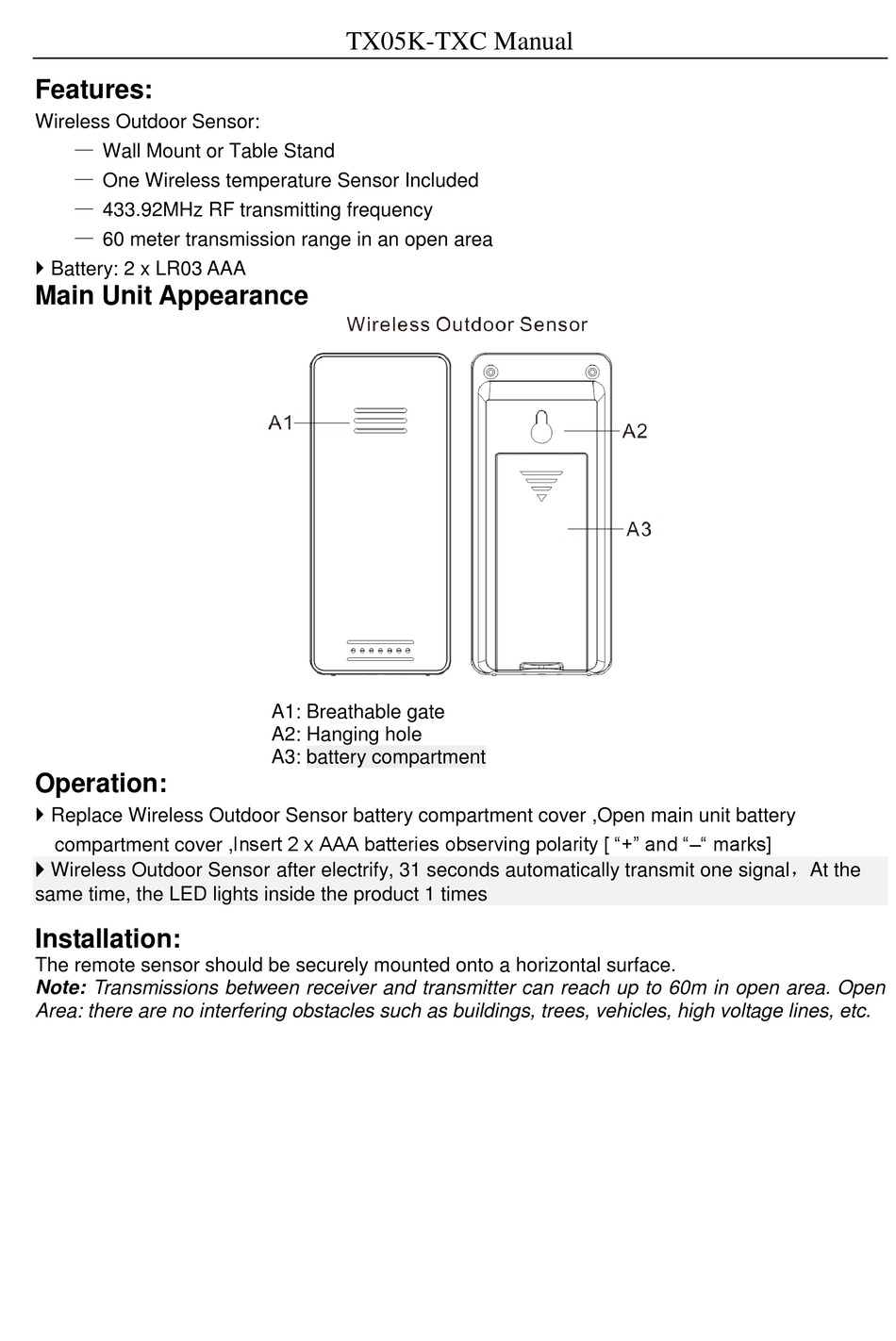

TX05K-TXC Manual
A1: Breathable gate
A2: Hanging hole
A3: battery compartment
