DESA INTERNATIONAL
For use on Fireplace models VMH26 Series, VMH10 Series, CGCF Series, CF26 Series, and FMH26 Series.
See the owner's manual supplied with your Fireplace for specific installation instructions.
Carton Contents
Description
Bracket
Thermodisc
Blower
Wire Harness
Power Cord
AUTO/OFF/ON switch
Mounting Hardware kit
Hardware kit contains
2 Plastic snap bushings
6 #10 screws
1 Plug button
If any of these pieces are missing or damaged, contact the dealer
where you purchased this kit or DESA International at 1-800-972-
7879 for referral information.
WARNING: Fan accessory must be grounded.
Fan comes with a three-prong, grounding plug as
shown in Figure 1. The plug is your protection against
electrical shock. Plug it into a standard, three-hole,
grounded, outlet. If cord needs replacing, use only a
cord with a three-prong, grounding plug.
NOTICE: Cord length from switch plate assembly to
plug is six feet. Make sure grounded outlet is an
appropriate distance from unit.
Grounded Outlet
Figure 1 - Grounding Plug
WARNING: Failure to connect all wires as indi-
cated may cause electrical shock or personal injury.

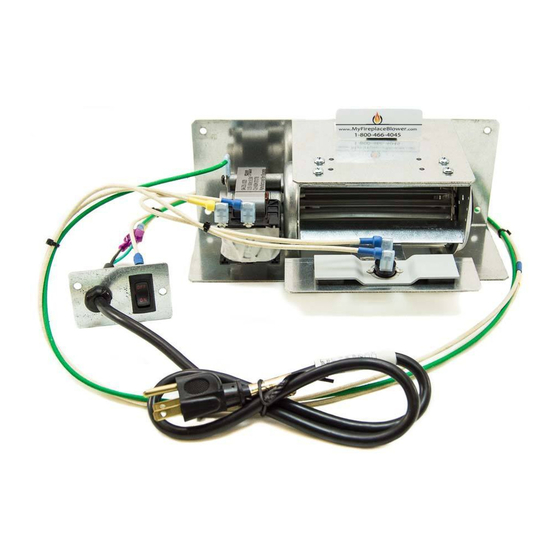

GA3400T / GA3450T
Thermostat Blower Accessory
Part Number
103966-01
103972-01
103283-01
103968-01
104015-01
099998-01
098418-08
Grounding Plug
REMOVING UPPER LOUVER ASSEMBLY
(For all models except CF26 Series)
To install the blower accessory, you must first remove the upper
louver assembly, hood, and branch support.
1. Lift screen off heater and remove log set.
2. If you have extruded louvers, remove 4 screws from louver
assembly (see Figure 2). If you have sheet metal louver, re-
move 2 screws from louver assembly and 4 screws from hood
(if installed) (see Figure 3). Save these screws.
3.
Pull louver assembly straight out from the cabinet. Be careful not
to scratch the paint. Set louver assembly, hood and screws aside.
4. Remove 2 screws from each side of branch support and pull
branch support out (see Figure 2).
Blower Bracket Mounting Holes
Figure 2 - Removing Upper Extruded Louver Assembly and
Branch Support
Blower Bracket
Mounting Holes
Figure 3 - Removing Hood and Upper Sheet Metal Louver
Assembly
Upper Louver
Assembly
Branch Support
Upper Louver
Assembly
Hood
Continued
