Summary of Contents for Mactech HFG 50

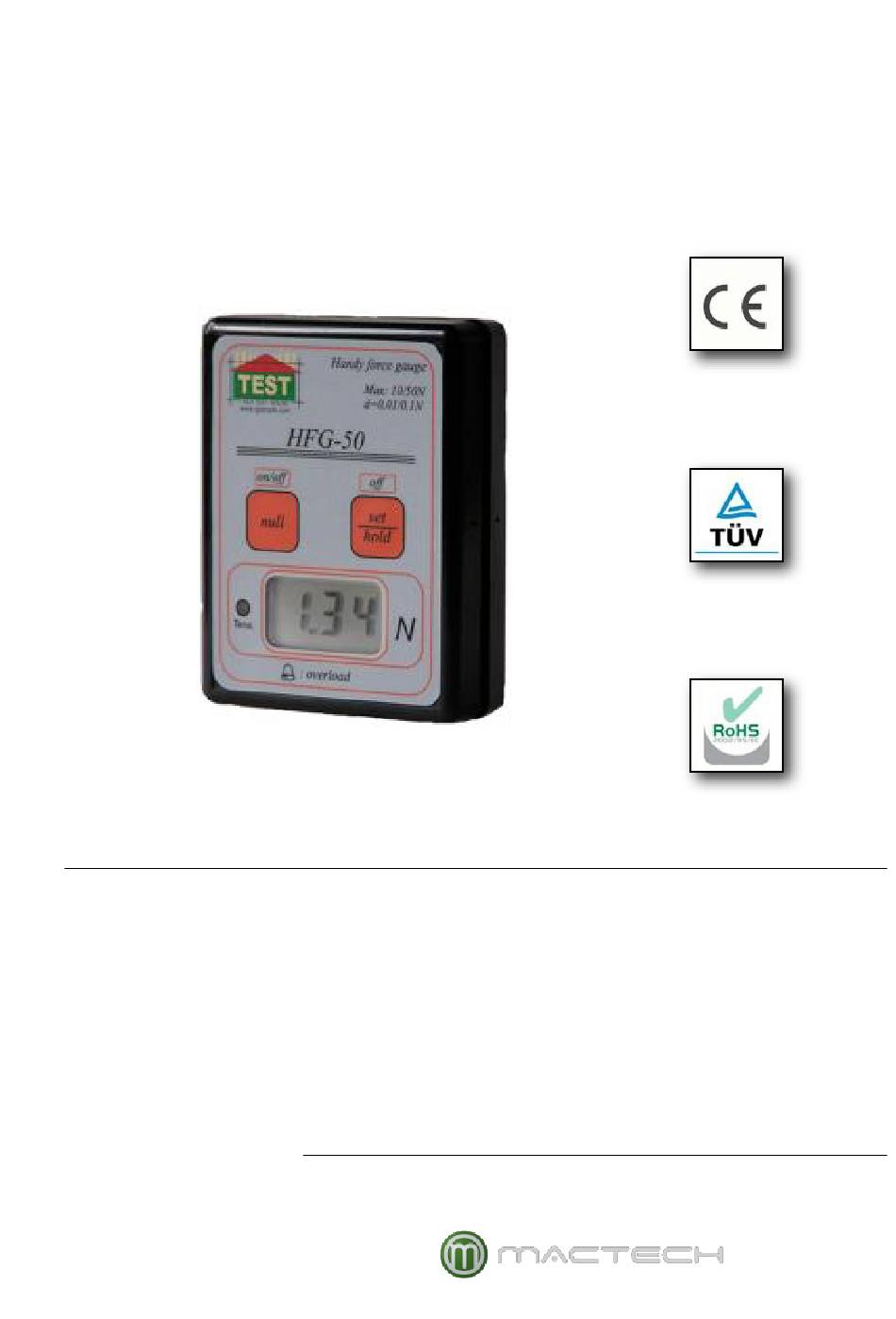

- Page 1 Handheld Force Gauge User Manual … enter to new dimensions!

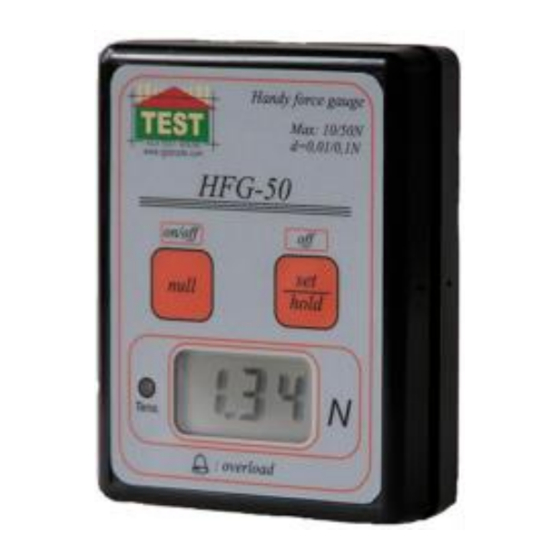

- Page 2 User Manual - HFG 50 HANDHELD FORCE GAUGE Type: HFG-50 The HFG-50 50N capacity Handy Force Gauge is an accurate, high-quality instrument, it was developed for simple and accurate measurement of contact compression force on test probes kept in hand or mounted on a support. It is also suitable for tension force measuring.
- Page 3 User Manual - HFG 50 mactech@mactech.eu www.mactech.eu Technical Data Measuring range 0-50 N Display resolution 0-9.99 N, (0.01 N steps) 10.0-50.0 N (0.1 N steps) Accuracy 0.2 % of full scale Temperature dependence 0.05%/10 Operating temperature C to 50 Safe overload capacity w/o damage...
- Page 4 User Manual - HFG 50 mactech@mactech.eu www.mactech.eu Operation: Switch on: press the null key for 1 second, Cont will be displayed. Press null key for 2 seconds, and the instrument will be in continuous measuring mode. Press the null key for zeroing the display, then 0.00N will be displayed and start measuring.
- Page 5 User Manual - HFG 50 mactech@mactech.eu www.mactech.eu Calibration: Recommended time interval: 1 year, with a recognized calibration laboratory. Maintenance, warranty: The HFG-50 requires no maintenance or regular electric control. We offer a 12 month guarantee should the instrument fail under proper use. The guarantee is not valid if the failure is caused by improper use, transport or storing, or by improper design of the connecting mechanical devices.
