Supplementary instructions
to the Operating Instructions eco-CONTROL EC200-K (B)
1. Use

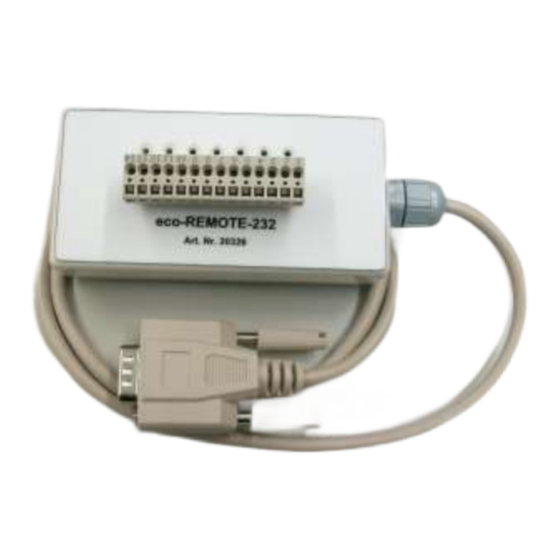

eco-Remote is an interface between the eco-Control EC200-K (B) control system and an external
controller (e.g. a PLC). It allows the activation of the dosing programs that are on the memory card of the
control system.
2. Operation
When input 5 is energized, the program number (0 to 24) resulting from the signal values at inputs 0 to 4
is transmitted to the control system. This program is now activated on the control system. The front
keypad is disabled while input 5 remains energized. Initialization is caused by an electrical signal at the
control system.
3. Connecting eco-Remote
Plug the connector (RS232) into the control system which must be switched off. Make the power supply
and connections at the terminal block (15) (see 5. terminal block / signal values).
Copyright ©

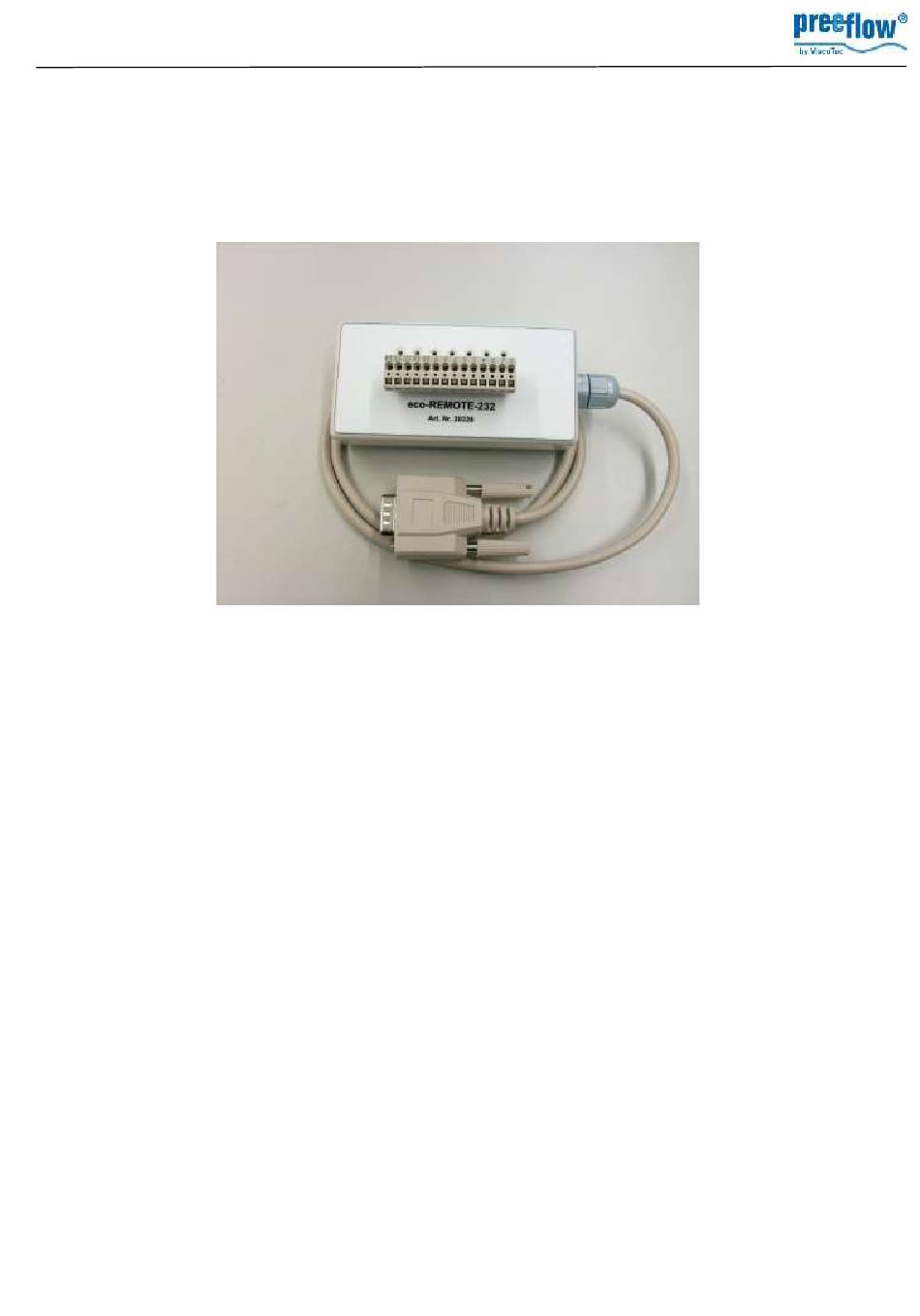

eco-REMOTE
- Page 1 -
Version 1.12
Advertisement
Summary of Contents for Preeflow eco-REMOTE
- Page 1 Operating Instructions eco-CONTROL EC200-K (B) eco-REMOTE 1. Use eco-Remote is an interface between the eco-Control EC200-K (B) control system and an external controller (e.g. a PLC). It allows the activation of the dosing programs that are on the memory card of the control system.
- Page 2 It’s not allowed to set input 5 (terminal 13) on high level during Switch on of the eco-Control. The LED next to terminals 1 + 2 will flash during startup of the eco-Remote. The connection with the control system is established after approx. 15 seconds and the LED lights up.
- Page 3 Supplementary instructions to the Operating Instructions eco-CONTROL EC200-K (B) 5. Terminal Block / Signal Values Table 2: Assignment of inputs 0 to 4 Table 3: Terminal block Input Program number 0 1 2 3 4 A +24V 0 0 0 0 0 K GND 1 0 0 0 0 0 1 0 0 0...
- Page 4 Supplementary instructions to the Operating Instructions eco-CONTROL EC200-K (B) 6. Signal forms and levels 7. Signal sequence, logic 1. Energise inputs 0-4 on the terminal block (dosing program number). The above example shows address 10101 = program number 21. 2. Energize input 5 on the terminal block. Now, the dosing program defined by the level on inputs 0-4 will be activated, the dosing program (see 1.) Please note, that between the last level change on inputs 0-4 and the energizing of input 5 (level change from low to high) there should be a delay of at least 10ms.
- Page 5 Input 5 (terminals 13/14) on high level during startup of eco-Control „R“ + program number is shown on Input 5 of eco-Remote on low level or left open display but disappears Eco-Control is in Remote-mode („R“ shown in left...
