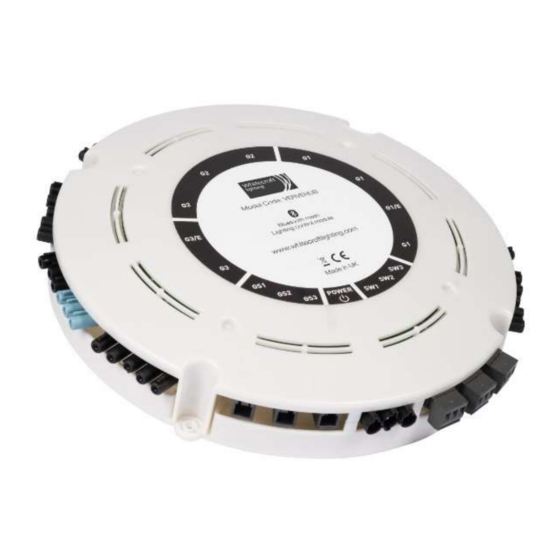

Flexible and simple bluetooth mesh networking lighting control

Advertisement

Quick Links

GENERAL INFORMATION

1) A qualified electrician, in accordance with IEE wiring regulations should carry out connection
to mains wiring.
2) Ensure that the rated voltage and frequency requirements are compatible with the available
mains supply.
3) Do not carry out high voltage insulation test, i.e. 500/1000v this may damage internal
components.

SPECIFICATION

9 Port LCM (3 separate groups)
3 Switch Inputs (latching or retractive switches)
3 Sensor Inputs (occupancy, absence, presence & constant lux control)
2 x DALI modes - DALI auto addressing (Broadcast) / DALI Addressable (individual addressing)
Integral emergency testing and reporting (via smart device app or switch input)
Corridor Linking
Bluetooth 4.2 networking Auto discoverable; password security.
Bluetooth programming via free app (Android & iOS)

TECHNICAL DATA

Operating Temperature: 0°C to +40°C
Mains supply: 230Vac +/- 10%; 50Hz
Mains input: Male socket for Wieland GST18i3 (Black) female connection
Maximum output per LCM: 6.3A (internally fused) (1450W or 160W per port)
Isolation: 4kV between mains and sensors control
Inrush current: 1s time delay between group outputs at power-up
In-rush current rating of relays: 6.3A
Output connections:
Wieland GST18i6 (Blue / Black) x 2
o
GST18i5 (Blue) x 7
o
Maximum DALI dimming load: 100mA (or 16 DALI devices)
Sensor inputs: RJ11 connection for 3 sensors (VERVERECPIR / VERVESURPIR)
Sensor supply: 12Vdc +/- 5%, 30mA
Switch inputs: 3 pole 5mm pitch plug (0.5 to 2.5mm²)
Switch input cable: max. 10m; segregated from mains
Max distance between hubs: 8m
Max no of hubs: 20 per cluster; multiple clusters
PC/ABS housing
Dimensions: 250mm() x 47.5mm(h)
Verve
VERVE
Whitecroft Lighting Limited
Burlington Street, Ashton-under-Lyne, Lancashire OL7 0AX
Telephone +44 (0)870 5 087 087
Facsimile: +44 (0)870 5 084 210
www.whitecroftlighting.com
Registered No. 3848973 England
MAY 2021 – Rev 7
As above
Registered Office:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verve and is the answer not in the manual?

Questions and answers

Summary of Contents for WHITECROFT LIGHTING Verve

  • Page 1 Switch input cable: max. 10m; segregated from mains  Max distance between hubs: 8m MAY 2021 – Rev 7  Max no of hubs: 20 per cluster; multiple clusters Whitecroft Lighting Limited  PC/ABS housing Burlington Street, Ashton-under-Lyne, Lancashire OL7 0AX  Dimensions: 250mm() x 47.5mm(h)
  • Page 2 Mechanical Installation: The Verve is designed for surface and drop-rod installation. All mountings are located on the outside of the enclosure to reduce installation time. Four M4 mounts are provided at the base of the enclosure for surface mounting. Drilling out the inner rings of the supports will allow for M8 drop rod mounting to be used.
  • Page 3 Emergency-enabled Luminaire ports: Material range reduction Da- Da+ Em N E L The two emergency ports (G1/E&G3/E) require 6 pole Wieland • Wood, plaster, glass uncoated, without metal 0 - 10% GST18i6 male plugs to connect to the load. • Brick, press board 5 - 35% At minimum live, neutral, earth and the fourth pin (Em) should be •...
