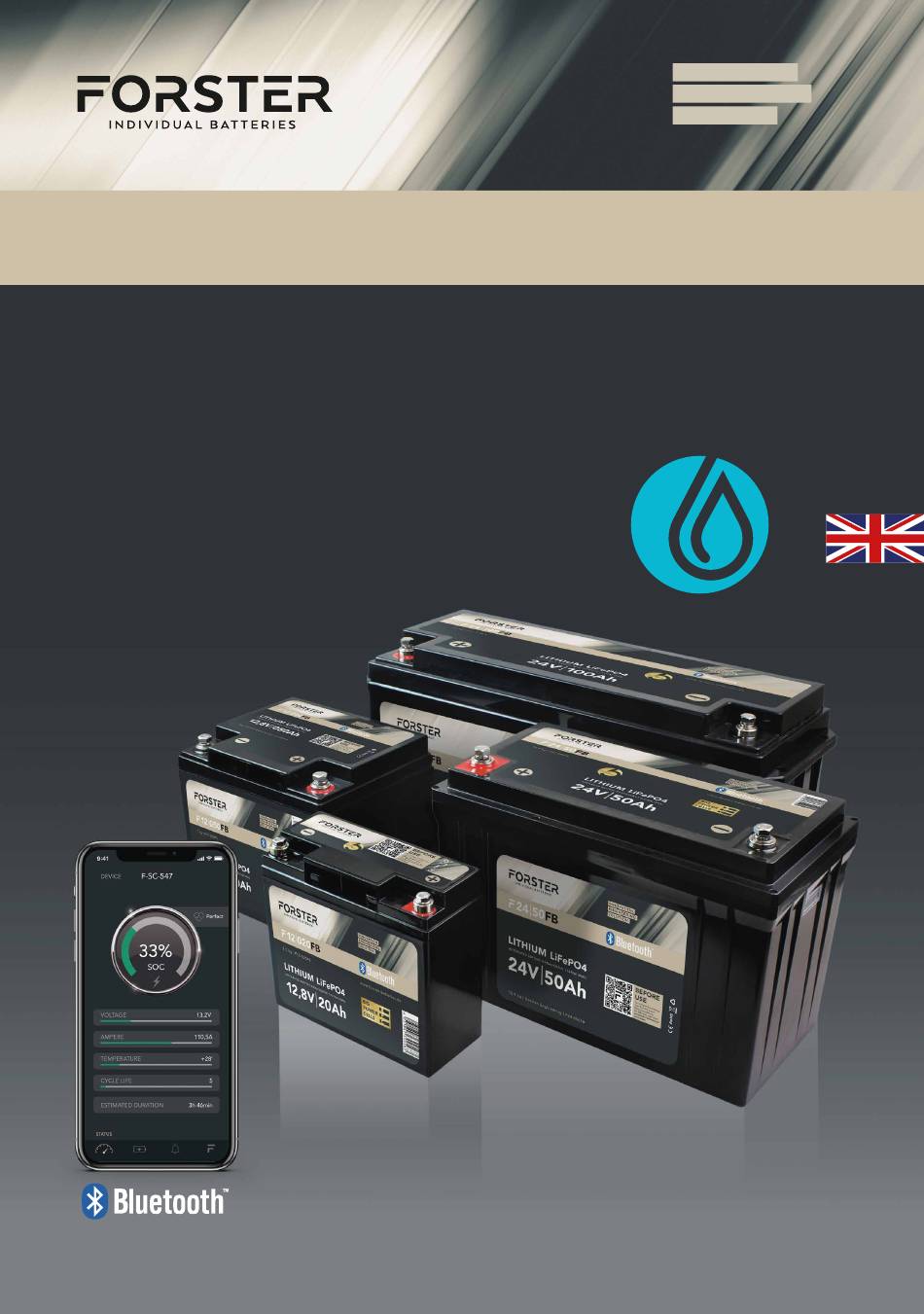

- Page 1 INNOVATION. ENGINEERING. SOLUTION. LITHIUM FB-SERIE FISHING OPERATING INSTRUCTIONS F12-020FB F12-050FB F12-100FB I P 6 7 WATERPROOF F24-050FB F24-100FB F36-100FB W W W. F O R S T E R - B AT T E R I E S . D E...
- Page 2 BAT TER IE S FOR FI S H I N G Thanks to their special cell technology, FORSTER batteries can neither burn nor explode! This guarantees absolute safety!
- Page 3 OPERATING INSTRUCTIONS F12-020FB F12-050FB F12-100FB F24-050FB F24-100FB F36-100FB...
- Page 4 FISHING SERIES DATA / ORDER NO.: F12-020FB F12-050FB 4251847300563 4251847300570 Capacity 20Ah 50Ah Replaces lead-gel-AGM battery 12V/40Ah 12V/100Ah Nominal voltage 12.8V 12.8V Energy content 256Wh 640Wh Operating voltage 11.0V - 14.6V Application in shunt circuit yes, max. 4 pieces of the same type possible Application in serial connection yes, 24V, 36V and a maximum of 48V can be operated serially! Cell technology...
- Page 5 F12-100FB F24-050FB F24-100FB F36-100FB 4251847300051 4251847300594 4251847300600 4251847300617 100Ah 50Ah 100Ah 100Ah 12V/200Ah 24V/100Ah 24V/200Ah 36V/200Ah 12.8V 25.6V 25.6V 38.4V 1280Wh 1280Wh 2560Wh 3840Wh 22.0V - 29.2V 33.0V - 43.8V yes, max. 4 pieces of the same type possible yes, max. 48V Lithium LiFePO4 PPC Prismatic-Power cells CCCV / IU / IUoU / lead-acid...
-
Page 6: General Product Information
GENERAL PRODUCT INFORMATION The lithium iron phosphate battery (LiFePO4) is the safest battery in the lithium-ion battery family. It is highly current resistant, universally applicable and has a low weight compared to lead, gel or AGM batteries. In addition, the latest lithium iron technology offers a high degree of intrinsic safety, eliminating the risk of explosion even under the most extreme conditions. -
Page 7: Bluetooth Function
The lithium batteries are up to 75% lighter, resulting in enormous weight savings. Double capacity = same space = half the weight BLUETOOTH FUNCTION For easy monitoring of the FORSTER FB series battery, we offer a Bluetooth function with a free FORSTER Smart Connect app. COLD RESISTANCE The extended cold resistance of the FORSTER X-series allows the batteries to operate at temperatures as low as -20°C. -
Page 8: Battery Management System (Bms)
BATTERY MANAGEMENT SYSTEM (BMS) A battery management system monitors and controls the individual cells of a battery and protects them from damage. Key features of a battery management system: OVERLOAD PROTECTION: The BMS switches off the battery outputs in case of overload to protect the cells. At this point, the battery has no voltage;... - Page 9 BATTERY MANAGEMENT SYSTEM (BMS) FORSTER standard lithium batteries have a standard BMS with all key control and charging functions built in. To protect the battery cells, the BMS developed by FORSTER automatically takes over the following functions: • Overload protection •...
- Page 10 The superior performance of Forster batteries results from the use of Prismatic Power Cells. In contrast to conventional batteries consisting of many small interconnected cells, FORSTER relies on a small number of larger battery cells. The minus in complexity brings a plus in performance, service life and safety.
-
Page 11: General Information
All information available in the battery, such as state of charge, incoming and outgoing current, voltage and temperature, is transmitted in real time via the Bluetooth transmitter. The FORSTER app can be used to visualise the parameters. Even the smallest FORSTER battery is equipped with this modern radio moni- toring system. - Page 12 • The app only supports one-to-one mode. (Bluetooth hardware function) • The app only works for FORSTER lithium batteries, phone / tablet. Another device cannot be connected. • Please make sure the battery has enough power and is running normally.
-
Page 13: Safety Guidelines
SAFETY GUIDELINES Please follow these instructions and keep them within easy reach of the LiFePO4 battery for future reference. Work on the LiFePO4 battery should only be carried out by qualified personnel. While working on the LiFePO4 battery, please wear protective goggles and clothing. If material from an opened battery, such as electrolyte or powder, comes into contact with the skin or eyes, it must be rinsed off immediately with plenty of water. -
Page 14: Transport Instructions
TRANSPORT INSTRUCTIONS The battery is tested in accordance with the UN Manual of Tests and Criteria, Part III, Subsection 38.3 (ST/SG/AC.10/11/Version 5). For transport, the batteries belong to category UN3480, Class 9, Packaging Group II and during transport these regulations must be complied with. This means that they must be packaged for transport by road, rail and sea (ADR, RID &... -
Page 15: Installation
INSTALLATION • Never use a damaged battery! • Make sure that you have the right polarity when connecting! • Ensure that the battery is securely fastened! • Use pole grease on the pole connections! • Make sure that the cable is thick enough! •... - Page 16 12V PARALLEL CONNECTION OF SEVERAL BATTERIES: Any number of FORSTER batteries of the same brand, type, age, capacity and state of charge can be connected in parallel to increase capacity. Make sure that the connection is correct because of the uniform load...
- Page 17 24V / 36V / 48V SERIAL CONNECTION OF SEVERAL BATTERIES: A maximum of 4 batteries (48V) of the same brand, type, age, capacity and state of charge can be connec- ted in parallel in series to increase the output voltage. Make sure that the connection is correct because of the uniform load distribution! Each individual battery must be fully charged in advance before the...
- Page 18 ATTENTION! Disconnect the charger if it is not used for a longer period of time! ATTENTION! Only use LiFePO4 chargers approved or released by FORSTER to ensure the service life of your battery! ATTENTION! Charge your LiFePO4 battery at a low state of charge of approx. 20% or after a shutdown due to...
- Page 19 CHARGER CONNECTION DIAGRAM 12V / 24V OR 36V CONNECTION, SINGLE BATTERY (–) Minus LADE- 12V/24V/36V 12V/24V/36V REGLER LiFePO4 LOAD CHARGE CONTROLLER (+) Plus 12V / 24V OR 36V CONNECTION OF SEVERAL BATTERIES IN PARALLEL (–) Minus 12V/24V/36V 12V/24V/36V LiFePO4 LOAD CHARGE CONTROLLER (+) Plus...
- Page 20 36V CONNECTION / 3 BATTERIES IN SERIES (–) Minus LiFePO4 CHARGE (+) Plus CONTROLLER ATTENTION! (–) Minus LiFePO4 LOAD No 36V charger can be CHARGE (+) Plus CONTROLLER used! The batteries connected in series must each be (–) Minus charged individually with LiFePO4 a 12V charger! CHARGE...
-
Page 21: Charging Current
Although a lower charging current increases the service life of your battery, the high number of cycles alone means that it already lasts 7 times longer than your conventional battery using the old technology. Example: 100Ah FORSTER lithium battery ... - Page 22 CHARGING LIFEPO4 BATTERIES CORRECTLY CHARGER Preferably choose a LiFePO4 battery charger with CC-CV charging method to charge your battery. Please note that not every LiFePO4 charger is suitable for use in a camper van! CHARGING PROGRAMME Chargers with different charging programmes must be set to "LiFe". If "LiFe" or Lithium cannot be set, the programmes listed below can be used.
- Page 23 SETTING AID Not all settings apply to your devices. The list is an overview from which you can select the values relevant to you. OPTIMISED CHARGING AND SHUNT SETTINGS FORSTER INDIVIDUAL BATTERIES ideal optional Battery type/charging programme/ LiFePO4 Lead-acid charge setting...
-
Page 24: Charging Overview
LiFePO4 charger is suitable for use in a camper van! BALANCING CELLS Your FORSTER LiFePO4 Battery has a built-in battery management system with an active balancing function. This function balances the four cells connected in series to an equal voltage level at all times. -
Page 25: Specifications
SPECIFICATIONS FORSTER Individual Batteries Cell type Big-Capacity PrismaticCells (BCC) Application Marine, fishing, caravan, solar, installations yes, any number of the same type possible Parallel connection application Series connection application yes, 24V, 36V and maximum 48V possible Service life ≥10 years ≥5000... -
Page 26: Winter Storage
Regularly check your connection cables and contacts for tight fit, deformation, cracks or damage! Check the battery housing for damage. A damaged battery must not be charged and must be checked by FORSTER Individual Batteries! If the running or charging time changes greatly in relation to the new condition, the battery should be... -
Page 27: Guarantee, Warranty
Batteries grants the legal warranty for production and material defects that were present at the time of delivery of the product. FORSTER Individual Batteries is not liable for typical signs of wear and tear. The warranty does not apply to defects that are due to natural wear and tear, improper use or lack of maintenance. - Page 28 Should products give rise to complaints, we apologise for this. Please make sure that the fault is not due to an application or setting error before returning the product. You are welcome to send us an e-mail in advance at info@forster-batteries.de with a description of the fault and, ideally, a picture of the problem.
- Page 29 Furthermore, you must provide the name and address of the seller if this is not clear from the enclosed copy of the invoice. All components replaced under warranty become the property of FORSTER Individual Batteries GmbH when the warranty service is rendered.
-
Page 30: Warranty Terms
WARRANTY 3-5 YEAR MANUFACTURER'S WARRANTY FORSTER Individual Batteries GmbH grants a 3-5-year warranty on the goods advertised with the warranty promise from the date of purchase 15 January 2021. The period for calculating the warranty period begins with the invoice date. The warranty period is not extended due to the provisi- on of services under this warranty, in particular not in the case of replacement or repair. -
Page 31: Certificate Of Conformity
The following product has been testet with the listing standards and found in conformity with the EU Directive 2014/30/EU. It is possible to use CE marking to demonstrate the conformity with this EMC Directive. FORSTER Individual Batteries GmbH APPLICANT: Gewerbestr.11 / 85652 Pliening / Germany... -
Page 32: Year Warranty
YEAR YEAR WARRANTY WARRANTY F O R S T E R I n d i v i d u a l B a t t e r i e s G m b H G e w e r b e s t r. 1 1 8 5 6 5 2 P l i e n i n g Te l .
