Summary of Contents for LIM PressioLIM

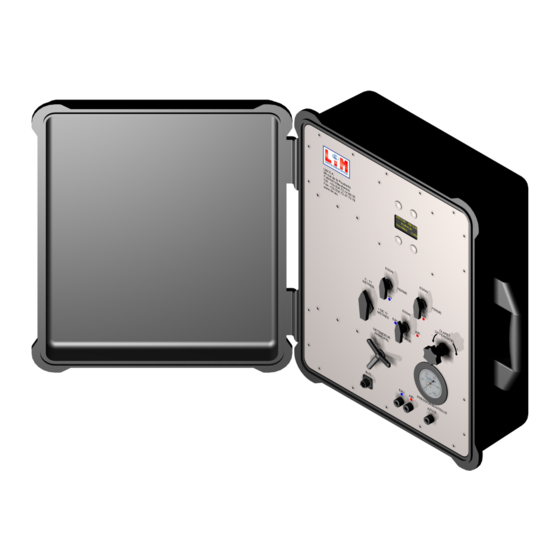

- Page 1 PressioLIM USER MANUAL PRESSURE/VOLUME/CONTROLLER (PVC) WIITH DIGITAL DISPLAY FOR L.MENARD PRESSUREMETER TESTS Projet : PressioLIM Creation : 03/08/2022 Page 1 Upgrade : 03/08/2022 User Manual Author : Pierre de Groulard Documentation...
- Page 2 VAT : 30 387 820 459 00015 After Sales: LIM SAS 86, rue Jean Bertin F-69100 VILLEURBANNE Tel : +33 472.14.68.32 / 31 E-mail : support@lim.eu Projet : PressioLIM Creation : 03/08/2022 Page 2 Upgrade : 03/08/2022 User Manual Author : Pierre de Groulard Documentation...
-
Page 3: Table Of Contents
Table of contents 1 GENERAL PRESENTATION..................4 1.1 Introduction.......................4 1.2 Reminder on the pressuremeter test................4 1.3 Main technical characteristics..................4 1.4 Displayed parameters....................4 2 USING The PressioLIM....................5 2.1 Nomenclature......................5 2.2 On Off........................5 2.3 Functions........................6 2.4 Displays, menus, and submenus................7 2.4.1 Home menu.......................7 2.4.2 Main menu......................7... -
Page 4: General Presentation
Menard pressuremeter parameters. It belongs to the 5 generation of devices developped by LIM SAS. The PressioLIM uses the most advanced technologies and as such, gives you the benefit of remarkable ease of use and very high reliability. It has the following possibilities and characteristics: Display of the pressure and volume parameters required to perform the •... -
Page 5: Using The Pressiolim
2 USING The PressioLIM Nomenclature Designation Push button BP0 Push button BP1 Push button BP2 Push button BP3 128 x 64 OLED screen Water test valve Air test valve Depth selector Purge valve 10 Air water balancing valve 11 Main regulator... -
Page 6: Functions
Stopping the pressuremeter test, and displaying the results. Validation of the parameter and return to the previous menu. Parameter increase. Volume zeroing. Cancels the offset on the volume, only possible outside of a test. Projet : PressioLIM Creation : 03/08/2022 Page 6 Upgrade : 03/08/2022 User Manual... -
Page 7: Displays, Menus, And Submenus
Menu selection. 2.4.3 Inclination menu Allows the PressioLIM to be leveled to optimize volume measurement. The PressioLIM is level when the cross (+) is in the center of the circle. Projet : PressioLIM Creation : 03/08/2022 Page 7 Upgrade : 03/08/2022... -
Page 8: Acquisition Menu
20 cm3. Beyond that, the operator must adjust the water level of the column so that the volume approaches zero. The volume indicates 2 cm3. The volume now shows 0 cm3. Projet : PressioLIM Creation : 03/08/2022 Page 8 Upgrade : 03/08/2022... -
Page 9: Test Results Display
• Start test: A test lasts 60 sec, the PressioLIM records the pressures and the volume at 1, 15, 30 and 60 seconds. The progress bar at the top of the screen provides information on the progress of the test. -
Page 10: Volume Menu
Validation of the sensor and return to the Volume menu. 2.4.8 Volume Calibration submenu Memorizes voltage. Voltage increase. Voltage decrease. Validation of the voltage and return to the Volume menu Projet : PressioLIM Creation : 03/08/2022 Page 10 Upgrade : 03/08/2022 User Manual Author : Pierre de Groulard Documentation... -
Page 11: Pressure Menu
Scale decrease. Validation of the scale and return to the Pressure menu. Note The PressioLIM is only fitted with 100 bar sensors. 2.4.11 Pressure sensor offset submenu It is possible that the pressure sensors have a residual pressure when empty, which is why it is necessary to adjust the offsets. -
Page 12: Volume Calibration
Store the sensor voltage as a voltage reference at 100cm3, by pressing SET. • Validate OK. • Note This setting is made at the factory, it is not necessary to redo it. Projet : PressioLIM Creation : 03/08/2022 Page 12 Upgrade : 03/08/2022 User Manual Author : Pierre de Groulard... -
Page 13: Connecting The Lim Recorder
Connecting the LIM recorder Connect the LIM recorder with the CAN cable to the CAN BUS socket ( REF 13 ). • Switch on the PressioLIM. • Make sure that the LIM recorder detects the PressioLIM. • With a 5 or 6th generation recorder, it is not necessary to perform the calibration.
