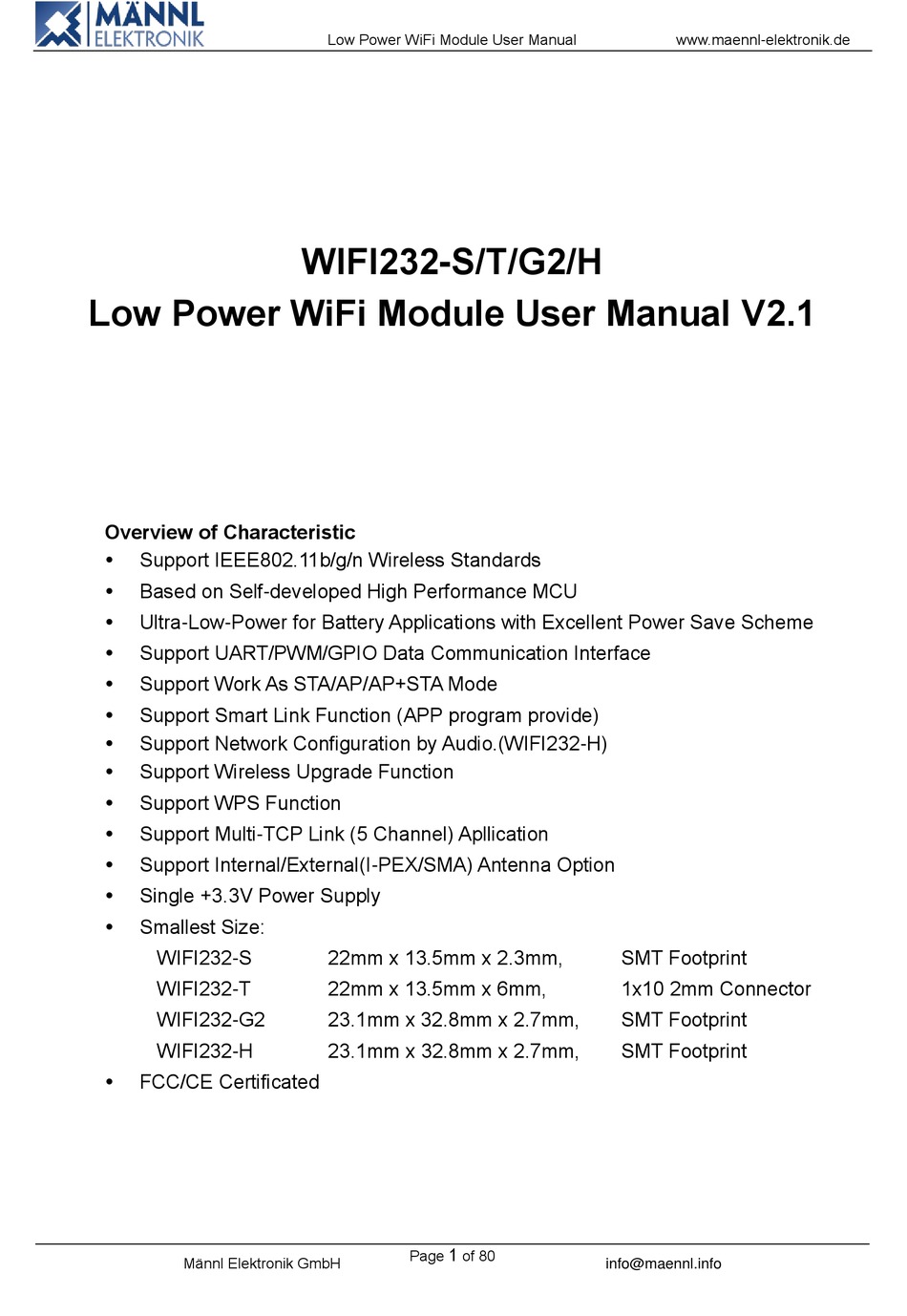

Low Power WiFi Module User Manual V2.1
Overview of Characteristic
Support IEEE802.11b/g/n Wireless Standards
Based on Self-developed High Performance MCU
Ultra-Low-Power for Battery Applications with Excellent Power Save Scheme
Support UART/PWM/GPIO Data Communication Interface
Support Work As STA/AP/AP+STA Mode
Support Smart Link Function (APP program provide)
Support Network Configuration by Audio.(WIFI232-H)
Support Wireless Upgrade Function
Support WPS Function
Support Multi-TCP Link (5 Channel) Apllication
Support Internal/External(I-PEX/SMA) Antenna Option
Single +3.3V Power Supply
Smallest Size:
WIFI232-S
WIFI232-T
WIFI232-G2
WIFI232-H
FCC/CE Certificated
Männl Elektronik GmbH
Low Power WiFi Module User Manual
WIFI232-S/T/G2/H
22mm x 13.5mm x 2.3mm,
22mm x 13.5mm x 6mm,
23.1mm x 32.8mm x 2.7mm,
23.1mm x 32.8mm x 2.7mm,
1
Page
of 80
www.maennl-elektronik.de
SMT Footprint
1x10 2mm Connector
SMT Footprint
SMT Footprint
