Originaluser manual
Warmhalte- and
Fort hotplates
from – Built 2016
the instructions for use and assembly
read
|
www.induktion.de
Version 1.8
Advertisement
Table of Contents
Related Manuals for Berner BAWH1
Summary of Contents for Berner BAWH1

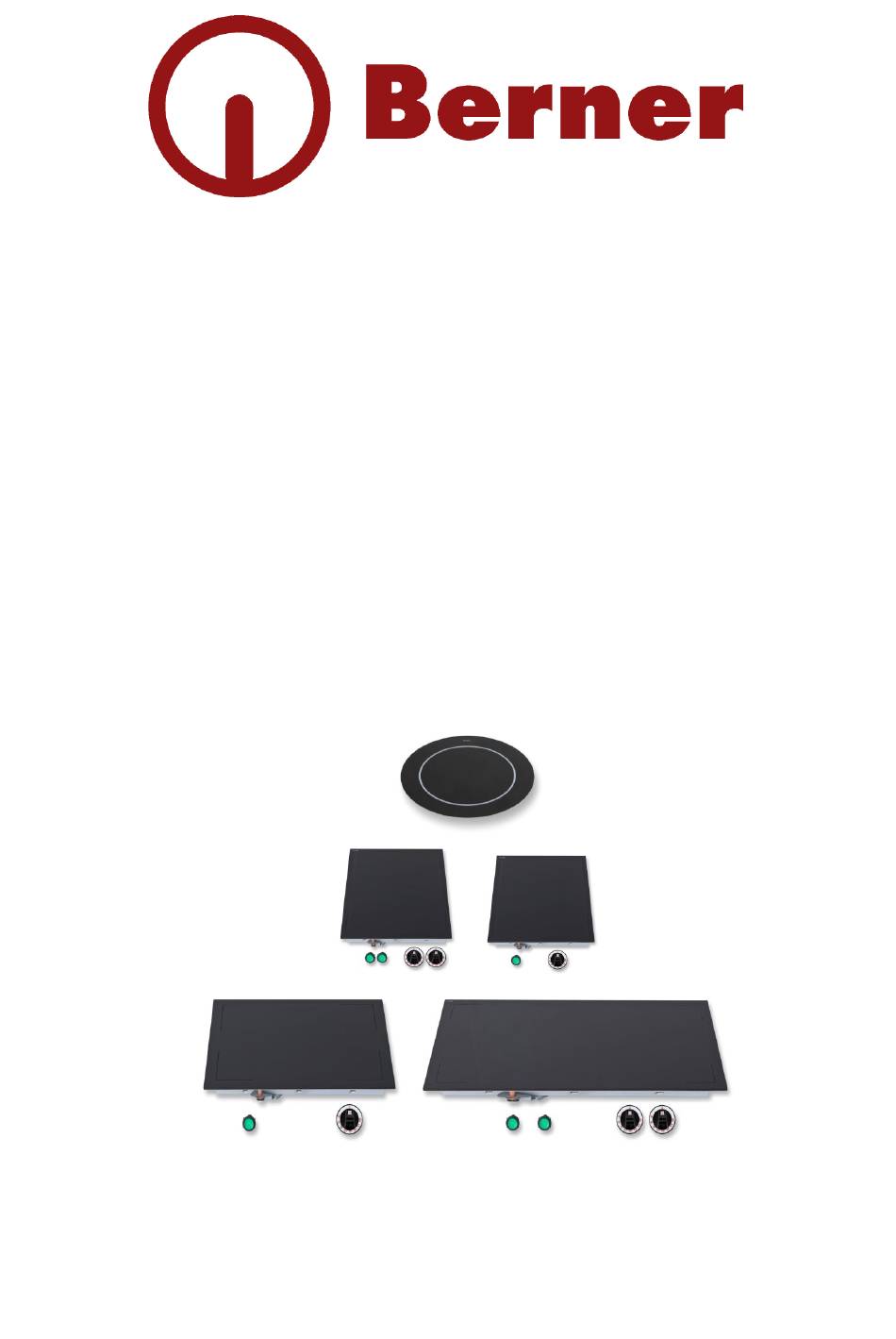

- Page 1 Berner- Kochsysteme GmbH & Co. KG Sudetenstrasse 5 - D-87471 Durach, Germany Phone +49 (0) 831/697247-0; fax. - 15 email: Berner@induktion.de www.induktion.de Originaluser manual Built-in, stand and table- Warmhalte- and Fort hotplates from – Built 2016 Be sure to the instructions for use and assembly read before installation –...
-
Page 2: Table Of Contents
General ............................ 6 application ..........................6 Product ............................ 6 Table-on devices: BAWH1, BAWH1S, BAWH2, BAWH2S, BAWH3, BAWH3S ........6 System 60/20: BTHKTT, BTHFKTT ................... 6 System 70: BHTHKTD, BHTHFKTD, BTHKTD, BTHFKTD .............. 6 Built-in devices: WH1KL, WH1K, WH1KS, WH1L, WH1, WH1S, WH2L, WH2, WH3L, WH3, WH35L, WH35, WH56L, WH56, WH60L, WH60, WH4, WH4S, WH5, WH5S, WH6, WH6S, WHF56, WHF60, WH1RL, WH1R, WHW, WHWFW .................... - Page 3 Repair during the warranty period ..................13 technical documentation ...................... 13 maintenance ........................... 14 disposal ..........................14 17.07.2014 side 2 © Bern cooking systems 2016...
-
Page 4: Safety
Safety Read this guide carefully. Keep the instructions for use and assembly for later use or for subsequent owners. Check the device after unpacking. Do not connect in case of transport damage. Record the damage in writing and call the customer service, otherwise the warranty claim is waived. -
Page 5: Safety Regulations
Safety regulations Description of hazard symbols General danger symbol Failure to comply with safety regulations means danger ( injuries ) This symbol warns of dangerous tension. (Symbol 5036 of IEC 60417-1) Hazards attached directly to the device-Symbole must be followed and readability ensured at all times. -
Page 6: Improper Operation
Do not use the cooking surface as a shelf! Do not place paper, cardboard, fabric, etc. between the pan and the ceramic hob, as it could ignite. Aluminium foils and plastic vessels must not be placed or placed on the hot surfaces. Care must be taken to ensure that during the operation of the device, objects that the user ... -
Page 7: General
W x D x H BAWH1, BAWH1SMINI330 x 530 x 100 mm320 x 520 x 4 mm BAWH2, BAWH2SMINI660 x 530 x 100 mm650 x 520 x 4 mm BAWH3, BAWH3SMINI980 x 530 x 100 mm970 x 520 x 4 mm... - Page 8 Ø300 x 6 mm WHWFW Built-in unit 388 x 388 x 100 mm 388 x 388 x 6 mm Type Beam radiatorsVoltagePowerweight BAWH1, BAWH1S 1 x Q 290 450 mm 230V/1~/N/PE1.0 kW 10.0 kg BAWH2, BAWH2S 612 x 450 mm 230V/1~/N/PE1,5 kW 15.0 kg...
-
Page 9: Control With Gag
Control with gag Devices on and off switches (Button with operating lamp) Position OFF: points to mark ()ο Thermostat knob (0 – 110°C) Thermostat knob (0 – 190°C) Thermostat knob (0 – 290°C) Thermostat knob (0 – 350°C) 17.07.2014 side 8 ©... -
Page 10: Control With Touch Control Panel (Esrtw)
Control with touch control panel (ESRTW) Touch control panel buttons Digital display for reading the temperature or error Field to increase the temperature Field to minimize the temperature Standby ON/OFF Position of the controllable cooking area ON/OFF switch the cooking area Turning on the cooking area ("Software version") the cooking When switching on... -
Page 11: Standard Model
Standard model Turn on the device. The power indicatorla mpe of the device (green) lights up, drehen diethermostat to the desired temperature. Model with sensor keypad (ESRTW) The digitale display shows the selected temperature and the possible residual heat. If the power indicator or digital display remains off, check the following: Is the device connected to the mains or main switch on? Temperature selection with thermostat? If the Gerät does not work despite the test, see under the item Error finding /... -
Page 12: Error Finding
Error finding Warning: During cleaning or maintenance and when replacing parts, the devices must be disconnected from the power supply. that Gguessed may only be opened by approved and attention trained service personnel. Quit any Work, the Heating zone (Ceramic glass) be torn or broken. that Gguessed Thu not open device! must be turned off immediately and the power plug Dangerous tension! - Page 13 17.07.2014 side 12 © Bern cooking systems 2016...
-
Page 14: Cleaning
cleaning Warning: During cleaning or maintenance and when replacing parts, the devices must be disconnected from the power supply. List of detergents for certain types of pollution: Type of pollution detergent Light pollution Damp cloth (Scotch ®) with some Industrial kitchen cleaning agents Fatty stains ( sauces, soups,...) Polychrome, Sigolin chrome, Inox crème, Vif Super Cleaner... - Page 15 Devices intended for this purpose can be sent to us for disposal. Only sufficiently franked packages are accepted by us. Delivery: Berner- Kochsysteme GmbH & Co. KG Sudetenstrasse 5 – D - 87471 Durach Phone +49 (0) 831/697247-0; fax. - 15 email: Berner@induktion.de...
