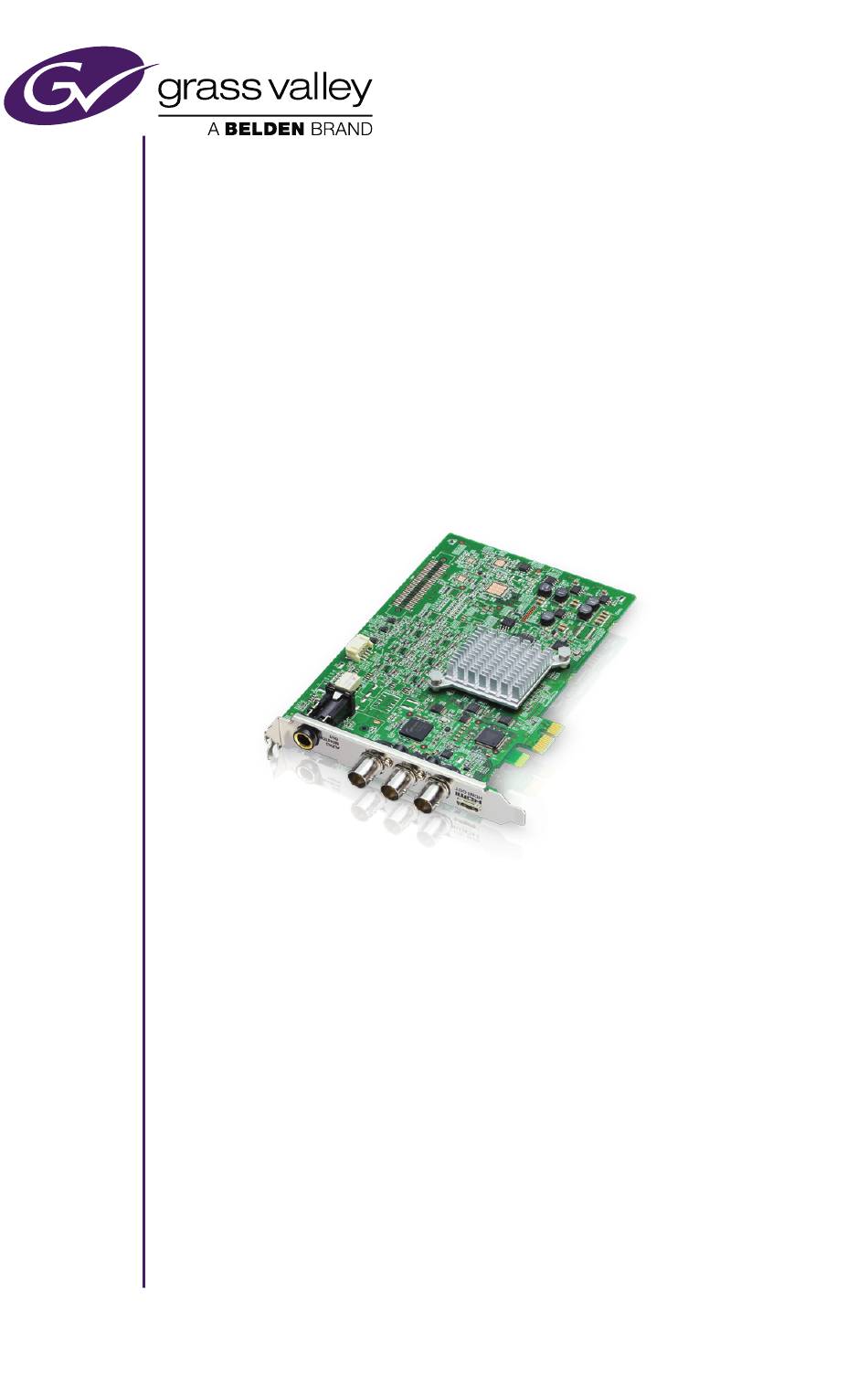

- Page 1 STORM Pro HD-SDI I/O CARD WITH HDMI OUTPUT Setup Guide F3951411041 www.grassvalley.com December 2014...
- Page 3 Belden, Belden Sending All The Right and Logos Signals, and the Belden logo are trademarks or registered trademarks of Belden Inc. or its affiliated companies in the United States and other jurisdictions. Grass Valley, GV STRATUS, K2, Infinity, T2, HDSTORM, STORM MOBILE,...
- Page 4 Other trademarks and logos used in this document are either registered trademarks or trademarks of the manufacturers or vendors of the associated products, such as Microsoft Windows operating ® ® system, Windows Media player, Internet Explorer ® ® internet browser, and SQL Server™. QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple, Inc., used under license therefrom.
- Page 5 Manual • If there are any variations between the Explanation explanation in this manual and the actual application method, priority is given to the actual application method. • The screens used as examples in this manual are those of the development stage, so they may vary from those in the final product.
-
Page 6: Table Of Contents
Contents Safety Summaries ..........7 Warranty ............11 Résumé des mesures de sécurité ......12 Garantie ............17 Before Using Before Using ..........18 Grass Valley Product Support ......19 Hardware Setting Part names ............ 21 Setting the Hardware ........22 Installing EDIUS .......... -
Page 7: Safety Summaries
Safety Summaries Safety Summaries General Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. While using this product, you may need to access other parts of the system. Read the General Safety Summary in other system manuals for warnings and cautions related to operating the system. - Page 8 Safety Summaries Provide Proper Ventilation To prevent product overheating, provide proper ventilation. Do Not Operate With Suspected Failures If you suspect there is damage to this product, have it inspected by qualified service personnel. Safety Terms and Symbols Terms in This Manual These terms may appear in this manual: WARNING: Warning statements identify conditions or practices that can result in...
- Page 9 Safety Summaries Symbols on the Product The following symbols may appear on the product: DANGER high voltage Protective ground (earth) terminal ATTENTION – refer to manual Service Safety Summary WARNING: The service instructions in this manual are intended for use by qualified service personnel only.
- Page 10 Safety Summaries Certifications and Compliances FCC Emission Control This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 11: Warranty
Warranty Warranty Grass Valley warrants to Customer that Hardware will be free from material defects in materials and workmanship under normal authorized use consistent with the Technical Hardware Specifications for a period of fifteen (15) months from the date of shipment from factory (the “Hardware Warranty Period”). -
Page 12: Résumé Des Mesures De Sécurité
Résumé des mesures de sécurité Résumé des mesures de sécurité Résumé des mesures de sécurité générales Consultez les mesures de sécurité suivantes afin d’éviter toute blessure corporelle et dommage au produit, et pour tous les produits qui y sont connectés. Lors de l’utilisation de ce produit, il est possible que vous ayez à... - Page 13 Résumé des mesures de sécurité Précautions relatives aux dommages au produit Utiliser une source d’alimentation appropriée Ne faites pas fonctionner ce produit avec une source d’alimentation qui applique une tension supérieure à celle spécifiée. Prévoir une ventilation adéquate Afin d’empêcher une surchauffe du produit, prévoyez une ventilation adéquate.
- Page 14 Résumé des mesures de sécurité Termes relatifs au produit Les termes suivants peuvent apparaître sur le produit : DANGER indique un risque de blessure corporelle immédiatement accessible lors de la lecture de l’inscription. MISE EN GARDE indique un risque de blessure corporelle non immédiatement accessible lors de la lecture de l’inscription.
- Page 15 Résumé des mesures de sécurité Débrancher l’alimentation Afin d’éviter un choc électrique, coupez l’alimentation principale au moyen du cordon d’alimentation ou, le cas échéant, de l’interrupteur d’alimentation. Faire preuve de prudence lors de l’entretien lorsque l’appareil est sous tension Ce produit peut être le cadre de tensions et d’intensités dangereuses.
- Page 16 Résumé des mesures de sécurité Avis de conformité de la CEM pour le Canada Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.
-
Page 17: Garantie
Garantie Garantie Grass Valley garantit au Client que le Matériel sera exempt de tout défaut matériel et de fabrication dans le cadre d’une utilisation normale autorisée en conformité avec les Spécifications techniques du Matériel, pendant une période de quinze (15) mois à... -
Page 18: Before Using
1 Section Before Using Before Using Operation environment I/O card The following PCI Express slot is required: PCI Express x1 (PCI Express Spec. Revision 1.1) x1 Note • Check the operation environment of your EDIUS software for other operation environments. Limitations Following are limitations to use this product. -
Page 19: Grass Valley Product Support
Grass Valley Product Support Grass Valley Product Support For technical assistance, to check on the status of a question, or to report a new issue, contact Grass Valley Product Support via e-mail, the Web, or by phone or fax. Web Technical Support To access support information on the Web, visit the product support Web page on the Grass Valley Web site. - Page 20 Section 1 ― Before Using Authorized Support Representative To locate the support representative for your country, visit the Product Support Web page on the Grass Valley Web site: www.grassvalley.com/support. STORM Pro ― Setup Guide...
-
Page 21: Hardware Setting
2 Section Hardware Setting This section describes the part names of STORM Pro, the procedures for mounting STORM Pro and then for installing EDIUS. Part names STORM Pro I/O Card Rear panel [1] HDMI output terminal (HDMI Mini) [2] SDI output terminal (HD/SD-SDI) [3] SDI input terminal (HD/SD-SDI) [4] AUDIO MONITOR output terminal (Stereo) STORM Pro ― Setup Guide... -
Page 22: Setting The Hardware
Section 2 ― Hardware Setting If the card does not work properly, check the LED on the card. [1] I/O card connection indicator The indicator lights when the card is installed in the PCI Express slot and connection is possible. It blinks if there is any abnormality. - Page 23 Setting the Hardware Tightly set the I/O card in PCI Express slot. POINT • See the instruction manual for your PC (motherboard) for the PCI Express slot type. Set the I/O card (STORM Pro) in the PCI Express slot (PCI Express x1). * When PCI Express x1 is not available, either PCI Express x4 or x8 can be used.
- Page 24 Section 2 ― Hardware Setting Audio output Specification of audio cable (4pin-4pin) is: Red: Right channel (R) White: Left channel (L) Black: Ground (G) Audio cable (4pin-4pin) For audio output, use the attached audio cable (4pin- 4pin) to connect sound device in output destination and the I/O card.
-
Page 25: Installing Edius
Installing EDIUS Note • Note that onboard sound device (sound device installed in motherboard: for details, see the instruction manual for your PC or motherboard) might interfere with the card installed in slot depending on connector position of the device. Output from sound board Connect the audio cable to the terminal of sound board. -
Page 26: Confirmation After Installation
Section 2 ― Hardware Setting Confirmation after installation Confirming resource Note • The following procedure describes how to confirm in Windows 7. Confirm whether driver has been normally installed after restarting when driver and application software installation is finished. Proceed to “Hardware and sound” from “Control Panel”... -
Page 27: Edid Monitor
EDID Monitor Close “Device Manager”. Checking the driver for the I/O card now finishes. POINT • When the unit does not work properly, please check the PCI Express Slot specification and BIOS setting of your PC (motherboard). EDID Monitor EDIUS is start up. Click “Tools” on the menu bar and click “EDID Monitor”. -
Page 28: Hardware Specifications
3 Section Hardware Specifications STORM Pro I/O Card PCI Express x 1 PCI Express (PCI Express Spec. Revision 1.1) standard SDI x 1 (SMPTE ST 292/ Video input ST 259-C) SDI x 2 (SMPTE ST 292/ ST 259-C) Video output HDMI Mini Connector x 1 HDMI (HDMI 1.3 compliant,... -
Page 29: Supported Formats
Supported formats Dimensions 161.00 (W) x 111.15 (H) mm (protrusions (without PCI bracket) excluded) 132 g Weight Operating 0 °C - 45 °C temperature Operating 0 % - 80 % (No Condensation) humidity Supported formats Capture Format 1920 x 1080/59.94i 1920 x 1080/29.97PsF 1440 x 1080/59.94i 1440 x 1080/29.97PsF... - Page 30 Section 3 ― Hardware Specifications Output Format 1920 x 1080/59.94i 1920 x 1080/29.97PsF 1440 x 1080/59.94i 1440 x 1080/29.97PsF HD 60Hz 1280 x 1080/59.94i 1280 x 1080/29.97PsF 1280 x 720/59.94p 960 x 720/59.94p 1920 x 1080/50i HDMI 1920 x 1080/25PsF 1440 x 1080/50i HD 50Hz 1440 x 1080/25PsF 1280 x 720/50p...
- Page 31 Supported formats 1920 x 1080/59.94i 1920 x 1080/29.97PsF 1440 x 1080/59.94i 1440 x 1080/29.97PsF HD 60Hz 1280 x 1080/59.94i 1280 x 1080/29.97PsF 1280 x 720/59.94p 960 x 720/59.94p 1920 x 1080/50i 1920 x 1080/25PsF 1440 x 1080/50i HD 50Hz 1440 x 1080/25PsF 1280 x 720/50p 960 x 720/50p 1920 x 1080/23.98PsF...
- Page 32 Section 3 ― Hardware Specifications 有毒有害物质含有表 This information is applicable for People’s Republic of China only. 产品中有毒有害物质或元素的名称及含量 STORM Pro I/O Card 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 聚溴联苯 聚溴二苯醚 Cr(VI) PBDE 电缆 ○ ○ ○ ○ ○ ○ 外壳 ○ ○ ○ ○...
- Page 33 STORM Pro ― Setup Guide...
- Page 34 Copyright © 2014 Grass Valley. All rights reserved. All other trademarks are properties of their respective holders. All specifications are subject to change without notice. Printed in Japan...
