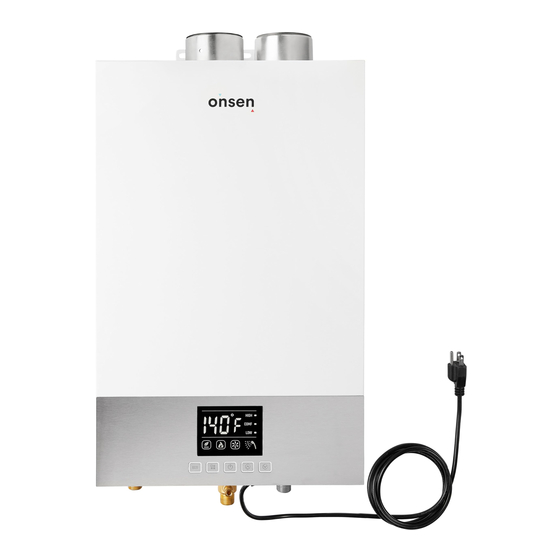

onsen 14L Manual

READ THE FOLLOWING BEFORE
DAMAGE DUE TO FREEZING IS NOT COVERED BY THE WARRANTY.
WHEN PLANNING TO INSTALL AND OPERATE THE WATER HEATER IN AREAS WHERE THE OUTSIDE AIR CAN REACH FREEZING
TEMPERATURES, IT IS IMPORTANT TO PROTECT THE WATER HEATER FROM FREEZE DAMAGE.
* INSTALLATION AND SERVICE OF THIS APPLIANCE MUST BE PERFORMED BY A QUALIFIED INSTALLER. FURTHERMORE, IT IS STRONGLY
RECOMMENDED TO USE AN INSTALLER WHO WORKS REGULARLY WITH VENTILATION SYSTEMS TO PERFORM THE INSTALLATION.
** WHEN INSTALLING, ALWAYS CONFORM WITH LOCAL CODES OR, IN THE ABSENCE OF LOCAL CODES, TO THE NATIONAL FUEL
GAS CODE, ANSI Z223.1/NFPA 54 (USA), OR THE NATURAL GAS AND PROPANE INSTALLATION CODE, CSA B149.1 (CANADA).
During freezing temperatures, ensure the water heater and its water lines are protected against freezing. In the
event of a power failure or when installing in a cabin or secondary residence that is not heated all year long,
the water heater should be drained manually to prevent freezing damage. To do this, blow compressed air into the
water inlet to drain any water remaining in the heat exchanger piping
1
FREEZE DAMAGE RECOMMENDATIONS RELATED TO COMBUSTION AIR AIR INTAKE
This water heater can be installed in one of two types of application for the air intake:
TYPE 1
Non-Direct Vent
(combustion air drawn from the room)
Please read and follow the important installation guidelines related to each application type listed below:
Application Type 1
Non-Direct Vent
(combustion air drawn
from the room)
onsenproducts.com

WARNING: RISK OF FREEZE DAMAGE

DRAINING THE WATER HEATER

**
With Non-Direct Vent, there is no risk of freezing damage since the combustion air is drawn
from the heated room. Please see
tion of the air intake.**
The Non-Direct Vent application has the advantage of being a simpler and easier installation
than the Direct Vent application.
It is not recommended to install the water heater in an enclosed space such as a closet when
using the Non-Direct Vent application.
When using the Non-Direct Vent application, it is important to ensure su cient air
volume for the air intake. For the required volume of indoor air, please refer to local codes or,
in the absence of local codes, to the National Fuel Gas Code, ANSI Z223.1/FPA 54 (USA), or the
Natural Gas and Propane Installation Code, CSA B149.1 (Canada).
onsenproducts.ca
INSTALLATION*
OR
(combustion air drawn from the outside)
Installation Guidelines
Figure 1 below for an example of a Non-Direct Vent installa-
800-996-5559
support@onsenproducts.com
ONSEN 14L
AND USE
TYPE 2
Direct Vent
1
