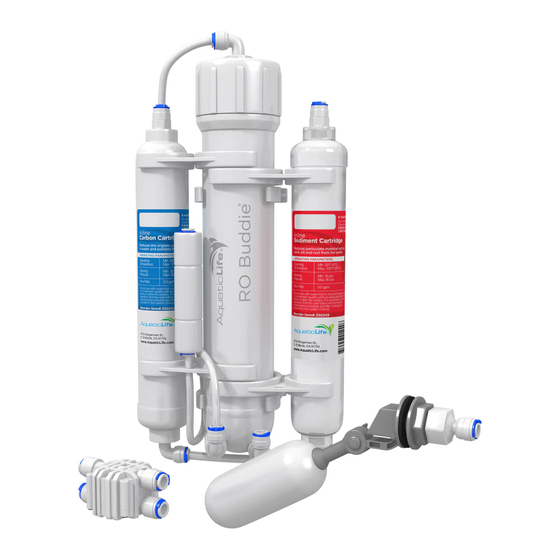

RO Buddie
75 GPD
Installation, Operation & Maintenance Guide
Thank you for purchasing an Aquatic Life RO Buddie® Reverse Osmosis System.
When maintained properly, this unit will provide you with years of service.
OVERVIEW
Reverse osmosis is the process of removing
contaminants from tap water using a special
semi-permeable membrane. By applying
water pressure across the membrane,
contaminants are concentrated on one side of
the membrane and filtered water on the other
side of the membrane. Therefore, reverse
osmosis units have a waste water
line as well as a filtered line.
In addition to the membrane, water is filtered
prior to the membrane with a sediment
cartridge to remove larger particulates, and
a carbon block to remove chlorine and other
materials.
Model: 540714
WARNING:
this unit, find out if you have
Chloramines in your water supply.
Contact your local water company
for this information. If you have
Chloramines, please refer to
page 19 prior to installing your
RO Buddie. Failure to do so may
result in a ruined RO Membrane
and poor filtered water quality.
For technical assistance or
warranty issues, contact Aquatic Life at
customersupport@aquaticlife.com
Before installing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RO Buddie 75 GPD and is the answer not in the manual?

Questions and answers

Summary of Contents for AquaticLife RO Buddie 75 GPD

  • Page 1 In addition to the membrane, water is filtered prior to the membrane with a sediment cartridge to remove larger particulates, and a carbon block to remove chlorine and other For technical assistance or materials. warranty issues, contact Aquatic Life at customersupport@aquaticlife.com...
  • Page 2 Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com Contents Contents Adjustable Float with 1/4" Tubing (20') Rubber Washer RO Membrane 75 GPD RO Membrane Sediment Carbon Housing Cartridge Cartridge 1/4" Inline 450cc 1/4" Press Fit...
  • Page 3 Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com BECOMING FAMILIAR WITH YOUR RO SYSTEM BECOMING FAMILIAR WITH YOUR RO SYSTEM STAGE 1: STAGE 2: STAGE 3: SEDIMENT FILTER CARBON BLOCK FILTER RO MEMBRANE Recommended change...
  • Page 4 Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com BECOMING FAMILIAR WITH YOUR RO SYSTEM BECOMING FAMILIAR WITH YOUR RO SYSTEM REMOVING TUBING from the Press Fittings INSTALLING TUBING in the Press Fittings Pull Pull Hold Remove the blue clip from the press fitting.
  • Page 5: Water Supply Installation

    Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com WATER SUPPLY INSTALLATION OPERATING GUIDELINES MOUNTING THE RO BUDDIE® Step 1: Remove the existing aerator & all rubber Mount to a secure surface using the provided This unit includes two options for easy DO NOT use with water that is washers from the faucet.
  • Page 6: Connect Tubing

    Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com CONNECT TUBING Step 7: Connect a FILTERED line to the Step 1: Connect a section of tubing Step 3: Connect a section of tubing Step 5: Connect a piece of tubing from the bottom "OUT"...
  • Page 7: Flushing The Ro Membrane

    Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com INSTALLING THE RO MEMBRANE Step 2: Unscrew the membrane housing lid INSTALLING THE Step 4: Replace the cap and tighten with from the membrane housing. the supplied wrench. Re-attach the tubing RO MEMBRANE (cont.)
  • Page 8: Connection Diagram

    Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com CONNECT FLOAT VALVE CONNECTION DIAGRAM Connect FILTERED water line to the float Valve. Your RO Buddie is now ready for use! SUPPLY Float Valve FILTERED Container Filtered Water...
  • Page 9: Troubleshooting

    Model: 540714 ® RO Buddie 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com REVERSE OSMOSIS FILTER TROUBLESHOOTING UNIT MAINTENANCE BASICS • Leaks at the threaded connection: Recommended change 3-6 months If once installed the unit should leak, use The membrane does most of the work by Sediment Filter Cartridge (Item # 330249) plumbers tape on the threaded fitting.
  • Page 10 Model: 540714 RO Buddie ® 75 GPD Installation, Operation & Maintenance Guide www.aquaticlife.com SCAN TO PURCHASE SCAN TO PURCHASE CHLORAMINES Supply water treated with Chloramines is different than Chlorine. The Carbon Cartridge removes Chlorine. When Chloramines are present, a special filter is required.
  • Page 11: Limited Warranty

    U.S. Mail: Lifetime Products, LLC, 9710 Klingerman St., S. El Monte, CA 91733 or electronic • Incoming water pH must not be lower than 2 mail: customersupport@aquaticlife.com. Lifetime or higher than 11. Products shall be allowed a reasonable period of time...
