- Page 1 USER SOLAR-02 MANUAL SOLAR-02 ENVIRONMENTAL PARAMETER DATA LOGGER USER MANUAL Rel. 4.00 - 21/11/22 Rel. 4.00 - 22/11/22...
-
Page 2: Table Of Contents
5.2.3. Setting the values of sensor 3 5.3. Using the SOLAR-02 in independent mode 5.4. Using the inclinometer function 5.5. Using the SOLAR-02 with master instrument type “M-USB” 5.5.1. Preliminary check 5.5.2. Use of the unit 5.6. Using the SOLAR-02 with master instrument type “M-RF”... -
Page 3: Introduction
It can also be used in combination with a MASTER instrument to carry out the above-mentioned measurements for testing/recording the efficiency of single-phase and three-phase photovoltaic installations. The unit SOLAR-02 can be connected to the following accessories and MASTER instruments: TABLE 1:... -
Page 4: Precautions And Safety Measures
• Check that the batteries are correctly inserted CAUTION The RF connection of remote unit SOLAR-02 is normally disabled for default. For use of this unit with the Master meter “M-RF” (see Table 1) is necessary to activate the RF connection (see § 5.6.1) -
Page 5: During Use
SOLAR-02 DURING USE We recommend carefully reading the following recommendations and instructions: CAUTION • Failure to observe the warnings and/or instructions may damage the instrument and/or its components or generate a danger for the operator. • The symbol « » indicates that the batteries are flat. Stop testing and replace the batteries according to the procedure described in §... -

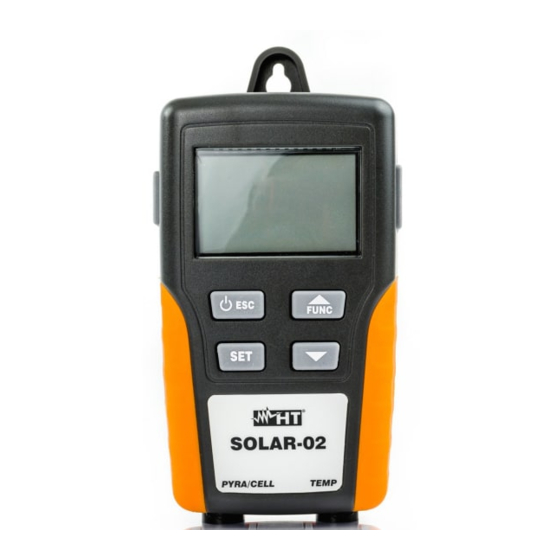

Page 6: Description Of The Remote Unit Solar-02
DESCRIPTION OF THE SOLAR-02 REMOTE UNIT SOLAR-02 DESCRIPTION OF CONTROLS CAPTION: 1. LCD display /ESC key 3. SET key 4. PYRA/CELL input 5. TEMP input 6. ▼ arrow key 7. FUNC/▲ key 8. USB port for connection to master instrument M-USB... -
Page 7: Using The Remote Unit Solar-02
PYRA/CELL input of the unit. The set values will be read and considered by the master instruments upon testing/recording and will be kept by the SOLAR-02 even when the unit is turned off, until they are modified. -
Page 8: Setting The Values Of Sensor 1 (Pyra Or Mono)
SOLAR-02 5.2.1 SETTING THE VALUES OF SENSOR 1 (PYRA OR MONO) 1. Press and hold the SET key while turning on the instrument by means of the /ESC key. The unit shows the screen beside. 2. Use the arrow keys ▲and ▼to set the correct K sensitivity value reported on the (front or rear) label, located on the sensor itself. -
Page 9: Using The Solar-02 In Independent Mode
2. Press the FUNC/▲key to activate the inclinometer mode of the unit SOLAR-02 instead of the measurement of temperature Te as shown on the screen beside 3. Fasten the unit on the module’s surface, if necessary by means of the two magnets available on the rear side 4. -
Page 10: Use Of The Unit
3. Confirm selection with the SET key to go back to the measuring mode 4. Connect the unit SOLAR-02 to the master instrument by means of the USB cable. The symbol “USB” is shown on the display while the unit is detected by the master instrument 5. -
Page 11: Use Of The Unit
6. Once the waiting phase (HOLD) has ended, the message “Recording…” will be displayed. It is now possible to take the unit SOLAR-02 away from the master instrument and take it near the PV modules. Possible hyphens “- - -”... -
Page 12: Maintenance
MAINTENANCE SOLAR-02 GENERAL INFORMATION 1. Whether in use or in storage, please do not exceed the specifications to avoid any possible damage or danger during use. 2. Do not keep this instrument at high temperatures and/or humidity or expose it to direct sunlight. -
Page 13: Technical Specifications
<80%RH This instrument complies with LVD 2014/35/EU and EMC 2014/30/EU Directive HT declares (see Declaration of Conformity) that the instrument is complying with prerequisites and other requirements of 1999/5/CE Directive This instrument satisfies the requirements of 2011/65/EU (RoHS) directive and 2012/19/EU... -
Page 14: Assistenza
SERVICE SOLAR-02 WARRANTY CONDITIONS This instrument is guaranteed against material or production defects, in accordance with our general sales conditions. During the warranty period, the manufacturer reserves the right to decide either to repair or replace the product. Should you need, for any reason, to return the instrument for repair or replacement, please take prior agreements with the local distributor from whom the instrument was bought. - Page 15 SOLAR-02 Rel. 4.00 - 22/11/22...
- Page 16 SOLAR-02 HT ITALIA S.R.L. Via della Boaria, 40 48018 Faenza (RA) Italia T +39 0546 621002 | F +39 0546 621144 WHERE M ht@ht-instruments.com | ht-instruments.com WE ARE Rel. 4.00 - 22/11/22...
