EnviroTech Alarms LEAK-STOP Installation And Operation Manual

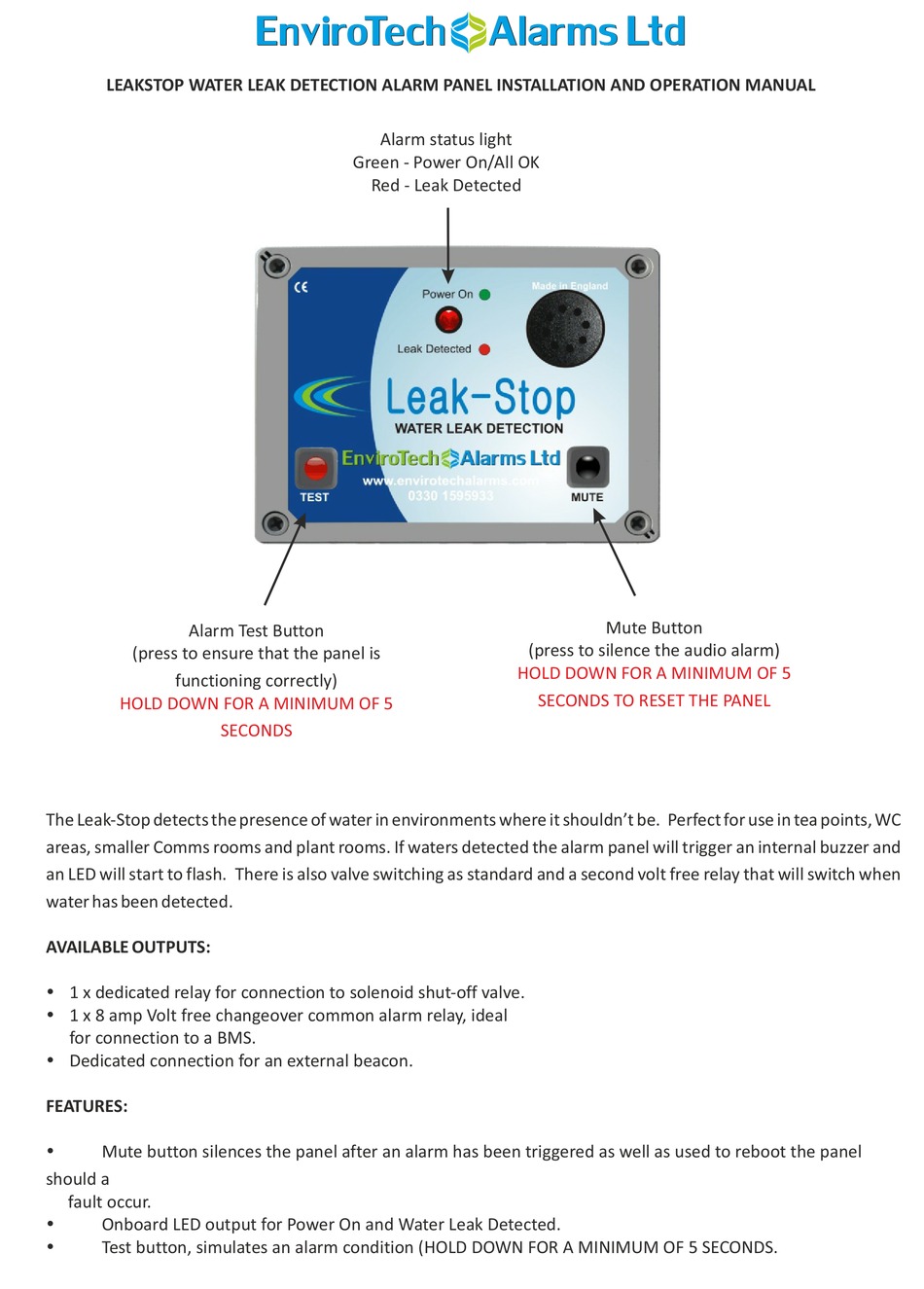

LEAKSTOP WATER LEAK DETECTION ALARM PANEL INSTALLATION AND OPERATION MANUAL

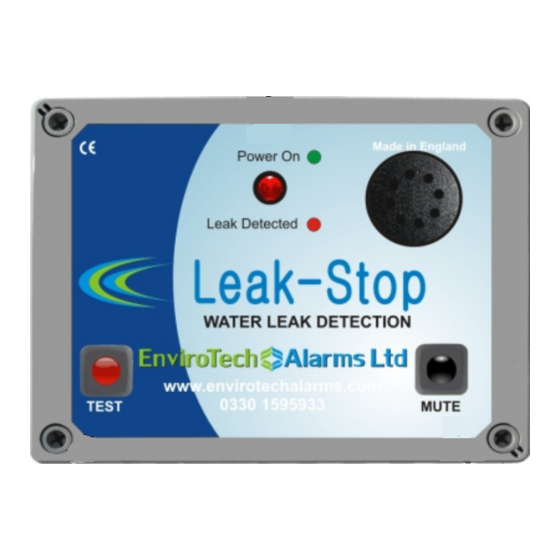

Alarm Test Button
(press to ensure that the panel is
functioning correctly)
HOLD DOWN FOR A MINIMUM OF 5
The Leak-Stop detects the presence of water in environments where it shouldn't be. Perfect for use in tea points, WC
areas, smaller Comms rooms and plant rooms. If waters detected the alarm panel will trigger an internal buzzer and
an LED will start to flash. There is also valve switching as standard and a second volt free relay that will switch when
water has been detected.

AVAILABLE OUTPUTS:

Ÿ 1 x dedicated relay for connection to solenoid shut-off valve.
Ÿ 1 x 8 amp Volt free changeover common alarm relay, ideal
for connection to a BMS.
Ÿ Dedicated connection for an external beacon.

FEATURES:

Ÿ Mute button silences the panel after an alarm has been triggered as well as used to reboot the panel
should a
fault occur.
Ÿ Onboard LED output for Power On and Water Leak Detected.
Ÿ
Test button, simulates an alarm condition (HOLD DOWN FOR A MINIMUM OF 5 SECONDS.

Alarm status light

Green - Power On/All OK
Red - Leak Detected
SECONDS
Mute Button
(press to silence the audio alarm)
HOLD DOWN FOR A MINIMUM OF 5
SECONDS TO RESET THE PANEL
