RIDGE FRONT BUMPER BULL BAR LIGHT KIT
AC-LK-100-1
PARTS LIST
Installation Instruction RSEI 116
QTY
DESCRIPTION
1

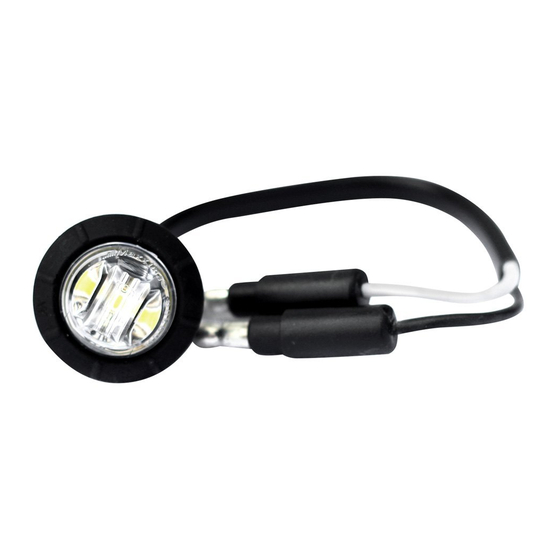

LED Light
1
Push Button Switch
1
20AMP Fuse
1
Fuse Holder
2
Ring Terminals
2
Spade Female Connectors
2
12ft Wire
4
Butt Connectors
*If any parts listed are missing or damaged
please call Rock-Slide Engineering @
435-752-4580 prior to installation
Advertisement
Table of Contents
Summary of Contents for Rock-Slide Engineering AC-LK-100-1
- Page 1 DESCRIPTION LED Light Push Button Switch 20AMP Fuse Fuse Holder Ring Terminals Spade Female Connectors 12ft Wire Butt Connectors *If any parts listed are missing or damaged please call Rock-Slide Engineering @ 435-752-4580 prior to installation Installation Instruction RSEI 116...
- Page 2 INSTALLATION 1. You may want to pull a dummy wire through the bulbar to help you get the wires pulled. Feed the supplied white wire through the bottom of the Bull Bar and out the small rear hole in the underside of the top. There is a center hole in both ends of the Bull Bar designed for wires.
- Page 3 Use the white wire to ground to the battery using one ring terminal. Use the other ring terminal to connect the fuse box to the positive side of the battery. Thank you for choosing Rock-Slide Engineering products. We value your business and welcome your feedback/suggestions.
