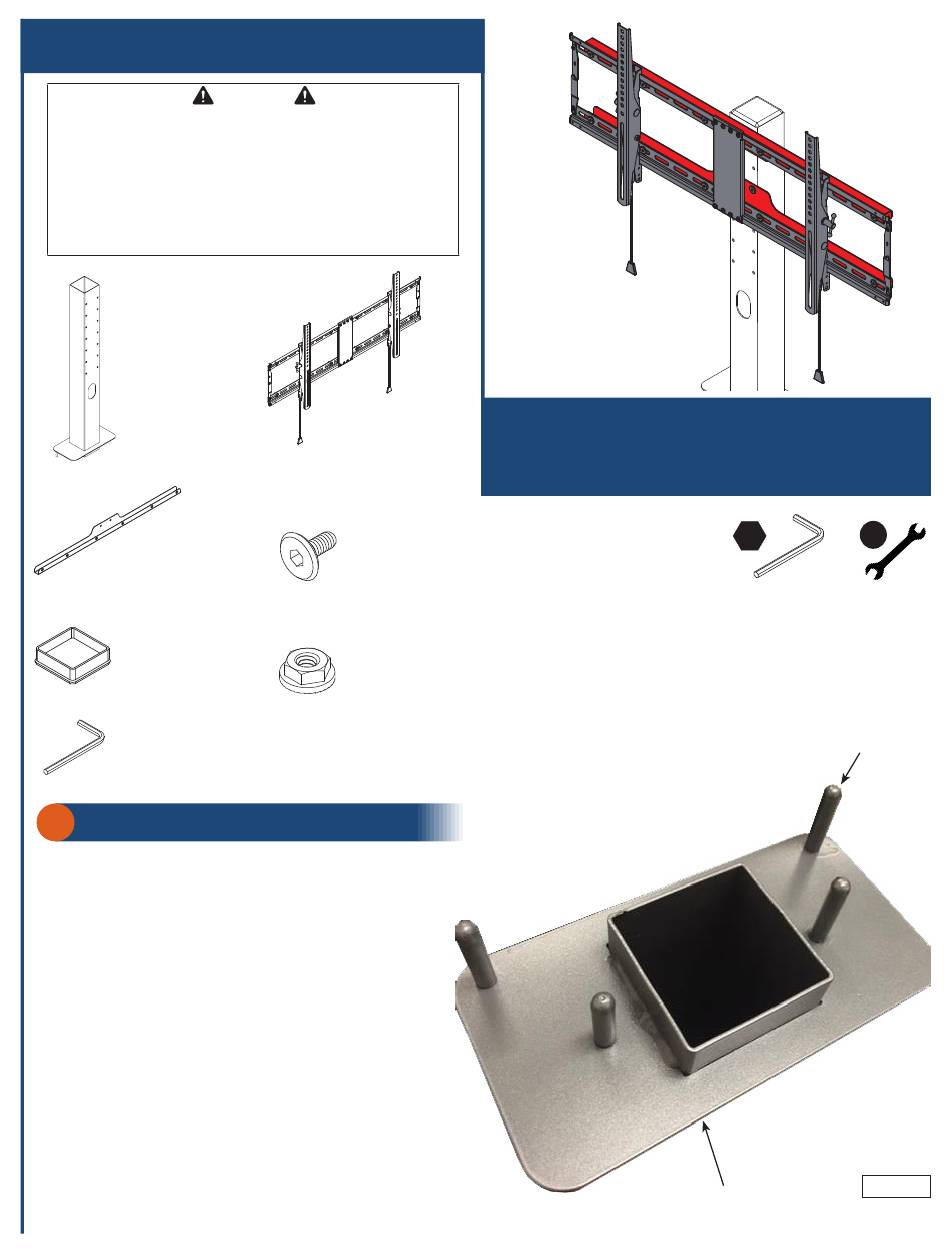

Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt. To
report information regarding missing parts or damage, to purchase parts or acces-
sories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(1) 0118510
Upright assembly
(2) 0173165
Upright bracket
(1) 0118193
End cap 3" x 3"
(1) 025039
4mm Hex wrench
1
Remove thread protectors
1. With the upright assembly upside-down, remove the rubber
thread protector from each threaded stud. Figure 1.
(A utility knife may be needed to cut off.)
(1) 0193628
VESA mount
(16) 052605
1/4-20 x 15mm
JC bolt
(4) 0108896
1/4-20 Flanged
serrated locknut
Display Stand
37130
4mm
Bottom of upright
assembly
0118583R7 Page 1 of 4
"
7/16
Rubber thread
protectors
Figure 1
Advertisement
Summary of Contents for Spectrum Industries 37130
- Page 1 800-235-1262, 715-723-6750 Thank you for purchasing Spectrum products! (1) 0118510 (1) 0193628 Display Stand Upright assembly VESA mount 37130 ” 7/16 (2) 0173165 (16) 052605 Upright bracket 1/4-20 x 15mm JC bolt (1) 0118193 (4) 0108896 End cap 3”...
- Page 2 Worksurface cutouts Be sure the worksurface being used has the cutout / hole pattern shown in Figure 2.1, or Figure 2.2. Mounting holes and cutout needed (on flat end of worksurface) InVision / Element / Nano Tables Optio Tables Figure 2.1 Figure 2.2 An unattached worksurface will facilitate installation of the display stand fasteners.
- Page 3 Install upright brackets Install VESA mount Attach the (2) upright brackets to the upright assembly as shown Attach the VESA mount to the (2) upright brackets using 1/4-20 x 15mm JC bolts (2 per). Tighten securely. using (12) 1/4-20 x 15mm JC bolts. Figure 4. Tighten all bolts securely Note: Multiple mounting holes / height positions are available on the upright assembly).
- Page 4 (4 required) End panel Figure 6.1 Figure 6.2 Remove these screws 1500 RIVER STREET, PO BOX 400, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2023 Spectrum Industries Inc., All rights reserved. 0118583R7 Page 4 of 4...
