USERS MANUAL extension module 4 relay outputs unipolar 16A
DMC-004-004

1 DESCRIPTION

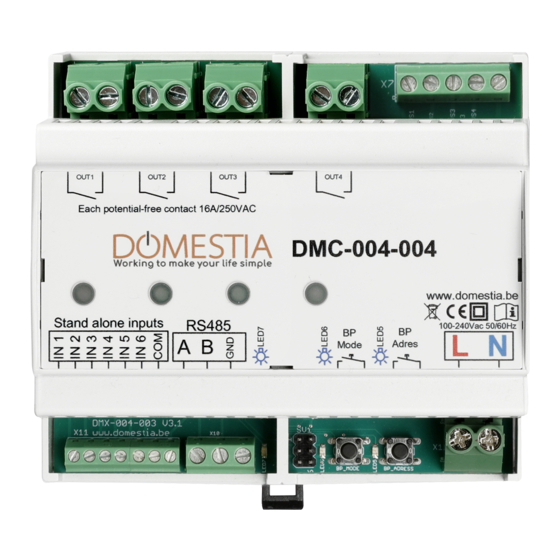

The module DMC-004-004 is an extension module 4 outputs unipolar 16A/230Vac.
The module is also provided with 6 potentialfree inputs that can be used to work in
stand-alone mode. The relays can command lighting as well as rolling schutters.

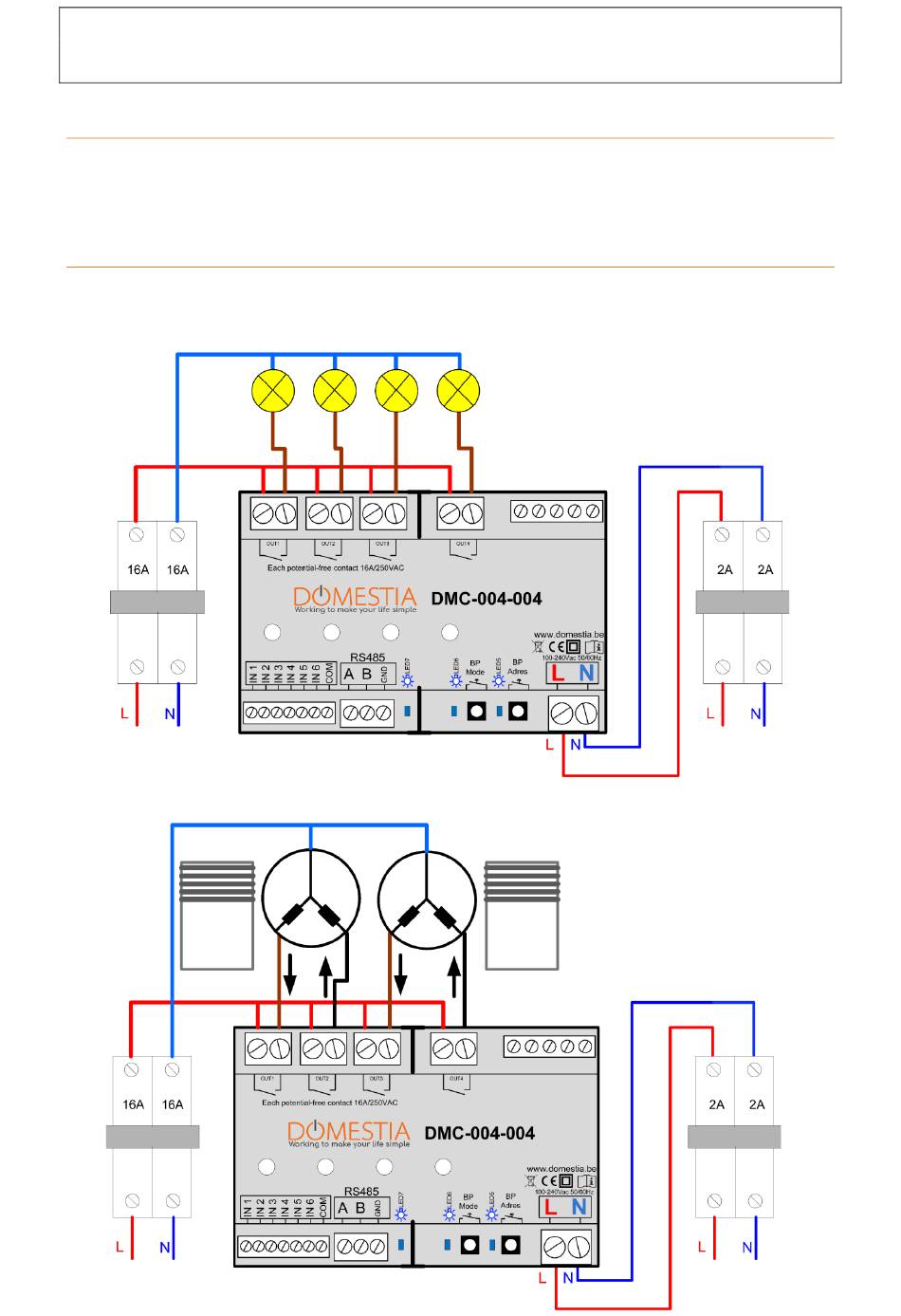

2.1 Connection of the charges on to the module DMC-004-004
Example: connection of 4 lamps:
Example: connection of 2 shutters
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMC-004-004 and is the answer not in the manual?

Questions and answers

Summary of Contents for Domestia DMC-004-004

  • Page 1 DMC-004-004 1 DESCRIPTION The module DMC-004-004 is an extension module 4 outputs unipolar 16A/230Vac. The module is also provided with 6 potentialfree inputs that can be used to work in stand-alone mode. The relays can command lighting as well as rolling schutters.
  • Page 2 2.2 Connection in slave mode The extension DMC-004-004 module 4 outputs can work as a slave module with: • A master module DMC/DKS-012-00x • A master module DMC/DKS-008-001 • A control module DME-LAN- For the connection and the programming of a control module DME-LAN refer to the user manual of the DME-LAN-.
  • Page 3 2.3 Connection in Standalone mode (directly controlled by potential free push-buttons). The extension module DMC-004-004 4 outputs can also work independently in stand- alone mode. The « Stand-alone » entries IN 1 à IN 4 allow to directly control the outputs OUT 1 à...
  • Page 4 41-44 arrows UP and DOWN. 45-48 Semi-automatic addressing : Click on « Semi-automatic addition » then push on the addressing button of the module(s) DMC-004-004 49-52 to add. Click again on « Semi-automatic addition» to end the 53-56 procedure of adding modules.
  • Page 5 3.4 Configuration of the functioning of the module 3.4.1 Configuration from the app « Domestia Home Manager » Select the ouput from the main window « Configuration of the installation ». Select the output’s functioning mode. By clicking on the shutter’s icon you can configure a pair of outputs in mode «...
  • Page 6 3.5 Programming 3.5.1 Programming from the app « Domestia Home Manager » a) From the output configuration, click on "Program push buttons" . The output will light up. b) Press for at least 2 seconds the push-button(s) that should drive this output to associate them.
  • Page 7 No communication with Verify the connections of the RS485 (between the slave mode) the master module the DMC-004-004 and the master module). Master module not present or no power supply to the Master. Master module not configured as a master.
  • Page 8 Repair attempts made by the customer or a third party are not permitted. Damage caused by accident, force majeure or other causes for which Domestia cannot be held responsible. • Fault not effecting the proper functioning or proper use of the equipment.
