These instructions are intended for use only by experienced, qualified
combustion start-up personnel. Adjustment of this equipment and its
components by unqualified personnel can result in fire, explosion, severe
personal injury, or even death.
TABLE OF CONTENTS
Subject
General Information ................................................................................
Receiving and Inspection ..........................................................................
Drawings and Supplemental Literature........................................................
Instrument Configuration...........................................................................
Configuration Record...............................................................................
Setup Mode...........................................................................................
Attachments: Appropriate Drawings and Schematics

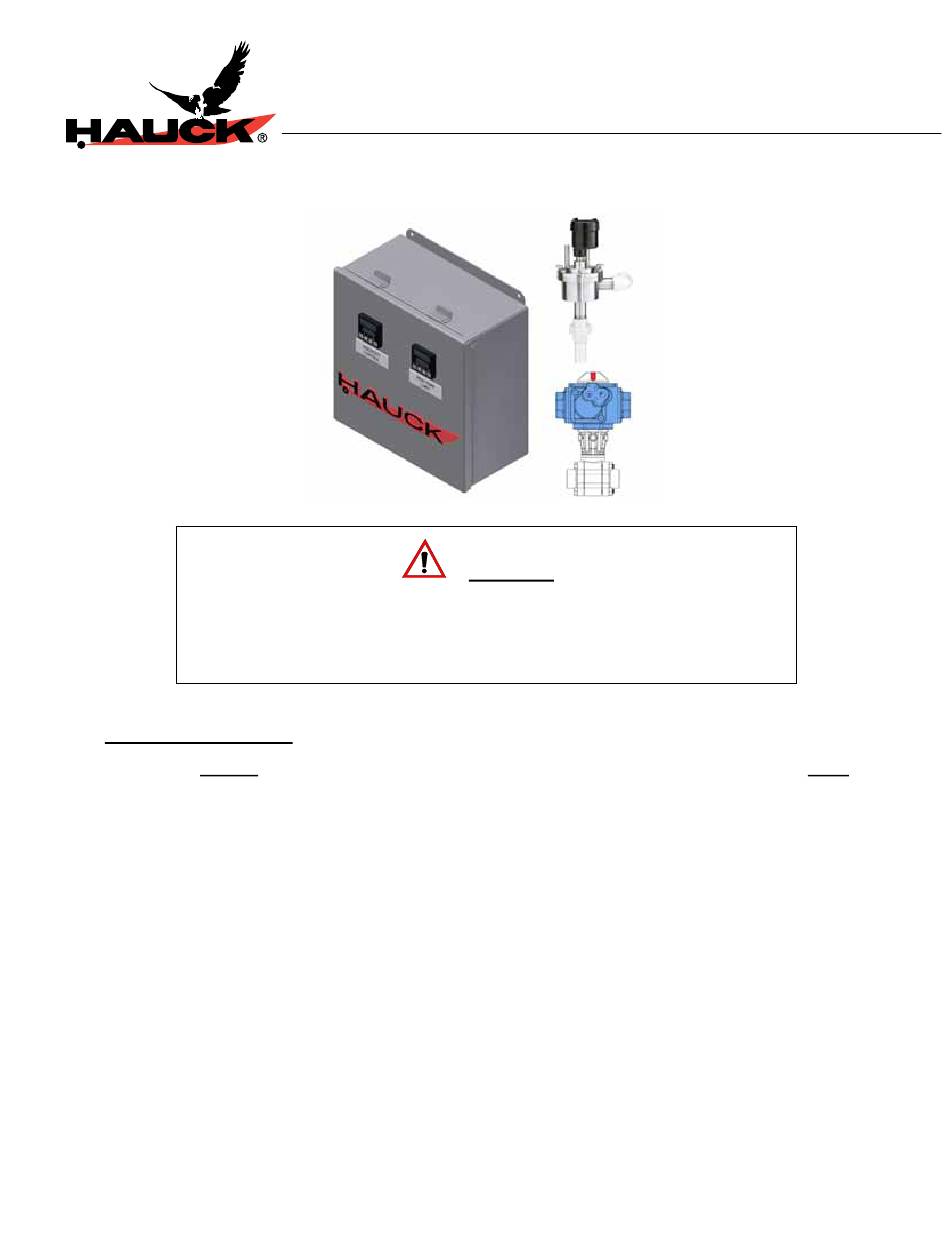

These instructions are intended to serve as guidelines covering the installation, operation, and maintenance of Hauck equipment. While
every attempt has been made to ensure completeness, unforeseen or unspecified applications, details, and variations may preclude
covering every possible contingency. WARNING: TO PREVENT THE POSSIBILITY OF SERIOUS BODILY INJURY, DO NOT USE OR
OPERATE ANY EQUIPMENT OR COMPONENT WITH ANY PARTS REMOVED OR ANY PARTS NOT APPROVED BY THE
MANUFACTURER. Should further information be required or desired or should particular problems arise which are not covered
sufficiently for the purchaser's purpose, contact Hauck Mfg. Co.
HAUCK MANUFACTURING CO., P.O. Box 90 Lebanon, PA 17042-0090 717-272-3051
3/09
OVC OIL VISCOSITY CONTROL
www.hauckburner.com
WARNING
Fax: 717-273-9882
INSTRUCTIONS
Page
2
2
2
3
4
6
OVC-9
