Page 1 EST3X Technical Reference Manual Australia/New Zealand technicians please note Certain functions and features contained in this manual are not suitable for the ANZ market. Please refer to ANZ specific material regarding Australian display. P/N 3101888-EN • REV 03 • ISS 28AUG13...
Page 2 Americas Corporation, Inc., except where specifically permitted under US and international copyright law. Trademarks and The EST3X name and logo are trademarks of UTC Fire & Security patents Americas Corporation, Inc. Other trade names used in this document may be trademarks or...
Page 3: Table Of Contents
Fire alarm system limitations 3 Chapter 2 Product description 5 General description 6 Panel components 10 Minimum system requirements 15 EST3X user interface 15 Event message queues 20 User access levels 22 Command menus 23 Chapter 3 Operating instructions 37...
Page 4 Record of completion 166 Chapter 7 Service and troubleshooting 167 System repairs 169 Precautions 170 Panel restart problems 170 Hardware problems 171 Hardware troubleshooting 172 Pseudo points 185 Understanding Signature data loops 198 Signature loop controller troubleshooting 210 EST3X Technical Reference Manual...
Page 5 Address formats 258 Card address 258 Hardware layer device addresses 260 Operator layer device address 261 Remote annunciator device addresses 263 Logic group addresses 271 Appendix C Programming options 273 Programming options 274 Glossary 277 Index 281 EST3X Technical Reference Manual...
Page 6: Important Information
They tell you which actions to take or to avoid in order to prevent the injury or loss of life. Caution: Caution messages advise you of possible equipment damage. They tell you which actions to take or to avoid in order to prevent the damage. EST3X Technical Reference Manual...
Page 7 When programming emergency numbers or making test calls to emergency numbers, remain on the line and briefly explain to the dispatcher the reason for the call. Perform programming and testing activities in the off-peak hours, such as early morning or late evenings. EST3X Technical Reference Manual...
Page 8 The telephone company may make changes to its facilities, equipment, operations, or procedures that could affect the operation of the dialer. If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. EST3X Technical Reference Manual...
Page 9 The termination on a loop may consist of any combination of devices subject only to the requirements that the sum of the Load Numbers of all the devices does not exceed 100. EST3X Technical Reference Manual...
Page 10 EST3X Technical Reference Manual...
Page 11: Introduction
Chapter 1 Introduction Summary This chapter provides information about this manual and other related documentation. Content About this manual 2 Intended audience 2 Fire alarm system limitations 3 EST3X Technical Reference Manual...
Page 12: About This Manual
Chapter 1: Introduction About this manual This manual provides information on how to install, program, and operate an EST3X life safety control panel. It is organized as follows: Chapter 1, Introduction: Provides information about this manual and other related documentation.
Page 13: Fire Alarm System Limitations
Fire alarm systems will not operate without electrical power. As fires frequently cause power interruption, we suggest that you discuss ways to safeguard the electrical system with your local fire protection specialist. EST3X Technical Reference Manual...
Page 14 Chapter 1: Introduction EST3X Technical Reference Manual...
Page 15: Product Description
Standard control panel Security Menu 35 components 10 Control panel options 11 Control panel accessories 13 Minimum system requirements 15 EST3X user interface 15 Buzzer indicator 16 Operator controls and indicators 16 System status indicators 18 LCD screen indications 18...
Page 16: General Description

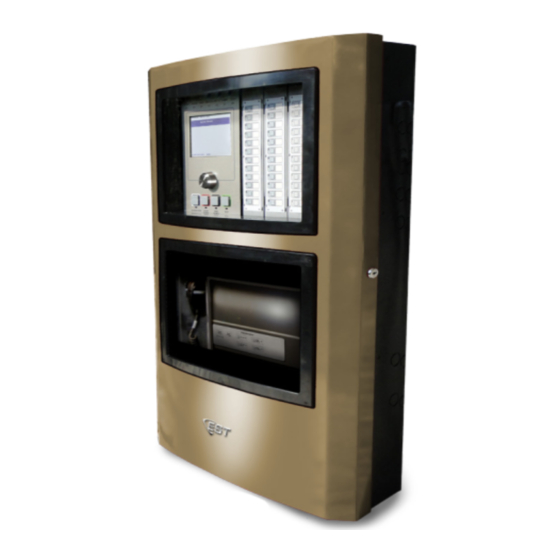

The EST3X fire alarm control panel (FACP) can operate as a stand-alone control panel or in an 8-node peer-to-peer Class B or Class A EST3X life safety network. Its flexibility allows integration with a 64-node EST3 life safety network via a 3X-NET RS-485 network option card or 3X-FIB fiber network option card.
Page 17: Control Panel Architecture
Chapter 2: Product description Control panel architecture Control panel Figure 2 provides an exploded view of a standard EST3X control panel. For a complete list of panel components and options, see “Panel components” on page 10. EST3X control panel models are listed below.
Page 18: System Size
(1) 4X-LCD(-LC) User Interface (3) Electronics chassis (2) SFS1-CPU Main Board (4) 4X-LRMF filler plates System size Table 1 lists the maximum hardware capabilities for a single EST3X control panel. Table 1: Control panel hardware capabilities Item Maximum capacity Signaling line circuits (SLC)
Page 19: Programmable Features
[2] Capacity for Signature loop controllers. Programmable features The EST3X control panel includes a number of programmable features that can be configured using the 3-SDU System Definition Utility (V5.02 or later). • Groups: Allows you to create a collection of devices that are grouped in the database in order to provide a group response that is separate from that of its member devices.
Page 20: Panel Components
The preinstalled SFS1-CPU Main Board processes all information from modules installed in the same cabinet and from other control panels on the EST3X life safety network. The CPU provides common relay outputs, two signaling line circuits, network data and digital audio risers, panel programming inputs, and connection to R-Series remote annunciators.
Page 21: Control Panel Options
3X-NET8 RS-485 Network Option Card: Provides the interface for both the network data riser and a digital audio riser. Provides connection to other EST3X control panels to form an EST3X life safety network (8-node max.). Installs on the SFS1-CPU. See installation sheet P/N 3101768 for specifications.
Page 22 See installation sheet P/N 270485 for specifications. 3-MODCOM Modem communicator module: Provides dialer communications between the EST3X control panel and remote locations over telephone lines. Installs on the SFS1-ELEC hardware layer. See installation sheet P/N 387476 for specifications.
Page 23: Control Panel Accessories
P/N 3101777 for specifications. 3X-PMI Paging Microphone Interface: Adds controls for emergency voice/alarm communications to a EST3X control panel. Consists of an audio mounting bracket, EAEC Emergency Audio Evacuation Controller card, audio enclosure, and paging microphone. Installs on the CAB6B backbox. See installation sheet P/N 3101875 for specifications.
Page 24 See installation sheet P/N 3101025 for specifications. 3-TAMP Tamper Switch: Detects an open EST3X control panel door. Installs on the CAB6B backbox. See installation sheet P/N 387422 for specifications. MN-PASM2 [1] Preamp Supervision Module: Supervises preamp (line level) audio signals.
Page 25: Minimum System Requirements
MN-PASM Preamp Supervision Module Installation Sheet (P/N 3101580). Minimum system requirements The EST3X can operate as a stand-alone control panel, as part of an EST3X life safety network (64-node max.), or as part of an EST3 life safety network (64-node max.).
Page 26: Buzzer Indicator
Trouble: 30 pulses per minute • Monitor: 3-3-3 pattern Note: As determined by the 3-SDU configuration, a reminder buzzer may sound. Operator controls and indicators ALARM DISABLE GND FAULT CPU FAIL TROUBLE POWER ACKNOWLEDGE ALARM PANEL RESET SILENCE SILENCE EST3X Technical Reference Manual...
Page 27 Acknowledges all current events. The LED indicates the function and LED is active. [1] The control panel buzzer can be configured to resound at a regular interval to remind the operator that the panel has been silenced. EST3X Technical Reference Manual...
Page 28: System Status Indicators
LCD screen indications The LCD screen on the user interface provides information relevant to the current functional condition of the control panel. There are two screen modes: system normal and system off-normal. EST3X Technical Reference Manual...
Page 29 “Most Recent Event” section. Note: The off-normal screen (event message screen) only displays when events are activated. It does not display when events are restored. EST3X Technical Reference Manual...
Page 30: Event Message Queues
Alarm Queue Event message queues The EST3X control panel dynamically maintains 1,000 most recent, highest priority event messages across the four queues. An individual queue can hold 999 messages. The queues display at the bottom of the event message screen (see Figure 5).
Page 31 The second line displays the message text, which is either the address of the point that activated the event or, if programmed, a location description. Figure 6: Event message EST3X Technical Reference Manual...
Page 32: User Access Levels
Alternate message route (activate) • Primary sensitivity (restore) • Primary message route (restore) • Change time (program) • Change date (program) • Security devices (bypass/unbypass) • Security partitions (arm/disarm) • Change password for level 1 (program) EST3X Technical Reference Manual...
Page 33: Command Menus
44. Queue Menu The Queue Menu allows you to view details of a selected event message and to view messages that are stored in queues by type (alarm, supervisory, trouble, and monitor). EST3X Technical Reference Manual...
Page 34: Main Menu
Displays the Reports Menu Program None Displays the Program Menu Test None Displays the Test Menu Security [1] None Displays the Security Menu [1] Only available when the security control function is enabled in the 3-SDU. EST3X Technical Reference Manual...
Page 35: Status Menu
[1] Only available when the security control function is enabled in the 3-SDU. Enable Menu All components are enabled at power-up unless programmed otherwise. Use the commands on the Enable Menu to place parts of the system that have been disabled back into service. EST3X Technical Reference Manual...
Page 36: Disable Menu
Disable Menu selection descriptions Selection Access level Description Back None Returns to the previous menu Exit Menu None Returns to the event message screen. Device Disables a device or circuit; requires the panel, card, and device address EST3X Technical Reference Manual...
Page 37: Activate Menu
The Set priority does not reset the device’s priority counters. • Latch: Overrides low, medium, and high priority commands and forces the device to the desired state. The Latch priority does reset the device’s priority counters. EST3X Technical Reference Manual...
Page 38 Latch Low Priority Medium Priority High Priority • Slow Blink: Select one of the states from the Output Priority Menu (see the priority states described in “Steady” above). Latch Low Priority Medium Priority High Priority EST3X Technical Reference Manual...
Page 39 RS-232 connection. • This function should only be used by the installer or service provider. Changes to the fire alarm system must be tested and may require local authority approval. EST3X Technical Reference Manual...
Page 40: Restore Menu
Restores the output state of an LED from on to an inactive state. Select one of the states from the Output Priority Menu. Requires a panel, card, and device address. • • Latch • Low Priority • Medium Priority • High Priority EST3X Technical Reference Manual...
Page 41: Reports Menu
Requires a panel address. You can select to display or print the report. • Dirty devices > 20%: Lists all addressable smoke detectors that have a %Dirty value 20% and greater. A EST3X Technical Reference Manual...
Page 42 Note: If “Fully Programmable” was selected in the 3-SDU for the MODCOM setting, the panel will report that it is noncompliant. However, individual rules could have been written in the 3-SDU that make it compliant. EST3X Technical Reference Manual...
Page 43: Program Menu
The command can be issued to a single panel or all panels. Caution: This command is for use only by an authorized service technician. Clearing the panel history file means that all history data for the panel is permanently deleted. EST3X Technical Reference Manual...
Page 44: Test Menu
[2] Prealarm means the secondary active state of an input device, when supported. For example, some security devices have a secondary state, such as a security tamper. This command allows you to test the device. EST3X Technical Reference Manual...
Page 45: Security Menu
Chapter 2: Product description Security Menu Use the commands on the Security Menu to set the device bypass and monitor state of a security partition when the EST3X control panel is integrated with an EST3 life safety network that includes security features. Note: The Security Menu is only available when the security control function is enabled in the 3-SDU.
Page 46 Chapter 2: Product description EST3X Technical Reference Manual...
Page 47: Operating Instructions
Chapter 3 Operating instructions Summary This chapter provides instructions for operating the fire alarm system from the EST3X control panel’s user interface. Content Operating states 39 Silencing the panel buzzer 47 Normal state 39 Silencing alarm signals 47 Alarm state 39...
Page 48 Setting the system time and date 71 Setting the time 71 Setting the date 71 Configuring holiday lists 72 Control-display modules 72 Disabling and enabling control- display modules 74 Disabling and enabling control- display module elements 74 EST3X Technical Reference Manual...
Page 49: Operating States
Chapter 3: Operating instructions Operating states The EST3X control panel operates in the normal, alarm, disable, supervisory, trouble, monitor, test, and drill states. Normal state The system operates in the normal (or quiet) state in the absence of any events.
Page 50: Disable State
The control panel enters the supervisory state when a point signals a supervisory event. Output of the supervisory state Upon entering the supervisory state, the control panel: • Activates the common supervisory contacts on the SFS1-CPU EST3X Technical Reference Manual...
Page 51: Trouble State
Turns on the GND Fault LED if the trouble is an earth ground fault If the point is an alarm, supervisory, or monitor zone and a control-display module is installed, the control panel also flashes the zone’s Trouble LED on the module. EST3X Technical Reference Manual...
Page 52: Monitor State
When a member of an active service group signals a trouble event, the control panel executes the service group’s trouble test response Note: If you do not program a trouble test response, the control panel executes the active test response instead. EST3X Technical Reference Manual...
Page 53: Control Panel Power Up
Control panel power up Initial power up When you power up the EST3X control panel for the first time, the LCD may begin to show event messages on the screen as the SFS1-CPU microprocessor begins communicating with devices. You can use the Panel Silence button to silence the buzzer and the Acknowledge button to acknowledge any events.
Page 54: Using The Rotary Controller
151 for Initial and Reacceptance testing. Using the rotary controller The rotary controller on the EST3X user interface replaces the up, down, and enter keys found on other user interfaces. Turning the rotary controller allows you to scroll through event messages on the LCD screen, menus and lists, and...
Page 55: Selecting Menus And Commands
Backspacing In an address field, you can backspace to a previous number by turning the rotary controller to scroll to the “<” character and then pressing the dial. You can then reenter the number. EST3X Technical Reference Manual...
Page 56: Accessing The Queue Menu
Accessing the Main Menu The Main Menu is directly accessed from the system normal screen or Queue Menu when the system is off-normal. To access the Main Menu from the system normal screen: 1. Click the rotary controller. EST3X Technical Reference Manual...
Page 57: Silencing The Panel Buzzer
Menu. Silencing the panel buzzer The control panel EST3X sounds the panel buzzer when an event message is posted into one of the event message queues. Pressing the Panel Silence button or acknowledging the event message silences the buzzer. The panel buzzer automatically re-sounds when a new event message is posted or when the panel trouble resound timer expires (typically 24 hours).
Page 58: Acknowledging Events
Pressing the Acknowledge button places a check mark and the word “Acknowledged” to the right of the event. The LED stops flashing and the panel silences after all events have been acknowledged. To acknowledge an event: 1. Press the Acknowledge button. EST3X Technical Reference Manual...
Page 59: Resetting The Fire Alarm System
To restart the fire alarm system: 1. Access the Main Menu, and then click Program. 2. Click Restart. 3. Click By Panel, and then enter the panel address. — or — Click All Panels. 4. Enter the access level password. EST3X Technical Reference Manual...
Page 60: Clearing The Alarm History
To view the details of an event message: 1. Scroll to the desired event message. 2. Click to display the Queue Menu, and then click Details. Figure 8: Event message details for a device activation EST3X Technical Reference Manual...
Page 61: Viewing Reports
If you select the monitor event, then press Details, the instruction text is displayed. Viewing reports System reports are used to check the current condition or history of the EST3X life safety network. A report can be displayed on the LCD screen or printed to a local printer.
Page 62: Abnormal Points Report
Click Print Locally, select the printer, and then click again to exit the screen. Device maintenance reports A set of device maintenance reports are available to help you determine if any addressable smoke detector devices require maintenance. Each report gives you EST3X Technical Reference Manual...
Page 63: History Report
The history report lists the last 1,000 events or operator instructions processed by the control panel or since its history was cleared. The event or system command name, address, time and date of occurrence, and the source that initiated the event or command are included. EST3X Technical Reference Manual...
Page 64: System Revisions Report
Shows the SFS1-CPU Main Board firmware version number. 3-SDU Shows the SDU version number. Audio DB If a supplementary audio feature is installed, shows the database version number. SDU PRJCT Shows the SDU project (database) version. EST3X Technical Reference Manual...
Page 65 4. Click Display and view initial system information. Turn the rotary controller to view information on installed cards. When finished, click or press the Acknowledge button to exit the screen. — or — Click Print Locally, select the printer, and then click again to exit the screen. EST3X Technical Reference Manual...
Page 66: Disabling And Enabling Devices
Disabling and enabling devices Devices include input and output circuits, detectors, and modules. Disabling a device isolates it from the system. While the device is disabled, the EST3X control panel logs the status change signals, but is prevented from processing the signals until the device is enabled.
Page 67: Disabling And Enabling Option Cards
Option cards can include hardware layer cards and modules, and operator layer control-display modules. Disabling a card isolates it from the system. While the card is disabled, the EST3X control panel logs the status change signals, but is prevented from processing the signals until the card is enabled.
Page 68: Disabling And Enabling Logic Groups
Disabling a group isolates it from the system. While the group is disabled, the EST3X control panel is prevented from processing status change signals from every device in the group until the device is enabled. For example in a Zone group, the control panel does not activate an alarm event when you activate a disabled detector, but it will after the detector is enabled.
Page 69: Disabling And Enabling System Time Controls
3. Enter the access level password. To enable a time control: 1. Access the Main Menu, and then click Enable. 2. Click Time Control, and then click the desired time control. 3. Enter the access level password. EST3X Technical Reference Manual...
Page 70: Activating Alarm Signals Manually
Chapter 3: Operating instructions Activating alarm signals manually The EST3X drill feature lets you activate alarm signals manually without putting the panel into alarm. When you activate a drill, all audible alarm signals turn on and, if configured, all visual alarm signals, but other automatic fire alarm responses are not activated.
Page 71: Testing Alarm Input Devices
1. Access the Main Menu, and then click Test. 2. Click Start Test, and then click the desired Service group. 3. Enter the access level password. To cancel the alarm input device test: 1. Access the Main Menu, and then click Test. EST3X Technical Reference Manual...
Page 72: Changing Output States
1. Access the Main Menu, and then click Activate. 2. Click Relay, and then click the desired output priority. 3. Enter the panel, card, and device address of the relay. 4. Enter the access level password. EST3X Technical Reference Manual...
Page 73: Changing The Output State For An Audio Amplifier
4. Enter the access level password. 5. Return to the Restore Menu, and then select Relay. 6. Select the desired output priority. 7. Enter the panel, card, and device address of the Signature Series amplifier card. EST3X Technical Reference Manual...
Page 74: Switching The Smoke Detector Alarm Sensitivity Threshold
Most: Activates an alarm event when the smoke level reaches approximately 1.0 %/ft obscuration (0.7 %/ft for ionization detectors) • More: Activates an alarm event when the smoke level reaches approximately 2.0 %/ft obscuration (1.0 %/ft for ionization detectors) EST3X Technical Reference Manual...
Page 75: Changing Event Message Routing
However, you can manually switch event message routes using the command menus. Changing the event message routing To activate alternate message routing: 1. Access the Main Menu, and then click Activate. 2. Click Alt Message Route. 3. Enter the access level password. EST3X Technical Reference Manual...
Page 76: Changing Access Level Passwords
1. On the Main Menu, choose Program. 2. On the Program Menu, choose Edit Password. 3. Click the target access level. 4. Enter the password for the controlling access level. 5. Enter the new password for the target access level. EST3X Technical Reference Manual...
Page 77: Changing The Lcd Screen Language
Through the RS-232 terminal block on the main board (requires a separately ordered DB-9 programming cable, P/N 260097) Note: This function should only be used by the installer or service provider. Changes to the fire alarm system must be tested and may require local authority approval. EST3X Technical Reference Manual...
Page 78: Ethernet Download
1. Connect one end of a Cat 5 or Cat 5e standard Ethernet cable to the RJ-45 jack on the SFS1-CPU. See Figure 9. 2. Connect the other end of the cable to the RJ-45 jack on the computer with the project database. EST3X Technical Reference Manual...
Page 79: Rs-232 Download
Chapter 3: Operating instructions 3. From the EST3X control panel, access the Main Menu, and then click Activate. 4. Click Remote Write Unlock. 5. Click By Panel, and then enter the panel address and access level password. — or —...
Page 80: Using A Tcp/Ip Connection To Read From The Panel
To prevent reading from the panel: 1. From the Main Menu, choose Activate. 2. Choose Remote Read Lock. 3. Choose By Panel, and then enter the panel address (PP). — or — Choose All Panels. 4. Enter the access level password. EST3X Technical Reference Manual...
Page 81: Setting The System Time And Date
Setting the date Use the Change Date command on the Program Menu to set the system clock for the current date. Note: On NFPA 72 systems, the Change Date command is not available at access level 2. EST3X Technical Reference Manual...
Page 82: Configuring Holiday Lists
3. Click the desired holiday, and then press the Acknowledge button to return to the previous screen. 4. Enter the access level password. Control-display modules 4X Series control-display modules provide additional operator interface capability. They can be mounted on any of the last three card address spaces on EST3X Technical Reference Manual...
Page 83 “on.” The interlocked mode is commonly used for hands- off auto control of HVAC systems. An interlocked button in the “on” state can be turned “off” without activating a second button by pressing the “on” button EST3X Technical Reference Manual...
Page 84: Disabling And Enabling Control-Display Modules
Disabling and enabling control-display switches To disable a control-display switch: 1. Access the Main Menu, and then click Disable. 2. Click Switch, and then enter the panel, card, and device addresses. 3. Enter the access level password. EST3X Technical Reference Manual...
Page 85: Led
Medium Priority: Forces a device to the desired state and adjusts the medium priority counter accordingly. • High Priority: Forces a device to the desired state and adjusts the high priority counter accordingly. To change the LED output state: 1. Access the Main Menu, and then click Activate. EST3X Technical Reference Manual...
Page 86: Guard Patrols
The system designer has assigned a minimum and maximum time allowance for the guard to go between any two guard stations. If the guard arrives too early, too late, or at the wrong station, an active guard patrol event is generated. EST3X Technical Reference Manual...
Page 87: Starting A Guard's Tour
3. Enter your access level password. Ending a guard’s tour A guard patrol tour is automatically ended when all stations on the route have been successfully operated within the allowable time period and in the proper sequence. EST3X Technical Reference Manual...
Page 88: Clearing A Guard Patrol Alarm
To enable a guard patrol group: 1. Access the Main Menu, and then click Enable. 2. Click Group, and then select Guard Patrol. 3. Click the group from the group list. 4. Enter the access level password. EST3X Technical Reference Manual...
Page 89: Supplementary Applications
Using the 3X-PMI paging microphone 89 Remote annunciation 89 LCD model remote annunciator controls and indicators 91 Integrated EST3 network 94 Security device partitions 94 Bypass state 96 Building management system communication 96 FireWorks communication 97 EST3X Technical Reference Manual...
Page 90: Digital Audio Subsystem
The digital audio subsystem consists of a variety of signal sources, integral amplifiers, and control software. The 3X-PMI Paging Microphone Interface adds controls for emergency voice and alarm communications to your EST3X life safety system. The 3X-PMI interface is designed so that when an alert page is issued the page signal automatically overrides any other signals.
Page 91: Network Audio Riser Source
The eight signal sources in digital format are then combined together as selected by the system designer using a multiplexer. All command and control signals for the audio system are distributed over the network data riser. EST3X Technical Reference Manual...
Page 92: Amplifiers
In response to an alarm, selected audio amplifiers have been connected to the required audio channels. Note in the example that two different audio signals are being broadcast simultaneously. EST3X Technical Reference Manual...
Page 93 • The backup amplifier will back up a failed amplifier if it was being used for Page, EVAC, or Alert. It will not back up an amplifier being used on an Auxiliary or General channel. EST3X Technical Reference Manual...
Page 94: Audio Signal Priority
For Alert, the amplifier uses its 1 kHz 20 bps tone. Audio signal priority During system configuration, each of the eight available audio channels is assigned one of the five available types listed in Table 21 on page 85. The Page, EST3X Technical Reference Manual...
Page 95 The figure shows the system in the normal page mode, with the zoned audio amplifiers processing EVAC signals on the 1st and 3rd levels, and a page signal on the 2nd level. EST3X Technical Reference Manual...
Page 96 A Selective Page is issued by pressing a display-control button that is assigned to selected audio zones. The action temporarily transfers the selected amplifiers to the page channel while the page is active, distributing the page signal only to selected audio zones. Figure 16: Page mode signal flow EST3X Technical Reference Manual...
Page 97 Any amplifier connected to the page, auxiliary or general audio channels will receive the page. The EVAC and alert channels are connected to their respective signal sources, as in the normal mode. EST3X Technical Reference Manual...
Page 98: Testing The Audio System Integrity
3. Enter your access level password. 4. When finished, access the Main Menu, and then click Restore. 5. Click Audio Message, and then enter the panel, card, device, and channel addresses. 6. If required, enter your access level password. EST3X Technical Reference Manual...
Page 99: Remote Annunciation
Remote annunciation R-Series remote annunciators communicate with the EST3X control panel over the RS-485 riser. They provide common control switches, system status indicators, zone event messages, and zone status indicators at remote locations throughout the protected premises.
Page 100 RLED24 Remote annunciator LED expander with 24 pairs of programmable LEDs. The top 12 pairs are dedicated red-over-yellow LEDs. The bottom 12 pairs can be configured in the 3-SDU as red-over-yellow LEDs or as yellow-over-yellow LEDs. EST3X Technical Reference Manual...
Page 101: Lcd Model Remote Annunciator Controls And Indicators
Controls Enabled Ack/Silence Lamp Test Note: Items 6 through 8 are excluded from the RLCD. Table 23: LCD model remote annunciator indicators and controls Item Description LCD screen Displays system status, event messages, and event message details. EST3X Technical Reference Manual...
Page 102 Power LED Green LED indicates the annunciator is energized. [1] Control and indicator is not on the RLCD remote annunciator. EST3X Technical Reference Manual...
Page 103 Item 4 is excluded from the RLED24. Table 24: LED model remote annunciator and expander controls and indicators Item Description Zone description label User-defined zone or device description Active LED Red LED indicates the zone or device is in alarm state EST3X Technical Reference Manual...
Page 104: Integrated Est3 Network
[1] Controls and indicators are not on the RLED24 remote expander. Integrated EST3 network When your EST3X system is part of an EST3 life safety network, you can take advantage of the EST3 network’s Mass Notification Service, ULC Remote and Central Station Service, and the following UL/ULC Security Services: •...
Page 105 Acknowledge button to exit the Partition command. To set a partition monitoring state: 1. Access the Main Menu, and then click Security. 2. Click Partition, and then click the desired command. 3. Click the appropriate partition. 4. Enter the access level password. EST3X Technical Reference Manual...
Page 106: Building Management System Communication
FSB-PC2 or FSB-PCLW Communication Bridge. These field server bridges are ancillary devices that provide a communication bridge between an EST3 or an EST3X systems and a building management system (BMS) by converting the EST control panel External Communications Protocol into supported serial and Ethernet protocols.
Page 107: Fireworks Communication
The communication bridge mounts on a separately ordered bracket (FSB-BRKT2) that can be installed on the side of an SFS1-ELEC chassis in an EST3X cabinet or in an MFC-A external enclosure. You can configure your system for communication between a same BMS and a single EST control panel or multiple control panels in your network.
Page 108 Chapter 4: Supplementary applications EST3X Technical Reference Manual...
Page 109: Installation
Fiber optics 125 Preliminary field wiring testing 128 3-MODCOM Modem Communicator module 130 Line types 130 Central Monitoring Station dialing 130 Call timers 130 Transmission process 131 Installing the 3-MODCOM 132 Failover operation 136 Monitoring and diagnostics 136 EST3X Technical Reference Manual...
Page 110 Configuring the printer 137 Wiring 138 System printer standby power supply 140 Connecting a CDR-3 for coded tone output 140 Configuring a CDR-3 for coded tone output 141 R-Series annunciator DIP switch settings 145 Runtime errors 146 EST3X Technical Reference Manual...
Page 111: Ul 864 Notification Appliance Circuit (Nac) Signal Synchronization
3-ZA20 and 3-ZA40 Emergency evacuation signals are synchronized on a “per amplifier modules circuit” basis when you use G1M or G1M-RM Genesis Signal Master modules, and Genesis notification appliances. EST3X Technical Reference Manual...
Page 112: Typical Circuits
Separating the visible and audible devices is optional and may not be required for your project. Refer to the Genesis Signal Master installation sheets for additional configurations and wiring details. EST3X Technical Reference Manual...
Page 113 ZONE 2 Temporal horn/strobe Temporal and G1M module horn/strobe Normal Active 15 k Ω EOLR JP3 JP4 15 k Ω EOLR NAC 5 10 9 Device type: Visible Label: Zone_2_Strobes NAC 6 Device type: Audible Label: Zone_2_Horns EST3X Technical Reference Manual...
Page 114 The SIGA-CC1S modules provide signal synchronization for both NACs. As in Figure 20, this configuration allows the audible appliances to be silenced independently of the visible appliances. This operation is optional and may or may not be required for your project. EST3X Technical Reference Manual...
Page 115 Chapter 5: Installation Figure 22: Typical SIGA-CC1S NAC wiring EST3X Technical Reference Manual...
Page 116 The SIGA-CC1S provides signal synchronization compatible with the operation of the G1M module. The advantage to using a SIGA-CC1S module is that the NAC would then be synchronized with other NACs on the Signature data loop. EST3X Technical Reference Manual...
Page 117 Chapter 5: Installation Figure 23: Typical SIGA-CC1 NAC wiring EST3X Technical Reference Manual...
Page 118 Configure Sense 1 and Sense 2 operation for Genesis Master mode and NAC operation for “continuous.” See the documentation received with the auxiliary/booster supply for details. • Use a CC1S if you want to maintain signal synchronization across multiple auxiliary/booster supplies on the same Signature loop. EST3X Technical Reference Manual...
Page 119 Chapter 5: Installation Figure 24: Using an auxiliary/booster supply for horn silence capability with two wires EST3X Technical Reference Manual...
Page 120: Creating An Initial Startup Database
Use the 3-SDU software to create the initial startup database. The 3-SDU provides extensive instructions for configuring, programming, and testing your EST3X life safety system. The initial startup database is useful for the following: • Assigning panel addresses when you bring up the system for the first time •...
Page 121: System Installation Sequence
1. Unpack the equipment and make sure it is not damaged. Be sure to remove the installation sheets from component accessory bags. 2. Install the CAB6B Backbox at the required location and pull all the required conductors through the conduit into the backbox. EST3X Technical Reference Manual...
Page 122: Component Installation
Figure 25 on page 113 shows the footprint areas for each component. Refer to the installation sheet that came with the component for installation instructions. EST3X Technical Reference Manual...
Page 123 (3) 3X-PMI Paging Microphone Interface mounting area (4) Standby battery compartment area (5) SFS1-ELEC Chassis Electronics Assembly mounting area Note: Route nonpower-limited wiring on the shaded area of the cabinet and power-limited wiring on the non-shaded area. EST3X Technical Reference Manual...
Page 124: Ps10-4B Power Supply Board
TB1 Mains input wiring Data ribbon cable connector TB2 NAC/AUX wiring Power supply cable connector TB3 Battery wiring On-board terminals and connectors facilitate connection to the SFS1-CPU, mains input wiring, NAC/AUX wiring, and battery wiring. The 24 VDC rechargeable EST3X Technical Reference Manual...
Page 125 NAC/AUX circuits configured as auxiliary power outputs must be turned on and off using a startup rule. For example, a rule is needed to turn them off during an AC power failure if they are powering non-life safety devices and you want to preserve battery life. EST3X Technical Reference Manual...
Page 126: Sfs1-Elec Chassis Hardware And Operator Layer Components
4X Series control-display modules, each of which attaches to the option card behind it. Refer to the SFS1-ELEC Chassis Electronics Assembly Installation Sheet (P/N 3101766) for connecting field wiring and for specifications. EST3X Technical Reference Manual...
Page 127 One main board is required for each panel in an EST3X network. The SFS1-CPU is always installed on the first three card slots.
Page 128: Digital Audio Subsystem
Only one 4X-LCD(-LC) is required to provide a point of control for the entire network. However, additional user interfaces can be added to any EST3X control panel in the EST3X network to provide additional points of control. Refer to the 4X-LCD and 4X-LCD User Interface Installation Sheet (P/N 3101767) for installation instructions and specifications.
Page 129 See “Digital audio subsystem” on page 80 for detailed information on the 3X-PMI. Refer to the 3X-PMI Paging Microphone Interface Installation Sheet (P/N 3101875) for installation instructions and specifications. Figure 28: 3X-PMI Paging Microphone Interface (1) 3X-PMI Paging Microphone Interface EST3X Technical Reference Manual...
Page 130 The module installs in a single-gang electrical box or mounts on the MN-BRKT1. See Figure 29 on page 121 for field wiring. Refer to the MN-PASM2 Preamp Supervision Module Installation Sheet (P/N 3101950) for installation instructions and specifications. EST3X Technical Reference Manual...
Page 131: Standby Batteries
Up to two 17 Ah sealed lead acid standby batteries can be housed on the battery tray in the CAB6B backbox (see Figure 25 on page 113 for the compartment location). Install batteries larger than 17 Ah in a separate listed enclosure. EST3X Technical Reference Manual...
Page 132: Connecting Auxiliary/Booster Power Supplies
AC power failures. Mount the SIGA-CC1 and SIGA-CT1 inside the booster supply cabinet as described in the technical documentation received with booster supply. Connect field wiring as shown in Figure 31 on page 124. EST3X Technical Reference Manual...
Page 133 Personality code 5: signal - supervised output (Class B) Text 1 = REMOTE_SUPPLY Text 2 = SENSE_1 SIGA-CT1 Model = CT1 Device Type = ACFAIL Personality code 3: active - NO nonlatching (Class B) Text 1 = REMOTE_SUPPLY Text 2 = AC_FAILURE EST3X Technical Reference Manual...
Page 134 (9) Install a PAM-1 or equivalent listed relay only when (4) Active required to supervise the 200 mA AUX circuit wiring (5) Blue (10) Data Out, Signature loop to next device (6) Orange (11) Data In, Signature loop from previous device EST3X Technical Reference Manual...
Page 135: Tamper Switch
(3) #8-32 nut (2X) Fiber optics 3X series fiber network option modules provide a fiber optic or combination fiber optic and RS-485 communication path for up to 64 control panels on EST3X and EST3X/EST3 combination networks. EST3X network For an EST3X network, the 3X-FIB8 and 3X-FIB fiber network option modules are available, both providing fiber optic or combination fiber optic and RS-485 communication.
Page 136 • 3X-FIB Fiber Network Option Module: Provides a communication path for up to 64 EST3X control panels on an EST3X network. This module also provides integration with an EST3 network (see below). Refer to the 3X-FIB Fiber Network Option Module Installation Sheet (P/N 3101971) for installation instructions, wiring, and specifications.
Page 137 Chapter 5: Installation Figure 33: Combination EST3X/EST3 fiber optic network cabling EST3X Technical Reference Manual...
Page 138: Preliminary Field Wiring Testing
18 kΩ (250 devices) and 4.5 MΩ (1 device) when devices are installed. 3. Measure the resistance between each conductor and earth ground. The circuit resistance between a conductors and earth ground should be infinite. EST3X Technical Reference Manual...
Page 139 3. Measure the resistance between each conductor and earth ground. The circuit resistance between a conductors and earth ground should be infinite. RS-485 communication The EST3X control panel uses RS-485 circuits for the: circuits • Network data riser •...
Page 140: 3-Modcom Modem Communicator Module
3-MODCOM Modem Communicator module The 3-MODCOM Modem Communicator is a hardware layer option card that connects the EST3X system to a switched telephone network. The module has two 8-position modular jacks for connecting two loop-start lines. The 3-MODCOM can support 255 accounts and communicate with 80 receivers in any of the following protocols: •...
Page 141: Transmission Process
If still unable to contact the receiver, the module continues to alternate lines and numbers until the configured maximum number of attempts have been reached. If the maximum number of attempts is reached, EST3X Technical Reference Manual...
Page 142: Installing The 3-Modcom
One jack is required for each telephone line. The 8-position jack has a special jumper between terminals 1 and 4, and 5 and 8. This jumper is in place when the plug is removed from the jack. EST3X Technical Reference Manual...
Page 143 To minimize the possibility of jamming, we recommend that the customer order a separate, unlisted number for exclusive use of the 3-MODCOM module. The customer should keep this number confidential. In the case of the two-line dialer, two premises EST3X Technical Reference Manual...
Page 144 For the installation of a system in compliance with NFPA 72, the 3-MODCOM must be connected to loop-start telephone lines. If the site has ground-start lines, two separate loop-start lines must be installed for the dialer. EST3X Technical Reference Manual...
Page 145 After the CMS has programmed the central monitoring database, perform transmission tests as required by the local authority having jurisdiction (AHJ) and CMS. Note: Transmission failures are latched at the panel. You must reset the panel in order to clear them. EST3X Technical Reference Manual...
Page 146: Connecting A Pt-1S Serial Printer
See “LED indicator diagnostics” on page 180 for the LED states. Connecting a PT-1S serial printer The PT-1S serial printer can be connected to an EST3X control panel to provide a printout of system events such as status changes, active events, and reports.
Page 147: Wiring Specifications
On [1] [1] Recommended baud rate is 4800 bps Configuring the printer 1. Configure the printer port using the 3-SDU. 2. Remove the screw from the DIP switch cover on the back of printer. See Figure 35. EST3X Technical Reference Manual...
Page 148: Wiring
(6.1 m) of the equipment to which they connect. Enclose wiring in conduit or equivalent protection against mechanical injury. • Serial connection requires UL Listed and CSA Approved shielded RS-232C cable. Cable length may not exceed 50 ft. (15.2 m). EST3X Technical Reference Manual...
Page 149 2. Wire the other end of the cable to TB5 on the SFS1-CPU. See Figure 36. Figure 36: Typical RS-232 wiring for serial printers (1) For a supervised serial printer (3) Front view of male DB-25 connector (2) For an unsupervised serial printer EST3X Technical Reference Manual...
Page 150: Connecting A Cdr-3 For Coded Tone Output
EAEC card to provide a coded or march time tone to the audio system. See Table 29 for power and installation specifications. Table 29: CDR-3 power and installation specifications Input power Input voltage 24 VDC nominal Standby current 60 mA Current Standby 60 mA Alarm 100 mA EST3X Technical Reference Manual...
Page 151: Configuring A Cdr-3 For Coded Tone Output
For a combined CDR-3 and PT-1S printer application: Set the CDR-3 baud rate DIP switches S1-7 and S1-8 (see Figure 38), and the PT-1S baud rate to the same rate. The recommended rate is 2400 bps. EST3X Technical Reference Manual...
Page 152 3X-PMI EAEC auxiliary input gain as necessary. Figure 38: CDR-3 parity and baud rate settings S1-6 S1-7 S1-8 Description – – No parity – 1200 baud – 2400 baud – 4800 baud (factory default) – 9600 baud EST3X Technical Reference Manual...
Page 153 Figure 39: CDR-3 wiring for coded tone output (1) Network option card installed (4) To next device (2) Network option card not installed (5) For CDR-3 control of notification (3) From Signature controller or previous device appliance circuits EST3X Technical Reference Manual...
Page 154 (2) Network option card not installed PT-1S printer (front view) (3) From Signature controller or previous device (7) DB-25 male connector to supervised (4) To next device PT-1S printer (front view) (5) For CDR-3 control of notification appliance circuits EST3X Technical Reference Manual...
Page 155: R-Series Annunciator Dip Switch Settings
For correct operation, the R-Series remote annunciator must be configured with a unique address and must be in communication with the EST3X fire alarm control panel. These settings are configured from the DIP Switch SW1 on the back of the annunciator (see Figure 41).
Page 156: Runtime Errors
One source of runtime errors occurs during the initial database download. Until all portions of the database are downloaded into the SFS1-CPU memory, errors will be generated. Most of these errors will resolve themselves as the system progresses through download stages. EST3X Technical Reference Manual...
Page 157 Check the download connections and 3-SDU settings, and then retry the download Block number Check the download connections and 3-SDU settings, and then retry the download Version mismatch The downloaded firmware does not agree with the version setting; correct the mismatch EST3X Technical Reference Manual...
Page 158 Chapter 5: Installation EST3X Technical Reference Manual...
Page 159: Preventive Maintenance And Testing
Chapter 6 Preventive maintenance and testing Summary This chapter provides instruction for maintaining and testing the EST3X life safety system. Content Visual inspections 150 Routine maintenance and tests 151 Required tools 152 Signature device maintenance tips 152 Signature detector cleaning procedures 153...
Page 160: Visual Inspections
Inspect the equipment for any visible signs of damage or other changes that may adversely affect performance. Heat detectors Semiannually Inspect the equipment for any visible signs of damage or other changes that may adversely affect performance. Clean if necessary. EST3X Technical Reference Manual...
Page 161: Routine Maintenance And Tests
NFPA 72 and ULC 524 requirements. This includes testing all alarm and supervisory alarm initiating devices and circuits, and any off premise connections. • Panel operation should be verified in the alarm, supervisory, and trouble modes. EST3X Technical Reference Manual...
Page 162: Required Tools
When the message is transmitted, replace the CO sensor module. To determine the months until end-of-life, run a maintenance report from the LCD screen. See “Device maintenance reports” on page 52. EST3X Technical Reference Manual...
Page 163: Signature Detector Cleaning Procedures
5. After the detector has been cleaned, restore it to proper operation (see “Disabling and enabling devices” on page 56). 6. Run the detector sensitivity report to print a list of detector sensitivity and compensation readings and to verify the effectiveness of the cleaning. EST3X Technical Reference Manual...
Page 164 5. Using a soft brush and vacuum, carefully remove any dust and dirt from around the sensor chambers. 6. After the detector has been cleaned, reassemble and restore it to proper operation (see “Disabling and enabling devices” on page 56). EST3X Technical Reference Manual...
Page 165: Signature Series Detector Component Replacement Procedures
SIGA2 smoke chamber SIGA2 smoke detectors have replaceable smoke chambers. Replace the chamber if after cleaning the detector the control panel still indicates a dirty detector. Refer to the installation sheet received with the smoke chamber for instructions. EST3X Technical Reference Manual...
Page 166: Maintenance Schedule
Emergency voice/alarm communication equipment Annually Remote annunciators Annually Smoke detectors Annually Heat detectors Annually Fire alarm boxes Annually Fire extinguishing systems or suppression systems Annually Guard tour equipment Annually Interface equipment Annually Audible notification appliances Annually EST3X Technical Reference Manual...
Page 167 Verify that the alarm signals remain active for at least 5 minutes for horns and strobes or 15 minutes for audio in the USA, whichever is greater. EST3X Technical Reference Manual...
Page 168 4. Run a Device Maintenance Report on all the smoke detectors in the system. Verify that all sensitivity levels fall within acceptable limits. Keep a printed copy for your records. EST3X Technical Reference Manual...
Page 169 Duct detectors Visual inspection Inspect the equipment for any visible signs of damage or other changes that may adversely affect performance. Initial and Activate the equipment. Make sure the control panel Reacceptance correctly identifies the device. EST3X Technical Reference Manual...
Page 170 LED flashes and the control panel displays an alarm message that correctly identifies the module. Semiannual Activate the module. Verify that the module’s red LED flashes and the control panel displays an alarm message that correctly identifies the module. EST3X Technical Reference Manual...
Page 171 LED flashes and the control panel displays a supervisory message that correctly identifies the module. Releasing modules Visual inspection Verify that DS2 flashes and DS4 is on. Ensure there are no changes that may adversely affect equipment performance. EST3X Technical Reference Manual...
Page 172 Type 2 requirements, measure and record the maximum output of each appliance when the audible emergency evacuation signal is on. Set the sound level meter in accordance with ANSI S3.41 and use the time-weighted characteristic F (FAST). EST3X Technical Reference Manual...
Page 173 4. If the module is configured to transmit alarm signals and trouble signals over the same dedicated pair of wires, create a trouble condition, and then activate an alarm initiating device. Verify that the off-premises location EST3X Technical Reference Manual...
Page 174 Verify that the control panel indicates a DACT trouble message. • Verify that the DACT transmits the trouble signal to the supervising station within 4 minutes of detecting the fault. Semiannual Same as initial and reacceptance testing. EST3X Technical Reference Manual...
Page 175: System Trouble And Maintenance Log
Chapter 6: Preventive maintenance and testing System trouble and maintenance log Date Time Event Initial EST3X Technical Reference Manual...
Page 176: Record Of Completion
You can download a copy of the form from the NFPA website (www.nfpa.org). After completing the Record of Completion form, mount it near the fire alarm panel or give it to the building representative. EST3X Technical Reference Manual...
Page 177: Service And Troubleshooting
3-OPS Off-Premises Signal module troubleshooting 179 3-IDC8/4 Initiating Device Circuit module troubleshooting 179 3-LDSM Display Support module troubleshooting 180 3-MODCOM Modem Communicator module troubleshooting 180 3X-PMI Paging Microphone Interface troubleshooting 183 Pseudo points 185 Understanding Signature data loops 198 Operation 198 EST3X Technical Reference Manual...
Page 178 Common causes of analog addressable module problems 224 Analog data loop wiring problems 225 Using the SDU Analog Addressable diagnostic tools 226 Trouble Tables diagnostics 227 Addressing faults diagnostics 229 Using HyperTerminal to troubleshoot the system 229 Setting up a HyperTerminal connection 229 EST3X Technical Reference Manual...
Page 179: System Repairs
Chapter 7: Service and troubleshooting System repairs The EST3X life safety system is made up of modular assemblies that are easily installed and maintained. Because of the modular design, component level field repairs mainly consist of isolating a fault to the circuit card in an assembly and replacing the defective card.
Page 180: Precautions
Panel restart problems The EST3X system is designed to conduct a startup interrogation of the system’s database integrity and its configured hardware. When a new CPU database is downloaded to a panel, the panel restarts and validates the database. If a database error is detected, the panel will attempt to restart, and in some cases continually restart.
Page 181: Hardware Problems
Circuit boards are sensitive to electrostatic discharge (ESD). To avoid damage, follow ESD handling procedures. The local rail modules in the EST3X life safety network are microprocessor based. The single and dual Signature loop controller modules, SFS1-CPU Main Board, 3-AADC1 Analog addressable Device Controller module, and 3X-PMI Paging Microphone Interface all have “flash”...
Page 182: Hardware Troubleshooting
6.0 A total, shared Special application 3.0 A max. per circuit 9.0 A total, shared AUX output current 6.0 A total, shared Input AC voltage 94 to 264 VAC, 50/60 Hz Battery charging current 1.5 or 3 A, selectable EST3X Technical Reference Manual...
Page 183: Sfs1-Cpu Main Board Troubleshooting
The batteries are defective SFS1-CPU Main Board troubleshooting The SFS1-CPU controls all the communication and processing of information for modules located in its cabinet. EST3X life safety network communication between SFS1-CPU modules in other cabinets is also processed by the SFS1-CPU.
Page 184 LEDs on the SFS1-CPU. Network wiring alternates between channel A and channel B, as shown below. (1) Class B network wiring one-line diagram (2) Class A network wiring one-line diagram EST3X Technical Reference Manual...
Page 185 When trying to isolate trouble on a data network or digital audio riser, remember that both shorted and open loop segments will interrupt communication between two SFS1-CPU modules. In this case, the EST3X life safety network will reconfigure and operate as two independent sub-networks...
Page 186: Fiber Network Option Module Troubleshooting
If a panel must be powered down for service, connect a backup power source to the 24 VDC terminals (TB1) on the electronics card to maintain network communication. Figure 45: Fiber optic communication LEDs B DATA A DATA (1) Transceiver RX/TX LEDs (2) Fiber optic module electronics card EST3X Technical Reference Manual...
Page 187: 4X Series Control-Display Modules Troubleshooting
The ribbon cable between the control-display and host inoperative but the host option option card is loose or defective card is working correctly • The control-display is not defined in the 3-SDU • The control-display is defective EST3X Technical Reference Manual...
Page 188: 3-Zaxx Zoned Amplifier Modules Troubleshooting
The amplifier current is limiting • The audio circuit overloaded • The input level to the 3X-PMI is too high An incorrect amplifier version • The jumpers are installed incorrectly is reported by the CPU • An incorrect model amplifier installed EST3X Technical Reference Manual...
Page 189: 3-Ops Off-Premises Signal Module Troubleshooting
An external source is configured but not connected • The circuit is overloaded • The circuit is silenced • The circuit is shorted • A polarized device is defective or reversed on the circuit • Output was not programmed EST3X Technical Reference Manual...
Page 190: 3-Ldsm Display Support Module Troubleshooting
Figure 46: 3-MODCOM LED indicators LINE LINE 1 LINE LINE 2 Label Description Label Description LINE 1 Indicates line 1 telephone activity Indicates receive activity LINE 2 Indicates line 2 telephone activity Indicates transmit activity EST3X Technical Reference Manual...
Page 191 RJ-31X jack. (The jack will accommodate a standard modular phone plug.) You should: 1. Hear a dial tone when going off-hook 2. Lose the dial tone after dialing the first digit EST3X Technical Reference Manual...
Page 192 3-MODCOM and the code being sent was correctly programmed in the CMS computer. Where a 3-MODCOM module is suspected of being faulty, try substituting a known good one that has been properly programmed. EST3X Technical Reference Manual...
Page 193: 3X-Pmi Paging Microphone Interface Troubleshooting
RX or TX and EAEC card is loose or defective LED activity on the EAEC card • The ribbon cable between the PS10-4B and EAEC card is missing • The 3X-PMI is not programmed EST3X Technical Reference Manual...
Page 194 The remote microphone is in • There is a wrong or missing EOL resistor on the microphone trouble state key input • There is no supervisory tone on the DC current for the remote microphone audio output EST3X Technical Reference Manual...
Page 195: Pseudo Points
All Call or All Call Minus switch on the 3X-PMI 0009 Alarm Silence Response CPU The system changes to the active state when an operator presses a switch that executes the Alarm Silence command EST3X Technical Reference Manual...
Page 196 The system changes to the active state when the CPU is unable to communicate with the networked CPU module in cabinet xx 0200-0222 Task xx Watchdog The system changes to the active state when Violation an EST3 task fails to execute properly EST3X Technical Reference Manual...
Page 197 0300-0399 Task xx Watchdog The system changes to the active state when Violation EST3X CPU task xx fails to execute properly Table 51: Local alarm pseudo points Address Label Source Description...
Page 198 0608 Auxiliary Port Two A short or open is detected on the port 2 serial communication circuit 0608 Data Card Fault Two 3-SSDC The LIM card on the module is missing or 3-SSDC1 loose 3-SDDC 3-SDDC1 EST3X Technical Reference Manual...
Page 199 Circuit A Failure riser circuit A 0617 Network Class A The CPU is unable to receive data on data Circuit B Failure riser circuit B 0617 DSP Supervision 3-MODCOM The DSP chip on the module failed EST3X Technical Reference Manual...
Page 200 EOL resistor • A short is detected on the audio NAC circuit • The output voltage jumper is set wrong 0624 Application Fault 3X-NET The power supply detected a fault while RS-485 testing its internal subsystems EST3X Technical Reference Manual...
Page 201 All Call Minus 3-ASU (EAEC) The All Call Minus feature activated 0658 Audio Interface 3-ASU (EAEC) There is a 3X-PMI hardware fault Failure 0659 Audio Class 3-ASU (EAEC) A short or open is detected on a riser Supervision EST3X Technical Reference Manual...
Page 202 Shorted Data Card_2 3-SSDC1 • An open is detected on a Class A loop 3-SDDC 3-SDDC1 0682 Main Board Internal The CPU on the EST3X control panel Fault detected an internal fault on the main board EST3X Technical Reference Manual...
Page 203 The number of sensors or modules attached DataCard1 3-SSDC1 to loop 1 exceeded the maximum allowed 3-SDDC 3-SDDC1 0694 Too Many Devices 3-SSDC The number of sensors or modules attached DataCard2 3-SSDC1 to loop 2 exceeded the maximum allowed 3-SDDC 3-SDDC1 EST3X Technical Reference Manual...
Page 204 RLCD, RLCD-C, The R-Series annunciator database is Supervision RLED-C, RGCI corrupt [1] Up to 30 annunciators can be configured per cabinet. The first two digits in the address column represent the annunciator number. See Table 54. EST3X Technical Reference Manual...
Page 205 0673 Mapping In Progress 3-SSDC The loop controller is currently mapping DataCard_1 3-SSDC1 the devices in the field 3-SDDC 3-SDDC1 0674 Mapping Disbled Data 3-SSDC Mapping was manually disabled Card_1 3-SSDC1 3-SDDC 3-SDDC1 EST3X Technical Reference Manual...
Page 206 3-ZAxx The panel changes to the active state when Confirmation the amplifier’s input relay selects channel 1 0004 Channel_2_Relay_ ZAxx The panel changes to the active state when Confirmation the amplifier’s input relay selects channel 2 EST3X Technical Reference Manual...
Page 207 (possible addresses are 00270001 to 00270999) 0028000x Matrix_Group xx The user-defined Matrix group has triggered an event (possible addresses are 00280001 to 00280255) 0031000x Guard_Patrol_Group xx The user-defined Guard Patrol group has triggered an event (possible addresses are 00310001 to 00310255) EST3X Technical Reference Manual...
Page 208: Understanding Signature Data Loops
The system original module. returns to normal when mapping is finished. • The communication fault for the old detector remains, when mapping is disabled. EST3X Technical Reference Manual...
Page 209 The process of isolating a problem on a Signature data loop is similar to that used on a conventional fire alarm Initiating Device Circuit (IDC). An accurate and complete wiring diagram of the loop installation is the best troubleshooting aid EST3X Technical Reference Manual...
Page 210 Other possible causes include a device failure in devices 9 through 15, failure to define them in the loop controller’s database, or failure to define them correctly in the 3-SDU. EST3X Technical Reference Manual...
Page 211 If no devices restore, the short has been isolated to the first 50% of the loop. Reconnect the previously isolated portion of the loop. If during the first isolation process some devices restored, open the loop at a location electrically farther EST3X Technical Reference Manual...
Page 212 3-SSDC1, and 3-SDDC1 loop controllers. The general location of a ground fault can be determined by viewing a Trouble Report (see “Status reports” on page 51) or by indications and messages on the control panel user interface (see Table 60). EST3X Technical Reference Manual...
Page 213 Figure 53. A similar technique is used on smoke power or module input circuits. Figure 53: Data loop ground fault isolation (1) Signature loop controller (ground fault LED Off) (2) Both conductors open insolates the ground fault (3) Ground fault EST3X Technical Reference Manual...
Page 214 • The EST3X control panel performs a ground fault test for 2 seconds at 18-second intervals. If the system is working properly, the voltage between earth ground and logic negative should be between 12.3 VDC and 16.8 VDC during the 2-second test.
Page 215 Figure 55: Detectors returned to original location IPHS, S/N 33-1 PHS, S/N 34-1 CT1, S/N 48-1 CT2, S/N 49-1 (1) Detectors returned EST3X Technical Reference Manual...
Page 216 3-SDU, the Current Status table on the Signature Series Status / Diagnostics window indicates Mapping in Progress. Once mapped, the mapping supervision function automatically correlates a panel address to a specific map location until manually changed using the SDU configuration utility. EST3X Technical Reference Manual...
Page 217 00. However, the panel reports a trouble because the actual map contains one more device than the expected map. EST3X Technical Reference Manual...
Page 218 To clear the map fault, accept the parameters of the known good device. You can change the parameters later. EST3X Technical Reference Manual...
Page 219 The details of the trouble indicate a “bad type fault”. To remove the fault, you must accept the EST3X Technical Reference Manual...
Page 220: Signature Loop Controller Troubleshooting
A detector, detector base, or module is defective • The insulation between conductors is nicked A ground fault is detected on the loop • There is a pinched wire between the device and electrical box • The wire insulation is nicked EST3X Technical Reference Manual...
Page 221 213. Notes • Do not replace factory-programmed devices such as pull stations and MM1 modules with a SIGA-CT1. • For mapping purposes, give all manual pull stations the device type Pull, regardless of their model numbers. EST3X Technical Reference Manual...
Page 222: Signature Device Troubleshooting
Stand-alone alarm or active (either input of dual input modules) Common causes of Signature Series module and device problems Common causes for Signature Series modules and devices not responding correctly or reporting trouble events are listed below. EST3X Technical Reference Manual...
Page 223: Using The Sdu Signature Series Diagnostics Tools
1. Connect the computer running the 3-SDU application to the panel that has the Signature loop controller that is in trouble. 2. Configure the Remote Read Lock setting, if using an Ethernet connection (see “Using a TCP/IP connection to read from the panel” on page 70). EST3X Technical Reference Manual...
Page 224 Press F1 to open the Help topic, which provides instructions, descriptions, and troubleshooting tips for the information provided. Refer to Table 65 for suggested corrective actions. EST3X Technical Reference Manual...
Page 225 • Check for loose wiring loop (a map rebuild was scheduled) • Check for a defective device EST3X Technical Reference Manual...
Page 226 Device chain diagnostics A chain is a list of devices connected between the Signature loop controller module and a device being interrogated during loop mapping. The chains and EST3X Technical Reference Manual...
Page 227 Device troubles diagnostics Each Signature device is equipped with a 32-bit trouble register. Should a device’s trouble bit be set at any time in the device’s history, the device and the EST3X Technical Reference Manual...
Page 228 Clean the detector. Ion quiescent too low The detector is dirty. Clean the detector. Ion value too low The detector is defective. Replace the detector. Thermal value too high The base is bad. Replace the base. EST3X Technical Reference Manual...
Page 229 From the control panel, reset the module failed supervision. panel. If the trouble recurs after 44 seconds replace the detector. CO end of life The SIGA2 detector CO Replace the module. module has reached its end of life. EST3X Technical Reference Manual...
Page 230 (the devices are not identified). In EEPROM data, non-existent The detector is not a Replace the detector. device type Signature detector. Double failure by EEPROM The detector cannot write to Replace the detector. Write Verify the flash memory. EST3X Technical Reference Manual...
Page 231 Signature Series real-time statuses The Signature Series status function is used to determine the real-time status of a Signature data loop. This function is useful in isolating and correcting faults on the loop. EST3X Technical Reference Manual...
Page 232: Analog Addressable Devices And Modules
Table 68 provides a list of possible problems that may occur with the 3-AADC1 loop controller. For detailed information on identifying and locating mapping errors, refer to “Using the SDU Analog Addressable diagnostic tool” on page 226. EST3X Technical Reference Manual...
Page 233 • If an ionization detector, it is installed in an area of extremely LCD screen high airflow • The detector is installed in area of high ambient smoke • The detector is defective EST3X Technical Reference Manual...
Page 234: Analog Device Troubleshooting
The EOL resistor value is too low • The module is defective Refer to “Using the SDU Analog Addressable diagnostic tool” on page 226 for details on how to identify and locate Analog Addressable device and module problems. EST3X Technical Reference Manual...
Page 235 If the wire capacitance is too large for the run length, the only remedies are to replace the wire with a cable having a lower capacitance per foot or to install EST3X Technical Reference Manual...
Page 236: Using The Sdu Analog Addressable Diagnostic Tools
4. From the System Sensor Status / Diagnostics window, set the communication criteria. If using an RS-232 connection, the suggested baud rate is 19200. 5. From the Cabinet list, select the appropriate cabinet. 6. From the Loop Controller list, select the appropriate controller module. EST3X Technical Reference Manual...
Page 237 If the total number of communicating devices is less then the number of installed devices and a communications fault is reported, the device in the Communications Fault column is addressed at the location shown in the Duplicate Fault column EST3X Technical Reference Manual...
Page 238 The insulation is nicked between conductors Compatibility Fault An incorrect device type is Incompatible devices are intermixed on installed the loop Dirty Head The detector needs cleaned The detector is dirty Maint Alert Perform device maintenance The device requires maintenance EST3X Technical Reference Manual...
Page 239: Using Hyperterminal To Troubleshoot The System
Before you can gather information from the control panel, you must set up a HyperTerminal connection. To set up a HyperTerminal connection: 1. Start HyperTerminal. 2. In the Connection Description dialog box, type a name for the connection in the Name box, and then click OK. EST3X Technical Reference Manual...
Page 240 7. Connect the other end of the cable to the RS-232 jack on the computer. Figure 59: RS-232 terminal block connections to the DB-9 programming cable (1) SFS1-CPU terminal connector block (2) Rear view of female DB-9 connector (3) RS-232 jack of computer EST3X Technical Reference Manual...
Page 241: Appendix A System Calculations
What you will need 242 Worksheet method 244 Equation method 245 25 or 70 VRMS NAC wire length 248 Analog addressable circuit wire length 250 Cabinet battery 250 Battery calculations 251 Fiber optic cable worksheet 255 EST3X Technical Reference Manual...
Page 242: Network Data Riser Limits
Maximum cumulative capacitance is the total capacitance of all installed copper wire used in the data network. Maximum cumulative capacitance in microfarads Wire size (AWG) At 38.4 Kbaud At 19.2 Kbaud EST3X Technical Reference Manual...
Page 243: Cable Properties
Appendix A: System calculations Cable properties Data and audio networks in an EST3X system do not require the use of shielded cable. Networks designed with twisted-pair can be about twice as long as those designed with shielded cable. The maximum length of a data network varies with the properties of the wire used.
Page 244: Signature Data Loop Wire Length
The design of the Signature data loop must not exceed either of the two measurements. • There are no restrictions placed on the wiring used for the Signature data loop. Longer wire runs may be obtained using standard (non-twisted, non-shielded) wire pairs. EST3X Technical Reference Manual...
Page 245: Determine The Maximum Allowable Branch Length
1 and the Signature controller. 3. Calculate the number of detector and module addresses. Some Signature modules require two addresses. 4. Determine the size of the wire used to construct the loop. EST3X Technical Reference Manual...
Page 246 If 1 to 5 SIGA-UMs or SIGA-MABs are installed, use Table 73. If 6 to 10 SIGA-UMs or SIGA-MABs are installed, use Table 74. If 11 to 15 SIGA-UMs or SIGA-MABs are installed, use Table 75. EST3X Technical Reference Manual...
Page 247 76–100 1493 2371 3771 1149 101–125 2631 4180 1274 6649 2027 1–25 101–125 2165 3439 1048 5470 1667 26–50 101–125 1713 2721 4328 1319 51–75 101–125 1274 2023 3218 76–100 101–125 1345 2140 101–125 101–125 1089 EST3X Technical Reference Manual...
Page 248 51–75 51–75 1030 1638 76–100 51–75 101–125 51–75 76–100 1386 2201 3501 1067 1–25 76–100 1208 1921 26–50 76–100 51–75 76–100 76–100 76–100 101–125 76–100 101–125 1–25 101–125 26–50 101–125 51–75 101–125 76–100 101–125 101–125 101–125 EST3X Technical Reference Manual...
Page 249 1929 3067 26–50 51–75 1014 1613 51–75 51–75 76–100 51–75 101–125 51–75 76–100 1323 2105 1–25 76–100 26–50 76–100 51–75 76–100 76–100 76–100 101–125 76–100 101–125 1–25 101–125 26–50 101–125 51–75 101–125 76–100 101–125 101–125 101–125 EST3X Technical Reference Manual...
Page 250 2007 3192 1–25 51–75 1128 1794 26–50 51–75 51–75 51–75 76–100 51–75 101–125 51–75 76–100 1–25 76–100 26–50 76–100 51–75 76–100 76–100 76–100 101–125 76–100 101–125 1–25 101–125 26–50 101–125 51–75 101–125 76–100 101–125 101–125 101–125 EST3X Technical Reference Manual...
Page 251: Determining The Total Loop Length
A short circuit on a Signature data loop can disable the entire loop. In order to limit the effect of a single short circuit, SIGA-IB Isolator Bases or SIGA-IM Isolator modules can be installed at strategic points on the loop. EST3X Technical Reference Manual...
Page 252: Notification Appliance Signaling Line Circuit Calculations
NAC source values For either method, you will need some fixed or calculated operating values for your specific NAC circuit source. An EST3X control panel has three possible sources. These are listed in Table 76 along with their fixed values.
Page 253 [1] The PS10-4B has an onboard boost circuit to keep battery voltage at a required value. If the battery voltage drops below the required value, the boost circuit activates. [2] These values only apply when the card is used in an EST3X control panel. The maximum voltage is the highest voltage measured at the NAC terminals.
Page 254: Worksheet Method
[2] This voltage drop is valid for regulated notification appliances only. For special application appliances, see “Equation method,” later in this topic. [3] Use the manufacturer’s published wire resistance expressed in ohms per foot. For typical values, see Table 77 on page 245. EST3X Technical Reference Manual...
Page 255: Equation Method
0.00307 0.01007 0.00314 0.01030 0.00489 0.01604 0.00499 0.01637 0.00777 0.02549 0.00795 0.02608 When performing these calculations, always refer to the actual cable supplier documentation and use the actual Ω/ft (or Ω/m) for the cable being used. EST3X Technical Reference Manual...
Page 256 Va is the lowest operating voltage specified on the appliance installation sheet. 4. Calculate the maximum resistance (Rmax) the wire can have. Rmax = Vd / Itot Where: Vd = voltage drop Itot = total current EST3X Technical Reference Manual...
Page 257 Lc = (Rmax / Rw) / 2 = (3.2 Ω / 0.002 Ω/ft) / 2 = 1600.0 ft / 2 = 800.0 ft So the maximum wire run for this NAC would be 800 ft (rounding down for safety). EST3X Technical Reference Manual...
Page 258: 25 Or 70 Vrms Nac Wire Length
Table 79 and Table 80 on page 249 give the maximum allowable wire lengths for various wire sizes and loads. Use Table 79 when designing circuits for amplifiers set for 25 VRMS output. Use Table 80 when designing circuits for amplifiers set for a 70 VRMS output. EST3X Technical Reference Manual...
Page 259 18 AWG 1489 1117 (0.75 sq mm) 16 AWG 2420 1815 1210 (1.0 sq mm) 14 AWG 3722 1134 2792 1861 1396 588.7 (1.5 sq mm) 12 AWG 6049 1844 4537 1383 3024 2268 (2.5 sq mm) EST3X Technical Reference Manual...
Page 260: Analog Addressable Circuit Wire Length
Determine the total amount of current in milliamps required by all of the components that derive power from the battery while the panel is in standby EST3X Technical Reference Manual...
Page 261: Battery Calculations
[1] A maximum of fifteen SIGA-UM or SIGA-MAB modules per signaling line circuit can be configured to support two- wire smoke detectors (personality codes 13, 14, 20, and 21). For standby current, enter 2.0 mA for each smoke power circuit used. For alarm current, enter 17.0 mA for each smoke power circuit used. EST3X Technical Reference Manual...
Page 262 [4] Add 71.2 mA for each SMXLO2, 76.8 for each SMXHI2, and 20.0 mA for each MMXVR. [5] Includes EAEC card currents. [6] A 3-SSDC1 card with two 3-SDC1 cards is the same as one 3-SDDC1 card. EST3X Technical Reference Manual...
Page 263 3-IDC8/4 - IDC/NAC 1 [1] 3-IDC8/4 - IDC/NAC 2 [1] 3-IDC8/4 - IDC/NAC 5 [1] 3-IDC8/4 - IDC/NAC 6 [1] 3-ZA20(A/B) 3-ZA40(A/B) Total (mA) [1] Enter values only if the NAC signal source is the PS10-4B power supply. EST3X Technical Reference Manual...
Page 264 SIGA-REL module [1][2] RPM module [1] CDR-3 module [1] IOP3A [1] Total (mA) [1] Do not include currents if the module is not installed. [2] A maximum of ten SIGA-REL modules per signaling line circuit can be installed. EST3X Technical Reference Manual...
Page 265: Fiber Optic Cable Worksheet
Cable Loss Number of Contingency Total Link Loss per unit [ ] Feet Splices Splices (dB) distance [ ] Km A × B C+2[D+E] [ ] dB/Ft [ ] Miles [ ] dB/Km [ ] dB/Mi EST3X Technical Reference Manual...
Page 266 Appendix A: System calculations EST3X Technical Reference Manual...
Page 267: Appendix B Addresses
This appendix provides a list of fire alarm system device addresses. Content Address formats 258 Card address 258 Hardware layer device addresses 260 Operator layer device address 261 Remote annunciator device addresses 263 Logic group addresses 271 EST3X Technical Reference Manual...
Page 268: Address Formats
Appendix B: Addresses Address formats EST3X addresses are in PPCCDDDD format, where: • PP is the cabinet number. Possible values are 00 to 99. • CC is the card number. Possible values are listed in Table 82. • DDDD is the device number. Possible values are listed in Table 83, Table 84, and Table 85.
Page 269 Appendix B: Addresses Figure 60: Logical addresses for an EST3X control panel PP00 PP02 PP03 PP05 PP06 PP07 – – – – – – – – – LOOP1 LOOP1 LOOP1 LOOP1 LOOP1 LOOP1 LOOP1 LOOP1 LOOP1 LOOP2 LOOP2 LOOP2 LOOP2...
Page 270: Hardware Layer Device Addresses
Appendix B: Addresses Hardware layer device addresses Table 83 lists the device addresses for points on the EST3X hardware layer. Table 83: EST3X hardware layer device addresses Card Device or circuit Address PS10-4B NAC/AUX 1 PP020001 NAC /AUX 2 PP020002...
Page 271: Operator Layer Device Address
Appendix B: Addresses Operator layer device address Table 84 lists the device addresses for points on the EST3X operator layer. See also Figure 61 on page 262. Table 84: EST3X operator layer device addresses Module type or switch Address 12SW/12LED...
Page 272 Appendix B: Addresses Figure 61: Operator layer LED and switch numbering EST3X Technical Reference Manual...
Page 273: Remote Annunciator Device Addresses
GCIX expander cards. See also Figure 62, Figure 63, and Figure 64. Figure 62: R-LED-C LED numbering LED01 LED17 LED16 LED32 Power Fire Alarm Supervisory Ground Fault Trouble Controls Enabled Ack/Silence RLED-C Reset Signal Silence Drill Lamp Test LED01 LED17 LED33 LED16 LED32 LED48 RLED24 EST3X Technical Reference Manual...
Page 274 LED09 SW16 LED10 SW15 LED11 SW14 LED12 SW13 LED13 SW12 LED14 SW11 LED15 SW10 LED16 SW09 LED17 SW08 LED18 SW07 LED19 SW06 LED20 SW05 LED21 LED32 LED22 LED31 LED23 LED30 LED24 LED29 LED28 LED27 LED26 LED25 EST3X Technical Reference Manual...
Page 275 LED25 SW24 LED26 SW23 LED27 SW22 LED28 SW21 LED29 SW20 LED30 SW19 LED31 SW18 LED32 SW17 LED33 SW16 LED34 SW15 LED35 SW14 LED36 SW13 LED37 LED48 LED38 LED47 LED39 LED46 LED40 LED45 LED44 LED43 LED42 LED41 EST3X Technical Reference Manual...
Page 276 SW01 to SW16 PP021749 to PP041764 RLED24 or GCIX LED01 to LED48 PP041801 to PP041848 GCIX SW01 to SW24 PP041849 to PP041872 RLED24 or GCIX LED01 to LED48 PP041901 to PP041948 GCIX SW01 to SW24 PP041949 to PP041972 EST3X Technical Reference Manual...
Page 277 SW01 to SW16 PP043549 to PP043564 RLED24 or GCIX LED01 to LED48 PP043601 to PP043648 GCIX SW01 to SW24 PP043649 to PP043672 RLED24 or GCIX LED01 to LED48 PP043701 to PP043748 GCIX SW01 to SW24 PP043749 to PP043772 EST3X Technical Reference Manual...
Page 278 SW01 to SW16 PP045349 to PP045364 RLED24 or GCIX LED01 to LED48 PP045401 to PP045448 GCIX SW01 to SW24 PP045449 to PP045472 RLED24 or GCIX LED01 to LED48 PP045501 to PP045548 GCIX SW01 to SW24 PP045549 to PP045572 EST3X Technical Reference Manual...
Page 279 SW01 to SW16 PP047149 to PP047164 RLED24 or GCIX LED01 to LED48 PP047201 to PP047248 GCIX SW01 to SW24 PP047249 to PP047272 RLED24 or GCIX LED01 to LED48 PP047301 to PP047348 GCIX SW01 to SW24 PP047349 to PP047372 EST3X Technical Reference Manual...
Page 280 SW01 to SW16 PP048949 to PP048964 RLED24 or GCIX LED01 to LED48 PP049001 to PP049048 GCIX SW01 to SW24 PP049049 to PP049072 RLED24 or GCIX LED01 to LED48 PP049101 to PP049148 GCIX SW01 to SW24 PP049149 to PP049172 EST3X Technical Reference Manual...
Page 281: Logic Group Addresses
Appendix B: Addresses Logic group addresses Table 86 lists the addresses for EST3X logic groups. Table 86: EST3X logic group addresses Logical output Address Command lists 00220001 to 00221999 Partitions 00230001 to 00230255 Instruction text 00240001 to 00240999 Zone groups...
Page 282 Appendix B: Addresses EST3X Technical Reference Manual...
Page 283: Appendix C Programming Options
Appendix C Programming options Summary This appendix summarizes panel programming options. Content Programming options 274 EST3X Technical Reference Manual...
Page 284: Programming Options
(programmed in rules) Send on restoration triggers must match the message type Zone group member device types Y GENALARM GENALARM SMOKE SMOKE SMOKEVFY SMOKEVFY [8] HEAT HEAT PULL PULL STAGEONE STAGEONE [8] STAGETWO STAGETWO [8] WATERFLOW WATERFLOW EST3X Technical Reference Manual...
Page 285 [9] Not allowed in AND groups that are used to initiate the release of extinguishing agent or water [10] A minimum device activation count of 2 is required if the AND group or Matrix group is used to initiate the release of extinguishing agents or water EST3X Technical Reference Manual...
Page 286 Appendix C: Programming options EST3X Technical Reference Manual...
Page 287: Glossary
All appliances wired on the circuit to continue to operate up to the location of a break. Similar to Styles W, X, and Y integrity monitoring. EST3X Technical Reference Manual...
Page 288 The wiring that connects devices to the fire alarm control panel. matrix A correlation sheet defined in the 3-SDU that indicates the relationship between the activation of an input and the effect it will have upon all system outputs. EST3X Technical Reference Manual...
Page 289 A serial differential communications format used to communicate between the panel and remote annunciators. EST3 System Definition Utility program. Software that lets programmers configure and program an EST3X control panel. sensitivity The relative percent obscuration of a detector. EST3X Technical Reference Manual...
Page 290 A group of Signature Series detectors and modules defined in the SDU that has a unique zone number and acts as a single entity for programming purposes whenever any component of the zone is activated EST3X Technical Reference Manual...
Page 291: Index
Main menu, 46 disable, 58 Queue menu, 46 enable, 58 accessories, 13 annunciator Acknowledge button and LED, 17 local, 12 acknowledging events, 48 remote, 14 ACT, 20 audio amplifier, 82 Activate menu, 27 Backup amplifier, 83 EST3X Technical Reference Manual...
Page 292 57 serial number, 55 firmware version, 55 date, 71 type installed, 55 LCD screen, 19 CDR-3, 15 details baud rate, 140 event messages, 50 parity, 140 detector wiring for coded tone output, 140 cleaning, 153 EST3X Technical Reference Manual...
Page 293 Matrix group, 58 operator layer, 117 Service group, 58 trouble, 217 Zone group, 58 DH detector, 204, 209 EST3 diagnostic tools integrated with EST3X, 94 Analog addressable, 226 EST3X Signature, 213 integrated with EST3, 94 DIS, 20 models, 7 disable...
Page 294 233 remote write, 67 length, 233 logic groups, 58 limits, 232 loop controller specifications, 232 3-SDC1, 11 wire capacitance, 234 3-SDDC1, 11 nonmapping devices, 204, 209 3-SSDC1, 11 nonmapping loops, 209 ground faults, 202 EST3X Technical Reference Manual...
Page 295 140 bypass state, 96 installing, 136 partitions, 94 printing Security menu, 35 abnormal points list, 52 selecting active points list, 52 alternate alarm sensitivity, 65 maintenance reports, 52 alternate message routing, 65 EST3X Technical Reference Manual...
Page 296 Signature controller modules, 209 trouble registers, 217 Signature Series devices, 204 Trouble report, 51 supervisory Trouble Tables indications, 41 Analog addressable devices, 227 output, 40 Signature devices, 221 state, 40 troubleshooting, 169 Supervisory LED, 18 Supervisory queue, 20 EST3X Technical Reference Manual...
Page 297 54 status reports, 51 wire length calculations analog addressable circuit, 250 NAC circuit, 242 network data riser, 232, 233 Signature data loops, 234 zone disabling group, 58 enabling group, 58 zoned amplifier troubleshooting, 178 EST3X Technical Reference Manual...
Page 298 Index EST3X Technical Reference Manual...

EST EST3X Technical Reference Manual

Table of Contents

Chapter 1 Introduction

Chapter 2 Product Description

Chapter 3 Operating Instructions

Chapter 4 Supplementary Applications

Chapter 5 Installation

Chapter 6 Preventive Maintenance and Testing

Chapter 7 Service and Troubleshooting

Appendix A System Calculations

Appendix B Addresses

Appendix C Programming Options

Quick Links

Chapters

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EST EST3X

Summary of Contents for EST EST3X
