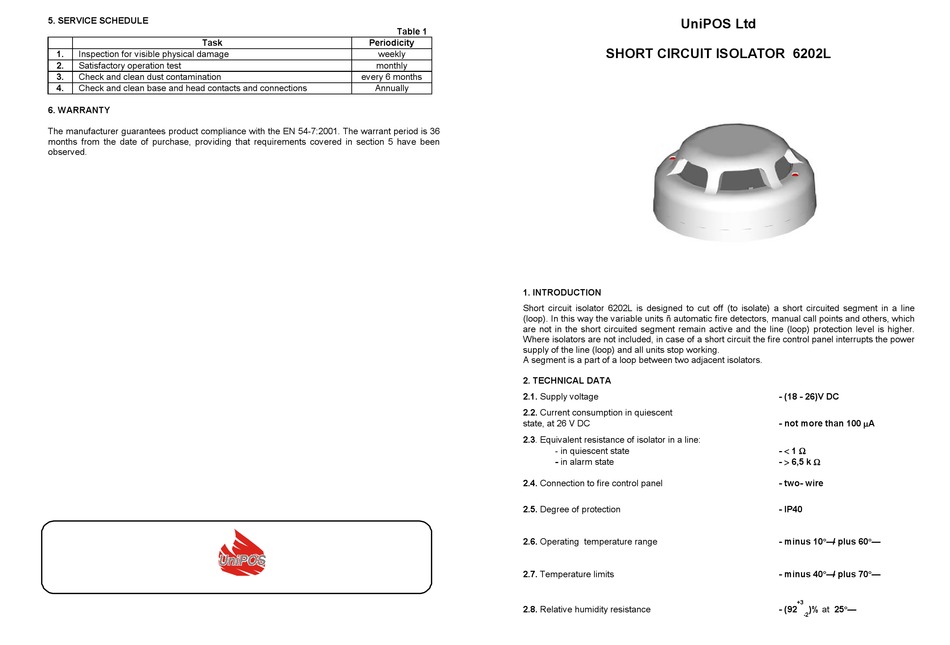

UniPOS 6202L Quick Start Manual

5. SERVICE SCHEDULE
Task
1. Inspection for visible physical damage
2. Satisfactory operation test
3. Check and clean dust contamination
4. Check and clean base and head contacts and connections
6. WARRANTY
The manufacturer guarantees product compliance with the EN 54-7:2001. The warrant period is 36
months from the date of purchase, providing that requirements covered in section 5 have been
observed.
Table 1
Periodicity
weekly
monthly
every 6 months
Annually
UniPOS Ltd

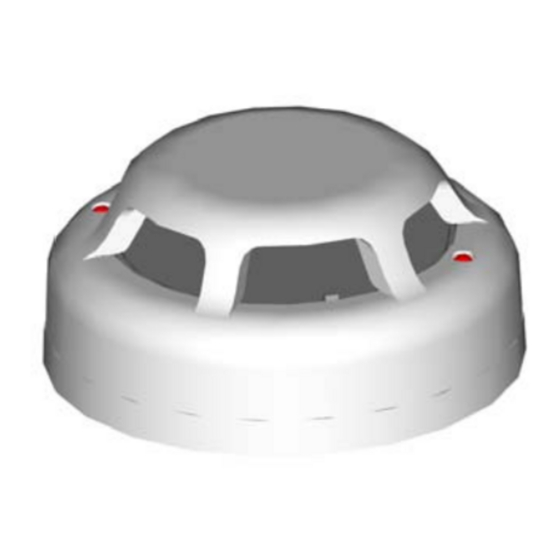

SHORT CIRCUIT ISOLATOR 6202L
1. INTRODUCTION
Short circuit isolator 6202L is designed to cut off (to isolate) a short circuited segment in a line
(loop). In this way the variable units ñ automatic fire detectors, manual call points and others, which
are not in the short circuited segment remain active and the line (loop) protection level is higher.
Where isolators are not included, in case of a short circuit the fire control panel interrupts the power
supply of the line (loop) and all units stop working.
A segment is a part of a loop between two adjacent isolators.
2. TECHNICAL DATA
2.1. Supply voltage
2.2. Current consumption in quiescent
state, at 26 V DC
2.3. Equivalent resistance of isolator in a line:
- in quiescent state
- in alarm state
2.4. Connection to fire control panel
2.5. Degree of protection
2.6. Operating temperature range
2.7. Temperature limits
2.8. Relative humidity resistance
- (18 - 26)V DC
- not more than 100 µA
- < 1 Ω
- > 6,5 k Ω
- two- wire
- IP40
- minus 10°— / plus 60°—
- minus 40°— / plus 70°—
+3
- (92 )% at 25°—
-2
