MN-COM1S TCP/IP to RS-232 Interface
Installation Sheet

Description

The MN-COM1S is a TCP/IP to RS-232 interface with one
RJ-45 port and one RS-232 port. It is used to connect a
FireWorks workstation to an EST3 control panel.
The MN-COM1S mounts on an MN-BRKT1 or an MN-BRKT3,
both ordered separately.

Installation

Using the hardware provided, attach the MN-COM1S to the
MN-BRKT1 or MN-BRKT3 mounting bracket as shown in
Figure 1.
Note:
Attach the MN-COM1S to the MN-BRKT3 before
attaching the MN-BRKT3 to a back box.
© 2010 UTC Fire & Security. All rights reserved.

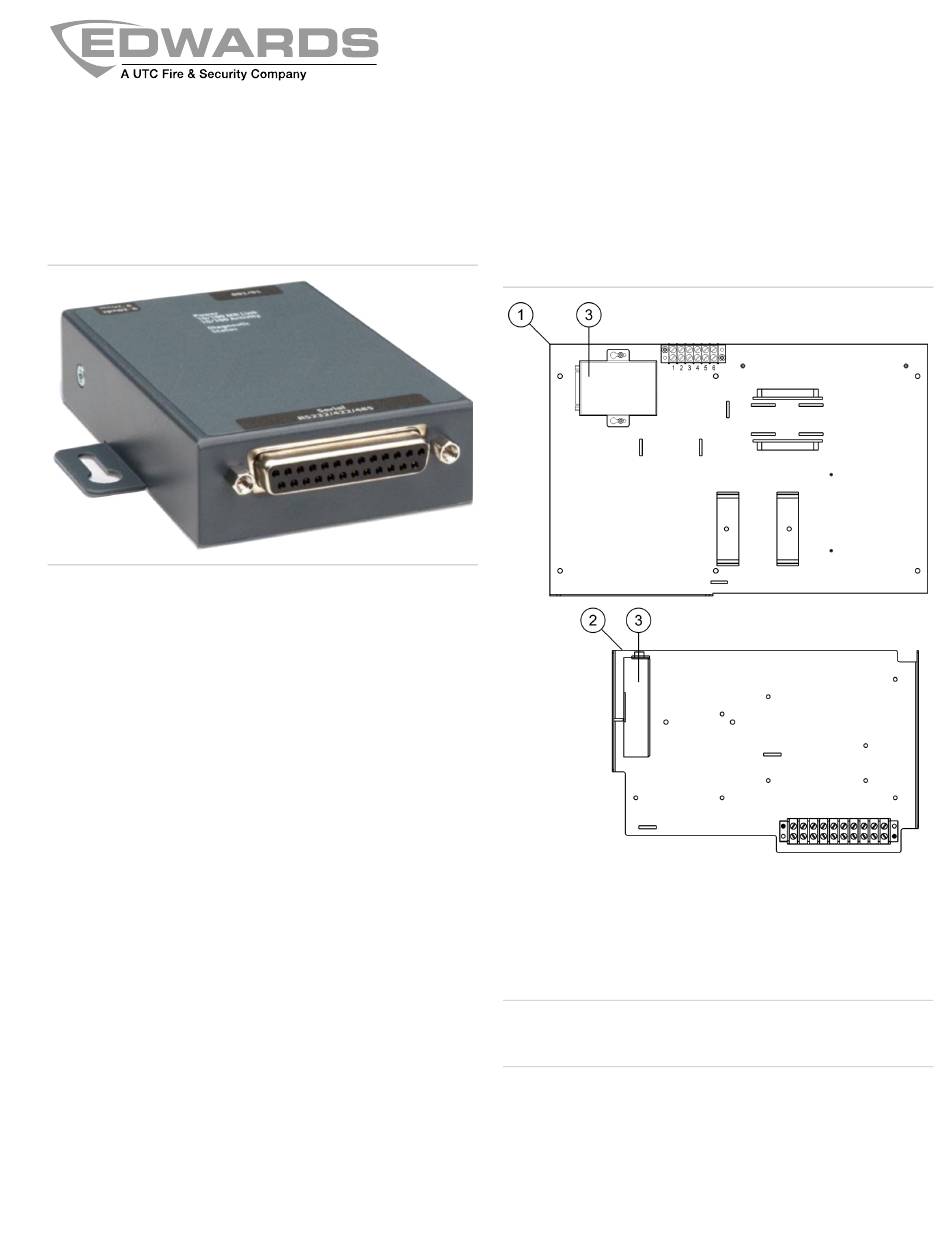

Figure 1: Mounting diagram
1.
MN-BRKT1
2.
MN-BRKT3

Wiring

Wire the MN-COM1S as shown in Figure 2 on page 2.
Caution:
To avoid damage to the MN-COM1S, make sure that
the power supply provides 24 VDC on the center conductor of
the barrel connector, and common is on the outer connector.
1 / 4
3.
MN-COM1S
P/N 3101601 • REV 2.0 • ISS 03DEC10
