Turris MOX A/B/C - MOX Pocket Wi-Fi/Power Wi-Fi/Classic Manual

DEVICE INSTALLATION

Please read this user guide carefully before operating the device.

MOX Pocket Wi-Fi, MOX Power Wi-Fi, MOX Classic

Before installation, make sure your computer is equipped with an Ethernet port.

1. Disconnect your computer from all network connections.
2. MOX Pocket Wi-Fi and MOX Power Wi-Fi: Skip to step 3.
   MOX Classic: Connect the Ethernet cable from your internet service provider or from your other device to the Ethernet port next to the power connector on the device.
3. MOX Pocket Wi-Fi and MOX Power Wi-Fi: Connect your computer using an Ethernet cable to the Ethernet port next to the power connector on the device.
   MOX Classic: Connect your computer using an Ethernet cable to any of the remaining Ethernet ports.
4. Plug the power cord into the power connector.

   Make sure you are using the original 12 V / 2.5 A rated power supply.

MOX Start, modules and add-ons

MOX Start: Turris MOX is a modular system and additional modules or add-ons can be connected to your device. MOX Start includes the MOX A module and serves as a starting point for your future setup.
Modules and add-ons: Plug in the modules you wish to use in your setup in the correct order. Connect the add-ons to their corresponding modules. We recommend using the configurator service available at https://mox.turris.cz/configurator to check the supported combinations and order of the modules.

Before disconnecting or connecting the individual modules and add-ons, make sure the device is turned off and unplugged from the power supply. The hardware configuration of the device cannot be modified while the device is running.

When disassembling the plastic cover of the device, we recommend removing the front and back parts first, followed by the top and bottom cover.
If your setup includes Wi-Fi antennas, be careful while disassembling the plastic cover. The antennas are glued onto the solid front, back and side parts of the cover. Careless manipulation with the cover might cause them to be torn off.
The latest version of the user guide including the guide for handling the plastic cover of your device is always available at https://mox.turris.cz/manual.

DEVICE RESTART

If the device stops working suddenly or does not operate properly, it can be restarted by pressing the button (the hole next to the power connector) for at least 4 seconds. If the issue persists, disconnect the power supply of the device for approximately 30 seconds.
Apart from the reset function, the button is also used to activate other modes of the device which are listed at https://mox.turris.cz/manual.

MODULARITY

Turris MOX is a modular system and additional modules or add-ons can be connected to your device. We recommend using our configurator service available at https://mox.turris.cz/configurator to check the supported combinations and order of the modules.

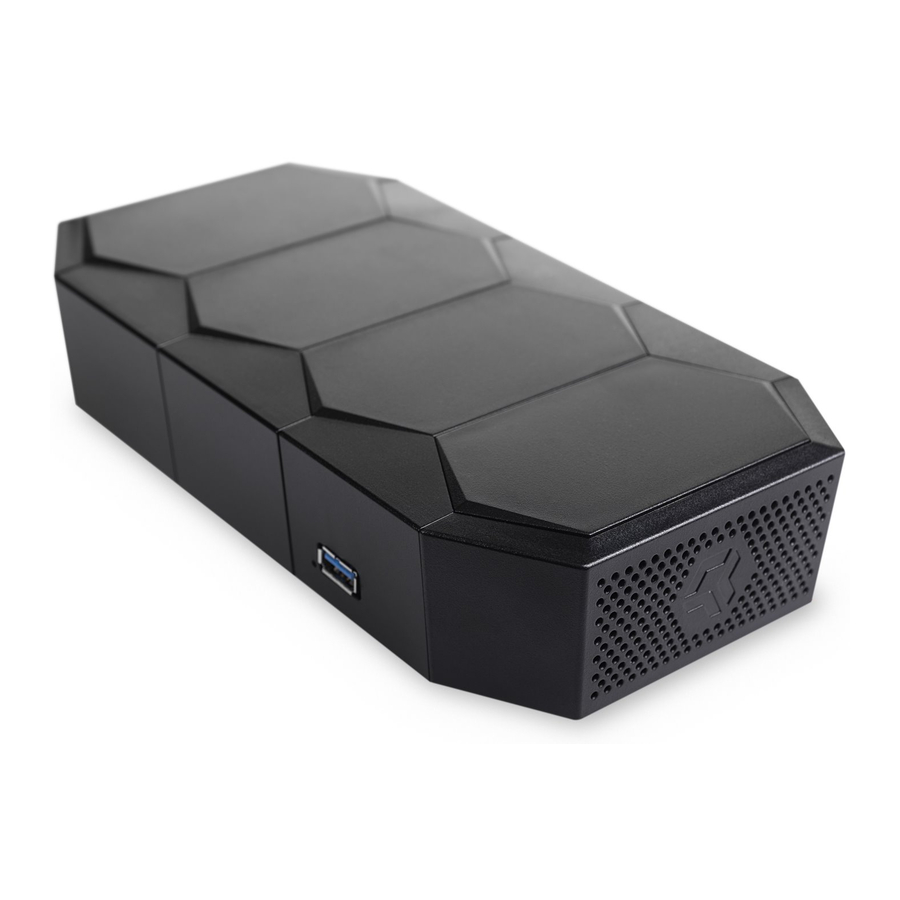

Your device consists of the following parts:

	Start	Pocket Wi-Fi	Power Wi-Fi	Classic
MOX A (Basic)
MOX B (Extension)
MOX C (Ethernet)
Wi-Fi add-on (SDIO)
Wi-Fi add-on (mPCIe)
