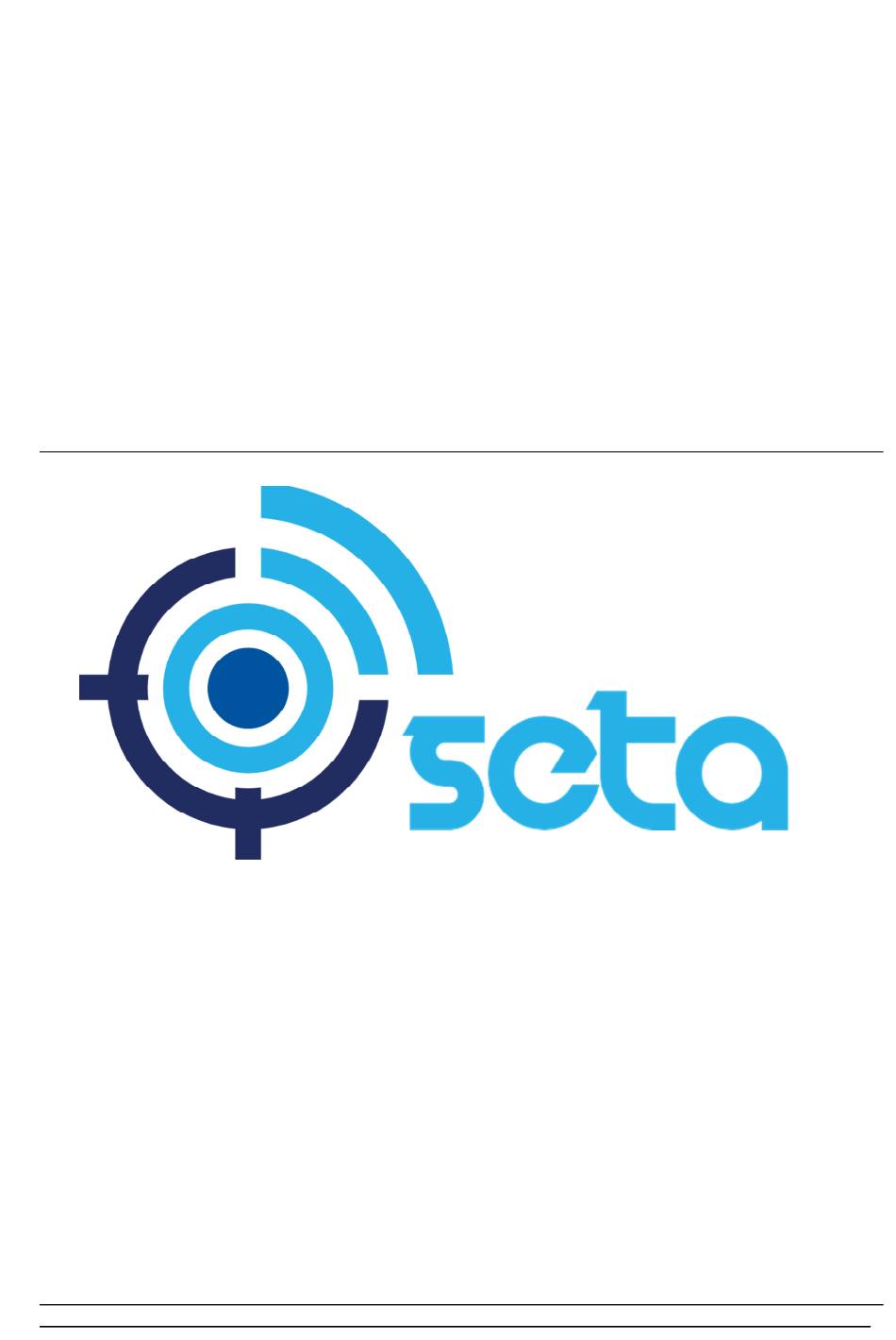

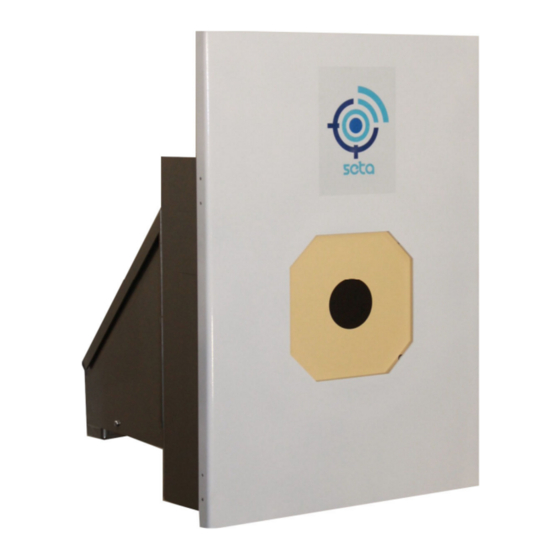

- Page 1 Operating Instructions for electronic scoring SETA SCORE10/Pro SETA Target Systems Zeller Straße 19 DE-64720 Michelstadt service@seta-online.com SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 2 Copyright © The reproduction, distribution and utilization of this document as well as the communication of its contents are strictly prohibited unless expressly permitted. Violations require compensation. All rights reserved. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
-
Page 3: Description Of The System
7.5 Jules at a distance of 10m. The consequences of improper use can be serious or slight personal injury, damage to property or the environment. For damages due to improper use, no liability is accepted. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com... - Page 4 The attachment of the wall mount is made by means of the mounting plates and the 80/40 Profils. Before mounting the measuring frame, make sure all screws and nuts have been tigh- tened. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 5 The bullet trap is built with 2mm sheet metal at a 45 ° angle, the thickness and the angle are manufactured according to the specifications. Strength of the material used corresponds to min. required DIN 1623. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 6 Step 1-Open front Door and insert Paper Template (Airpistol or Airrifle, depending on discipline) in the Template Holder. Step 2-Insert PaperRoll in Paper Feed Holder, roll it down through the support Strips and over the rubberized drive Roller. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 7 Step 3-Insert new Template (Air Rifle or Air Pistol) over the Roll and close Front Door SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 8 Step 5-Insert Back Cover Paper (control Paper) and close the Pellet Collector (The control Paper is not required for measuring, it is used only as proof of shooting images for various associations) SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 9 If the DC voltage is below 60V, there is no need for protection against contact. Display computer /tablet/ PC A tablet or PC with Windows 10 is required for each line. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 10 Unzip the ZIP-file CH341SER.ZIP. Step 4 – Start the driver file "SETUP.EXE" and the click "INSTALL" Step 5 – Please wait a few seconds. The required driver will be installed. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 11 Downloads. The latest ver- sions are always available here. Or under the following link: https://cdn.website-editor.net/90516910252b45ac95beaf7182ac7be5/files/uploaded/SETAv31.zip SETA Folder Finally unzip the ZIP file and store the folder where you want it. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 12 If you want to establish a connection with the line, the app_mode must always be set to "Live". app_mode = demo For testing without a line, an offline mode can be activated with "Demo" here you can generate shots with the mouse for demonstration purposes. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 13 If you enter "retain" and save, .tch files are saved each time and all old files are retained. match_file=clear If you enter "clear" and save, only the file for the current game will be saved and you will only ever have that file in the folder. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 14 You can set the timer separately for each number of shots. The standard time (maximum time allowed) is 90 minutes. 1- ten_shoot = 15 2-twenty_shoot = 30 3-thirty_shooting = 45 4-forty_shoot = 60 5-sixty_shoot = 75 6 standard = 90 SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 15 Once you click the Accept button, you will go to the software's login page the Accept button, you will go to the software's login page. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 Seta Target Systems Zeller Str.19 64720 Michelstadt 64720 Michelstadt support@seta support@seta-online.com...
- Page 16 COM3, the interface setting is saved after closing and therefore only needs to be set once. Enter the Name Enter COM-Port Select Number of Shots Select Discipline After your selection press „START“ to access the display software SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 17 By pressing the "Play" field, you can switch from rehearsal/training to match. The gray corner on the pane at the top right symbolizes the rehearsal mode. Zoom Timer Shootingtime Shot number Large Display and orientation(current shot) Schuss) SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 18 The coordinates for this are shown on the lower left of the target If you click on the "Complete overview" button, you can get a summary of your competition. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 19 For details about your competition you can click on the match report and save the printable PDF report on your laptop. Save on computer Your report shows a lot of details: shot values, x-y coordinate, divider, time ... SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 20 SELECT HERE and close (don't worry, your competition will be automatically saved in your system) Back with the Home Button: To start a new competition, click on the home button Click to get to the login SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 21 2 - Reload the backup file: Enter your name and click on the saved files on the Login page, select the desired file to reload and open it. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 22 You can change the hit colour and the target colour with the settings 4 -Zoom (+/-) : Use these buttons to zoom in or out. Use these buttons to zoom in or out. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 Seta Target Systems Zeller Str.19 64720 Michelstadt 64720 Michelstadt support@seta support@seta-online.com...
- Page 23 Score10Pro on a 50m small bore rifle, the system should be converted as follows. To do this, remove the bullet trap and open the two screws. Remove the cover plate, the electronics are visible here. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 24 The settings for pure 10m operation 2DEC must be carried out at the marked switches as shown. The setting for the 10m software is in the config.ini is_single-decimal = 0 set for pure 10m operation. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 25 2- Pop-up window "Com-Port" not connected: This means that the com port is not connected. In this case close the software and check and correct the port connection and restart the software. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 26 Please ensure that the following sequence is followed: Order (hardware --- USB connection to laptop --- software) Please do not hesitate to contact us for further questions or support. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 27 For further details, questions or support or sugge For further details, questions or support or suggestions, please feel free to contact us. stions, please feel free to contact us. SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 Seta Target Systems Zeller Str.19 64720 Michelstadt 64720 Michelstadt support@seta support@seta-online.com...
- Page 28 Special coated paper printed black on one side, Length 40 m, Width approx. 90 mm, Inner core: 12 mm with adapter, 25 mm without adapter Matt black Order number: 6600/10 SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 64720 Michelstadt support@seta-online.com...
- Page 29 SCORE10 Version 20.1 Seta Target Systems Zeller Str.19 Seta Target Systems Zeller Str.19 64720 Michelstadt 64720 Michelstadt support@seta support@seta-online.com online.com...
