ASD24 Reference Generator

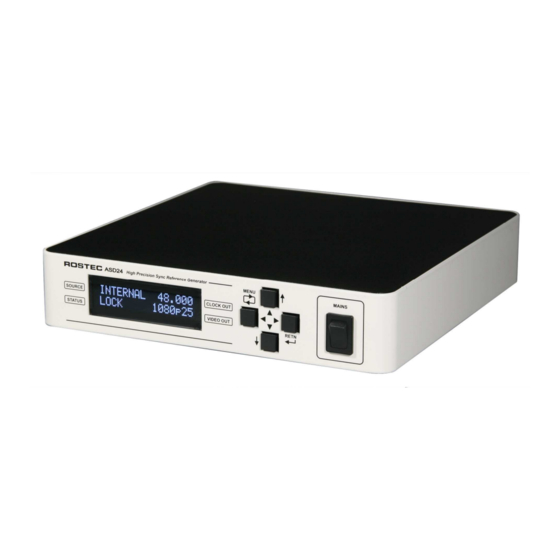

ROSTEC ASD24

igh Precision Sync Reference Generator

Front panel quick guide

Status menu (default at power on):

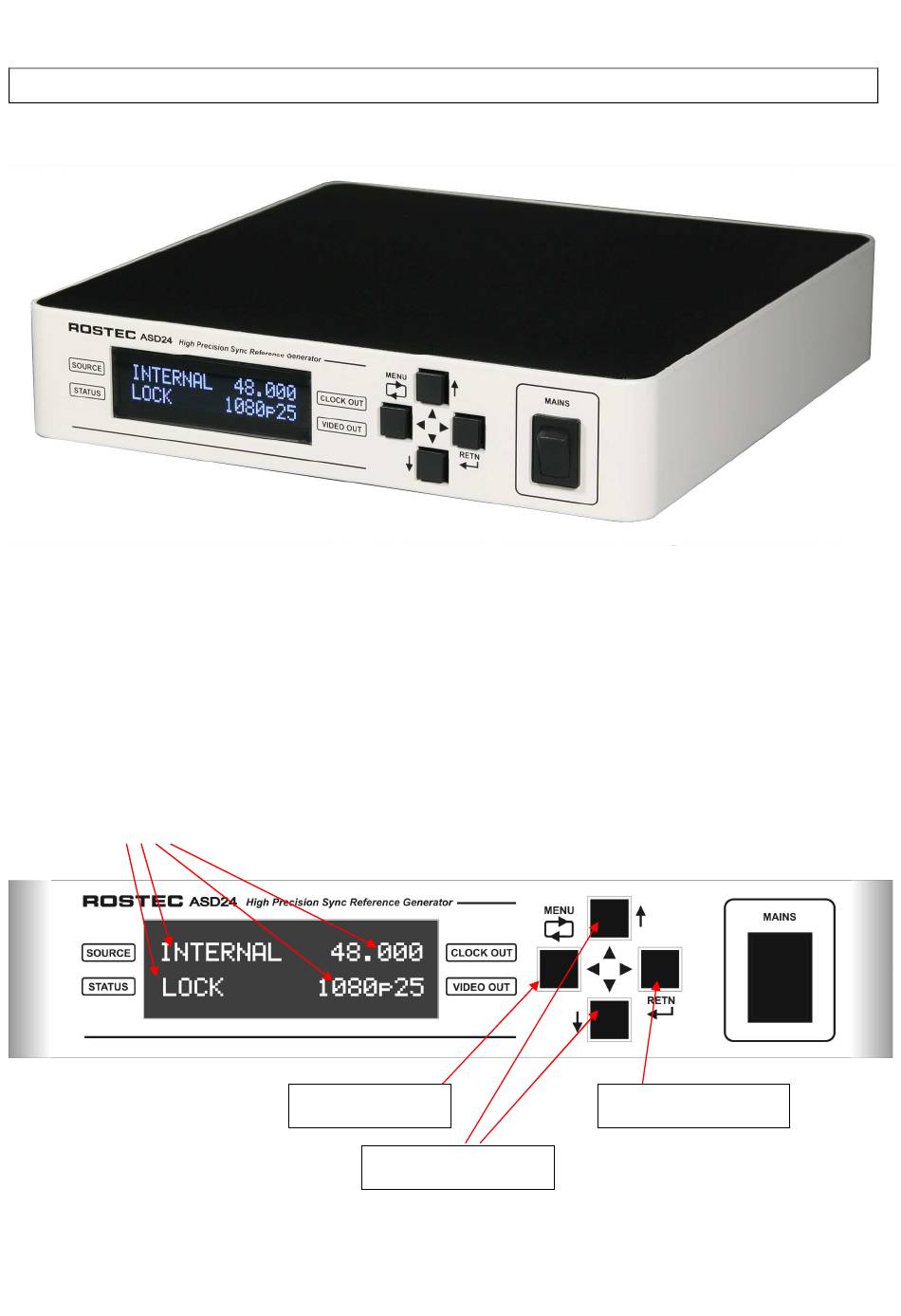

The operational status is displayed at the four corners of the display. The principle is "What You See Is What You Get"

Call menu cursor

Return to status menu

Set value up or down
