CSC HARP MI 510 Instructions

HARP

MI 510

GENERAL DESCRIPTION

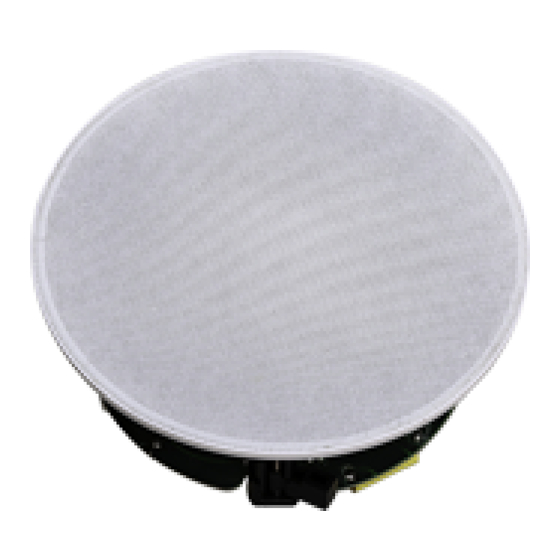

CSC MI 510 is a two-way ceiling speaker with a 5¼" LF with a coaxially

mounted tweeter to provide that extra clarity. This full range ceiling

speaker is designed to provide exceptional sound reinforcement and is

perfect for any public space where one needs clarity. It is easy to install

and can be used to suit every background application. The LF driver

coupled with a high frequency transducer through an optimally designed

crossover gives superb off-axis uniform coverage blending with seamless

intelligibility.

Excellent for most music and voice applications, MI 510 is capable of

delivering incredible sound without any base masking. This product is

equipped with moisture resistant materials for safe use in bathrooms,

kitchens, saunas and even under outdoor eaves. Paint them to match your

décor and they practically disappear, leaving you with nothing but a high

performance sound Installation. Installation of MI 510 is also easy - cut

one hole, feed the wires, and simply drop the speaker in.

Compact, high performance

two-way ceiling speaker

High power 30 watt - maximum

SPL 102 dB

Frequency response from

95 Hz –to 15 kHz

Musically accurate with stunning

vocal propagation

Very smooth off-axis response -

usable out to 120° (-6 dB)

Fast, integral hardware

Distributed audio/public

address system

Component for commercial and retail

Hotels, shopping malls

Education and religious establishments

Hospitals and conference rooms

www.cscaudio.co.uk

Table of Contents

Do you have a question about the HARP MI 510 and is the answer not in the manual?

Page 1 GENERAL DESCRIPTION GENERAL DESCRIPTION CSC MI 510 is a two-way ceiling speaker with a 5¼” LF with a coaxially mounted tweeter to provide that extra clarity. This full range ceiling speaker is designed to provide exceptional sound reinforcement and is perfect for any public space where one needs clarity.
Page 2 Mid highs measured on axis in full space @ 1 watt/1 meter using band limited pink noise. In the en-devour to continuously improve the product with design reﬁnements introduced into existing products. Any current CSC product may differ in some respect from its published description. However this will always equal or exceed the original design speciﬁcations. Every CSC product is built to the highest standards and tested to ensure that it meets the performance criteria speciﬁed.
