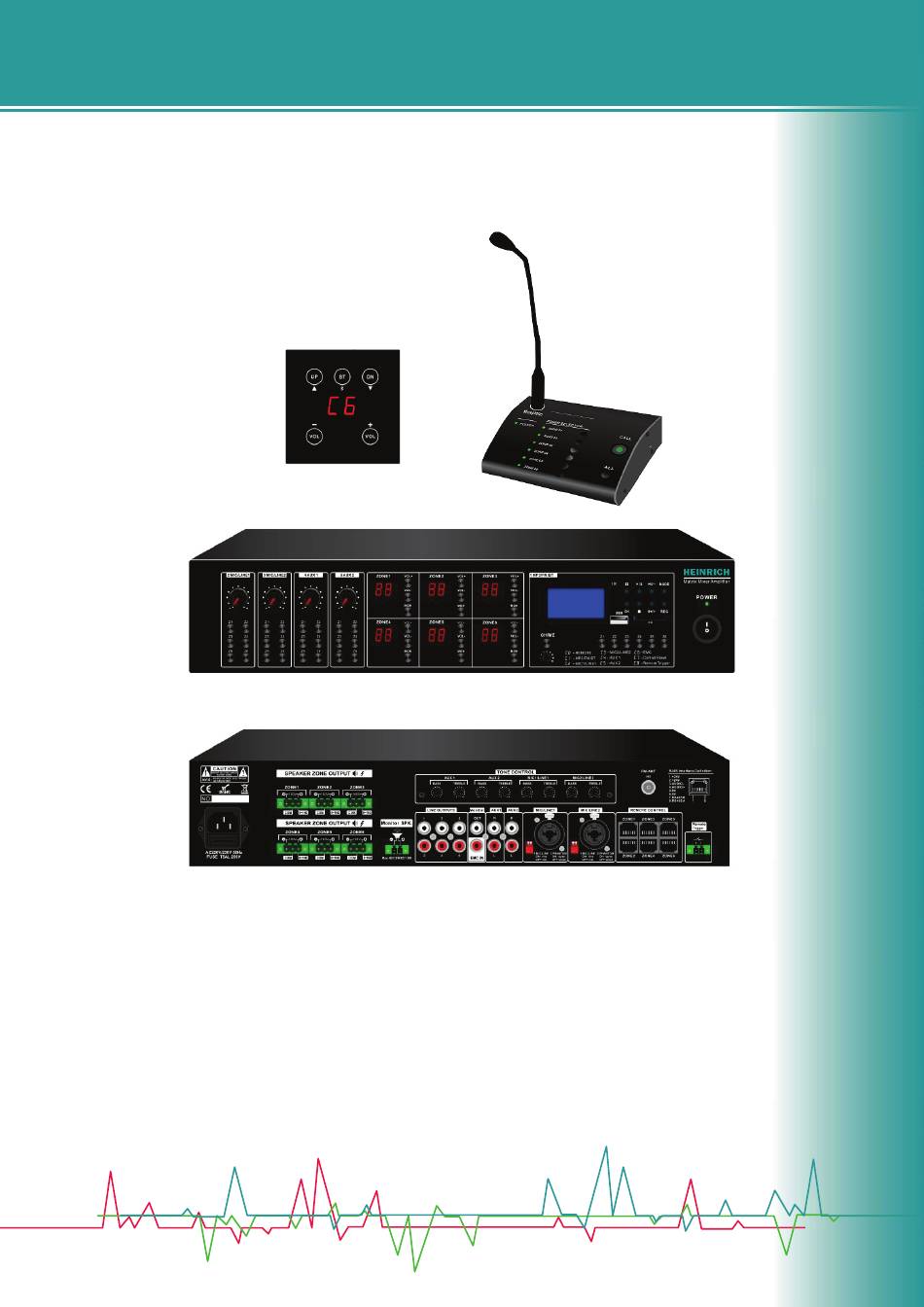

- Page 1 User Manual H6120M 6CH Matrix Mixer amplifier with SD/FM/Bluetooth/USB HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com...
-
Page 2: Safety Warnings
15. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 16. An appliance with a protec ve earth terminal should be connected to a mains outlet with a protec ve earth connec on. HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com... -
Page 3: Front Panel
10. Display of zone: This will show which audio source is playing on current zone. 11. Volume control for audio input. 12. Zone selector for Mic/Line: You can choose MIC/Line audio input play to any of zone. HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com... - Page 4 ► Mic/Line inputs 1, 2 and 3 each have 2 DIP switches on the rear panel to set the input level and/or ac vate +20V phantom power for use with condenser microphones. HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com...
-
Page 5: Signal Inputs And Outputs
“COM” output to the nega ve (-) connec on of the speaker. Connect further speakers in parallel to the first speaker with all posi ve terminals and connected together and all nega ve terminals connected together as shown below. HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com... -
Page 6: Low Impedance Systems
Make sure that the Monitor bu on for Mic/Line 1 is pressed in and listen through the headphones Gradually turn up the Monitor level control and check for the output to Zone 1 HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com... - Page 7 If no channels are tuned in, press the Play bu on to begin auto tuning, which scans available sta ons and stores them as channels within the controller FM tuner. To step through pre-set sta ons, press the Previous or Next bu ons. HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com...
-
Page 8: Usb/Sd Player
2. All zone selec on bu on 3. Zone selec on bu on 4. Zone led 5. Power LED 6. Communicate LED 7. Busy led –if on means current host zone is busy 8. Paging Microphone HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com... - Page 9 12. RS-485port 13. Power switch Remote Wall Mount Control Panel 1. Audio source selec on 2. Current zone audio source indicated led 3. Volume control 4. RS-485 cable connec on HEINRICH HEINRICH LIMITED, Marshall Avenue Worthing BN14 0ES www.heinrichlimited.com info@heinrichlimited.com...
-
Page 10: Warranty
6 Zones Matrix Mixer Amplifier Specifica ons Model H660M H6120M Descrip on 6×6 Matrix Mixer Amplifier with Mp3/FM/Blue Tooth Rated Power Output 6×60W 6×120W Speaker Output 100V and 4-8 Ohms Input Mic/line1-3: 2.5mV, balanced XLR input with 48V phantom power, Line1-2: 250mV;...
