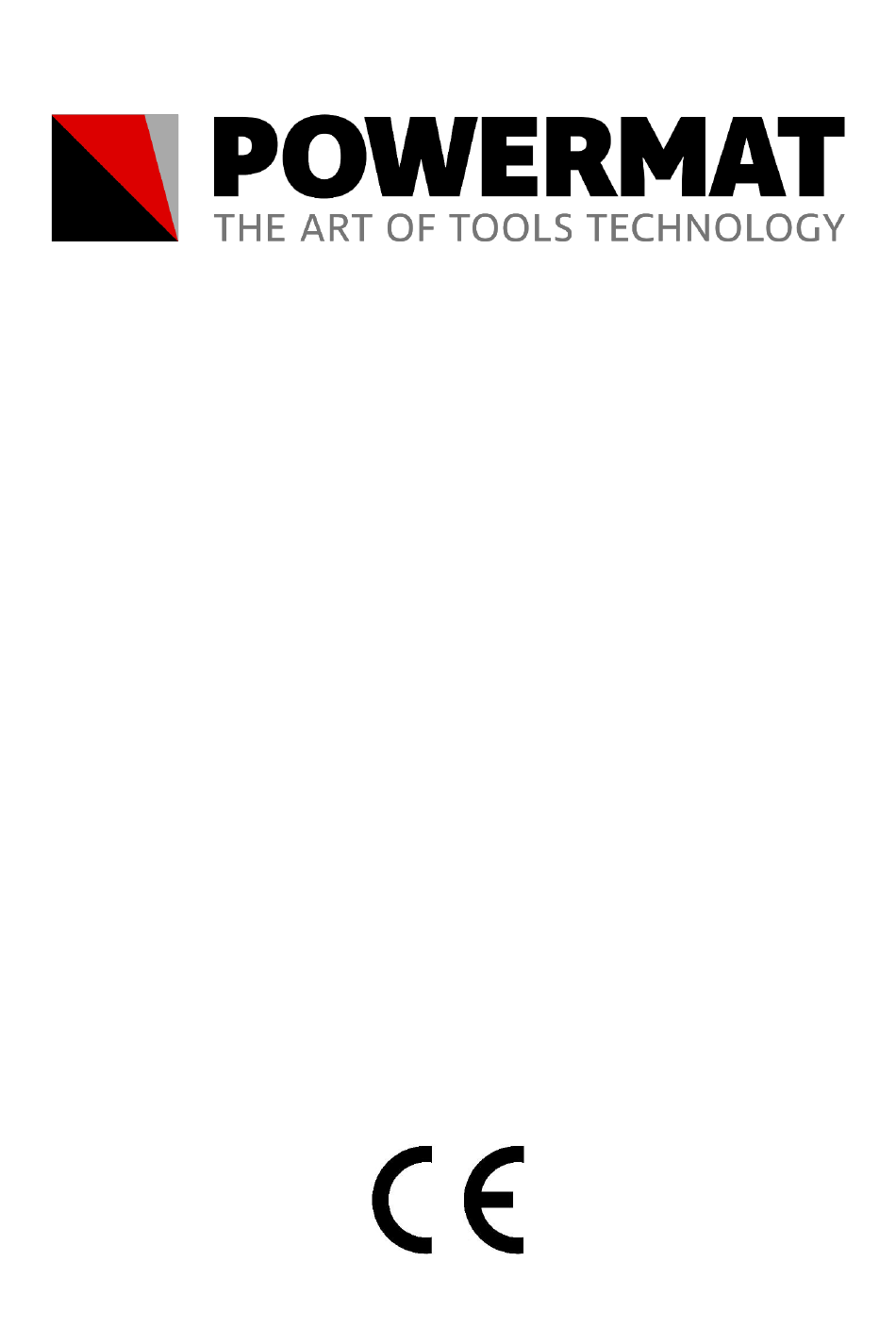

- Page 1 PM0851 USER MANUAL PLACE IMAGE HERE NAILER / PNEUMATIC STAPLER PM-GZP-18GAM ORIGINAL MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ..................................2 WARNING / INFORMATION SYMBOLS ........................3 APPLICATION OF THE DEVICE ............................3 TECHNICAL DATA................................4 SECURITY................................4 General safety instructions ................................4 Hazards related to parts thrown out .......... -
Page 3: Warning / Information Symbols
WARNING / INFORMATION SYMBOLS ATTENTION: Before using the device, carefully read the instruction manual and safety recommendations. Keep the instructions. ATTENTION: Use protective headphones. ATTENTION: Use safety glasses. APPLICATION OF THE DEVICE The pneumatic nailer is a tool powered by a stream of compressed air under the appropriate pressure. With the help of nails and staples, it facilitates the work of joining elements. -
Page 4: Technical Data
TECHNICAL DATA Model PM-GZP-18GAM Air connection diameter 1/4 "(3/8" min. Wire recommended) 8,000 rpm Turnover Hopper capacity 80/100 (staples / nails) Type of fasteners staples / nails The length of the elements 13 - 40 mm / 10 - 50 mm fasteners 5.7 mm... -
Page 5: Hazards Related To Parts Thrown Out
• Do not use the device near flammable liquids or gases. There is a risk of fire or explosion if this is not done. • The user is responsible for accidents or injuries to other people and for any damage to their property. •... -
Page 6: Risks Related To The Workplace
WITH RISKS RELATED TO THE WORKPLACE Slips, trips and falls are the main causes of injury. Beware of slippery surfaces caused by the use of the tool, as well as tripping hazards due to air installation. Proceed with caution in unfamiliar surroundings. There may be hidden dangers such as electricity or other utility lines. - Page 7 Pneumatic Pressurized air can cause serious injury: - always shut off the air supply, deflate the hose of air pressure, and disconnect the tool from the air supply when: Not in use, before changing accessories or when making repairs; - never direct air at yourself or anyone else.
-
Page 8: Before Starting
BEFORE YOU START Before connecting the device, make sure that the data on the rating plate agree with the compressed air supply. Before all adjustment, maintenance and cleaning work to the device, disconnect it from the compressed air supply. WITH SUPPLY WITH COMPRESSED AIR Compressed air source equipped with a pressure regulation, e.g. -
Page 9: Loading Staples And Nails Into The Magazine
1. Disconnect the device from the air supply. 2. Remove the fastening elements (ie staples or nails) from the magazine (Fig. 1 / Item E). 3. Verify that the trigger and trip protector can move freely in both directions. 4. Connect the device to the air supply. 5. -
Page 10: Device Description
DEVICE DESCRIPTION MODEL: PM-GZP-18GAM... - Page 11 Trigger lever Filling level indicator Compressed air connection Protection against trip Magazine lever Outer cover Magazine cover Inner cover Magazine Rotating air outlet Depth adjustment...
-
Page 12: Preliminary Steps
PRELIMINARY STEPS a) Open the package, then take out the device. b) Remove the protective foil and transport protection (if any). c) Check if the package includes dismantled parts and keys. d) Check that the machine and accessories have not been damaged during transport. e) Keep the packaging. -
Page 13: Connecting The Tool To The Pneumatic System
DISCONNECTING THE TOOL FOR THE PNEUMATIC SYSTEM The figure shows the recommended connection of the tool to the pneumatic system. The method shown will ensure the most effective use of the tool, as well as extend the life of the tool. Apply a few drops of SAE 10 oil to the air inlet. Screw the appropriate end for the air supply hose to the air inlet thread. -
Page 14: Precise Depth
Danger! If a staple / nail becomes jammed in the piston channel, disconnect the compressed air supply hose immediately. Then open the magazine and remove the covers (Fig. 8 / Item I / J) by unscrewing the screws with the enclosed hexagonal key (Fig. -
Page 15: Ordering Spare Parts
By means of an oil mist lubricator Connect a lubricator that produces an oil mist between the compressed air source and the unit (not supplied; available from specialist stores). Manually Before starting the air tool, pour 3-5 drops of special pneumatic oil into the compressed air connection hole. If the air tool has not been used for several days, pour 5-10 drops of pneumatic oil into the compressed air connection hole before switching it on. -
Page 16: Other Maintenance Activities
run for about 30 seconds. This will allow the preservative liquid to be distributed inside the tool and to clean it. Disconnect the tool from the pneumatic system again. Apply a small amount of SAE 10 oil to the inside of the tool through the air inlet and the holes provided for this purpose. -
Page 17: Warranty
WARRANTY During the warranty period, the buyer is entitled to free repairs due to manufacturing defects. The warranty is valid only when the product is delivered to the point of sale in a complete condition, unassembled, with proof of purchase and correctly filled in warranty card. EXCLUSIONS OF THE MANUFACTURER'S WARRANTY They occur when the device shows damage as a result of natural wear or resulting from improper handling of the equipment (e.g. -
Page 18: Disposal Of Used Devices
DISPOSAL OF USED DEVICES At the end of its useful life, this product must not be disposed of with normal household waste, but should be taken to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, manual or packaging. By reusing, reusing materials or other forms of using used devices, you make a significant contribution to the protection of our environment. -
Page 19: Part Diagram
PART DIAGRAM IDLOCK EXPLODED CIRCUIT MANUFACTURER'S DATA PH Powermat TMK Bijak Sp. Jawna Ul. Obrońców Poczty Gdańskiej 97 42-400 Zawiercie https://www.powermat.pl... -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY twenty...
