12cm 20V Cordless

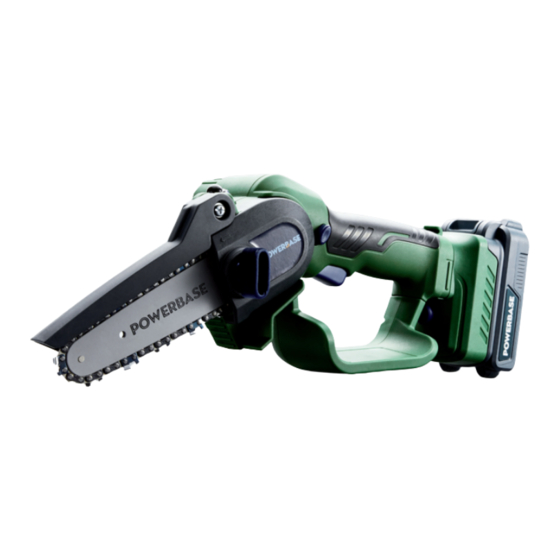

Mini Chainsaw 638713
These instructions contain important information that will help you get the best
from your product, ensuring it is assembled correctly and safely. If you need help
or have damaged or missing parts, call the Customer Helpline on 01904 727 509.
53cm Self Propelled Petrol
Rotary Lawn Mower
Instruction
Manual
IMPORTANT!
Please read these
instructions fully before
starting assembly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 638713 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBase 638713

Summary of Contents for PowerBase 638713

  • Page 1 Rotary Lawn Mower IMPORTANT! 12cm 20V Cordless Please read these Mini Chainsaw 638713 instructions fully before starting assembly. These instructions contain important information that will help you get the best from your product, ensuring it is assembled correctly and safely. If you need help...

  • Page 2: Table Of Contents

    Contents Safety Information ................. Description of symbols ................3 Warning symbols on the charger............4 Warning symbols on the battery pack ..........5 General safety......................6 Safety warnings for the battery pack Mini chainsaw safety warnings ..............16 Safety warnings for the battery charger..........14 Intended use .....................20 In the Box..

  • Page 3: Safety Information

    Safety Information Please read these instructions fully before operating or maintaining your machine. Description of symbols The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the electric cordless chainsaw. To reduce the risk of injury, please read the instruction handbook before operating this machine.

  • Page 4: Warning Symbols On The Charger

    Do not expose or operate the tool in rain. DANGER! Beware of kickback. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check your local authority or retailer for recycling advice. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

  • Page 5: Warning Symbols On The Battery Pack

    WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling guidelines. Warning symbols on the battery pack Batteries contain Li-ion. Do not dispose of waste batteries in domestic waste.

  • Page 6: General Safety

    Safety Information Please read these instructions fully before operating or maintaining your machine. General safety WARNING! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 7 electric shocks. ■ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shocks. If your body is earthed or grounded. ■ Do not expose power tools to rain or wet conditions.
  • Page 8 Always wear eye protection. Protective equipment, such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ■ Prevent unintentional starting. Ensure the switch is in the ‘off’ position before connecting to a power source and/or battery pack, picking up or carrying the tool.
  • Page 9 ■ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second. Power tool use and care ■ Do not force the power tool. Use the correct power tool for your application.
  • Page 10 Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ■ Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 11 seek medical help. Liquid ejected from the battery may cause irritation or burns. ■ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. ■...

  • Page 12: Safety Warnings For The Battery Pack

    Additional Safety Instructions for Batteries and Chargers Safety warnings for the battery pack WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shocks, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 13 ■ Wipe the battery pack terminals with a clean dry cloth if they become dirty. ■ Battery packs need to be charged before use. Always refer to this instruction manual and use the correct charging procedure. ■ Whilst the battery pack is being charged, refrain from any maintenance.

  • Page 14: Safety Warnings For The Battery Charger

    Safety warnings for the battery charger WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in an electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,...
  • Page 15 ■ The charging device must be protected from moisture. ■ Do not use the charging device in the open. ■ Shorting the battery terminals together may cause burns or a fire. ■ Respect the polarity “+/-“ when charging. ■ Do not open the unit and keep out of the reach of children.

  • Page 16: Mini Chainsaw Safety Warnings

    ■ Charge only the battery pack of the same model provided by the manufacturer, and those of models recommended by the manufacturer. Cordless chainsaw safety warnings ■ Keep all parts of the body away from the saw chain when the chainsaw is operating. Before you start the chainsaw, make sure the chainsaw is not contacting anything.
  • Page 17 ■ When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released, the spring loaded limb may strike the operator and/or throw the chainsaw out of control. ■ Use extreme caution when cutting brush and saplings.
  • Page 18 ■ This chainsaw is not intended for tree felling. Use of the chainsaw for operations different than intended could result in serious injury to the operator or bystanders. ■ Follow all instructions when clearing jammed material, storing or servicing the chainsaw.
  • Page 19 ■ Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chainsaw in unexpected situations. ■ Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.

  • Page 20: Intended Use

    WARNING! This machine produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants consult their physician, and the medical implant manufacturer before operating this machine.

  • Page 21: In The Box

    In the Box Parts Blade cover On/off switch Guide bar Handle Saw chain Hand guard Guard Socket lock button Tension wheel Battery connecting socket Sprocket cover Battery pack Compression cap Charger Oil cap Lubrication oil Lock-off button Manual If there are any parts missing, please call the customer helpline on 01904 727 509...

  • Page 22: Assembly

    Assembly WARNING! Do not install the battery pack before it has been completely assembled. Always use gloves when handling the chain. Unpacking Remove all packing materials and shipping devices, if applicable. 2. Unpack all parts and lay them on a flat and stable surface. 3.
  • Page 23 CAUTION: If the saw chain is TOO LOOSE or TOO TIGHT, the V-drive wheel, chain bar, chain and crank shaft bearing will suffer premature wear. Below Fig. shows the correct tension A (when cold) and tension B (when warm). Fig. C shows a chain that is too loose.

  • Page 24: Filling Oil Tank

    Saw Chain Tension Adjustment Remove the battery pack and wear the protective gloves. 2. Place the chainsaw on any suitable flat surface. 3. Adjust the chain tension, turn the tension wheel clockwise to tighten. Tighten Loosen Filling oil tank WARNING! The product is not filled with oil. It is essential to fill the product with oil before using it! Never operate the product without chain oil or with an empty oil tank, as this will result in extensive damage to the product!

  • Page 25: Charging The Battery

    Charging the battery WARNING! The charger and battery pack are specifically designed to work together, so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections; an electrical failure and hazard will occur.
  • Page 26 Important charging notes Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 18-24°C. Do not charge the battery pack in a very low or very high air temperature. This is important and will prevent serious damage to the battery pack.

  • Page 27: Removing Or Installing The Battery Pack

    WARNING! Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return it to a service centre for recycling; do not put it into further use. Removing or installing the battery pack WARNING! Always release the on/off trigger before insertion or removal of the battery pack.

  • Page 28: Operation

    Operation Starting the chainsaw Installing the battery pack Keep the battery pack in line with the holder on the device. 2. Push it forward until it reaches the bottom. Before starting, make sure the battery pack is firmly locked in place. Removing the battery from the product Press the battery pack lock button downward.
  • Page 29 Limbing a tree Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut, as illustrated below. Branches under tension should be cut from the bottom up to avoid binding the chainsaw.
  • Page 30 Bucking a log is cutting a log into sections. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet. When possible, raise the log or section off the ground. Do this by using limbs, logs, chocks, etc. When cutting through the log, maintain control by reducing the cutting pressure near the end of the cut.

  • Page 31: Maintenance

    Maintenance Preventative maintenance CAUTION: Place the switch in the OFF position and remove the battery pack before the appliance is serviced, cleaned, or maintenance is performed. Keep the air intake clean and air vents free of debris to avoid overheating the motor. 2.
  • Page 32 CAUTION: Failure to lubricate the guide bar sprocket tip, as explained below, will result in poor performance and seizure, voiding the warranty. Lubrication of the sprocket tip is recommended after each saw use. Always thoroughly clean the guide bar sprocket tip before lubrication. To lubricate sprocket tip: WARNING! Wear heavy-duty work gloves when performing this application to reduce risk of personal injury.
  • Page 33 Guide bar maintenance Most guide bar problems can be prevented merely by keeping the chainsaw well maintained. Incorrect filing and non-uniform cutter and depth gauge settings cause most guide bar problems, primarily resulting in uneven bar wear. As the bar wears unevenly, the rails widen, which may cause chain clatter and difficulty in making straight cuts.
  • Page 34 What is a low kickback saw chain? A low kickback saw chain is a chain which has met the kickback performance requirements of ISO 9518. By keeping and saw chain in good working condition and correctly serviced as recommended in this manual, you will be able to maintain the safety system of your chainsaw over the life of the product.
  • Page 35 Replace the chain IMPORTANT: Do not clamp chainsaw in a vise to replace the saw chain or guide bar. Replace the chain when the cutters are too worn to sharpen or when the chain breaks. Only use replacement chain noted in this manual. Always include new drive sprocket when replacing the chain.
  • Page 36 Adjusting Hole Sprocket Sliding groove Guide block Automatic tensioner Chain and bar lubrication Adequate lubrication of the chain during cutting operations is essential to minimise friction with the guide bar. Your saw is equipped with an hand priming pump oiler system. The oiler, through priming the compression cap, delivers the proper amount of oil to the bar and chain.

  • Page 37: Troubleshooting

    Troubleshooting Problem Possible cause Solution Product does • Battery pack not • Attach properly not start properly attached • Remove and charge • Battery pack is the battery pack discharged • Check by a specialist electrician • Battery pack is •...
  • Page 38 Technical Data Model No. ET2008HB Voltage Max. Chain speed 6m/s Chain pitch 1/4” Number of chain drive links Chain gauge 0.043” Bar model DC5-43XE Chain model E0NK2-32DL Bar length 127mm(5”) Net weight 1.96kg Oil tank capacity 120ml Vibrations < 2.5m/s , K=1.5m/s Charger Model no.

  • Page 39: Technical Data

    Technical Data Noise emission value: Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically as follows: Sound pressure level L : 75.9dB(A) Uncertainty k= 3 dB(A) Sound power level L : 86.9dB(A) Uncertainty k= 3 dB(A) Guaranteed sound power level L...

  • Page 40: Disposal

    Disposal The chainsaw and its accessories are made of various recyclable materials. Dispose of the chainsaw in accordance with your local recycling regulations. Getting help Our dedicated UK-based customer helpline is open 7 days a week to assist you with assembly, parts queries and technical support. We are open during office hours but you can always send an email via support@coreservice.co.uk.
