Summary of Contents for Graperain G4418

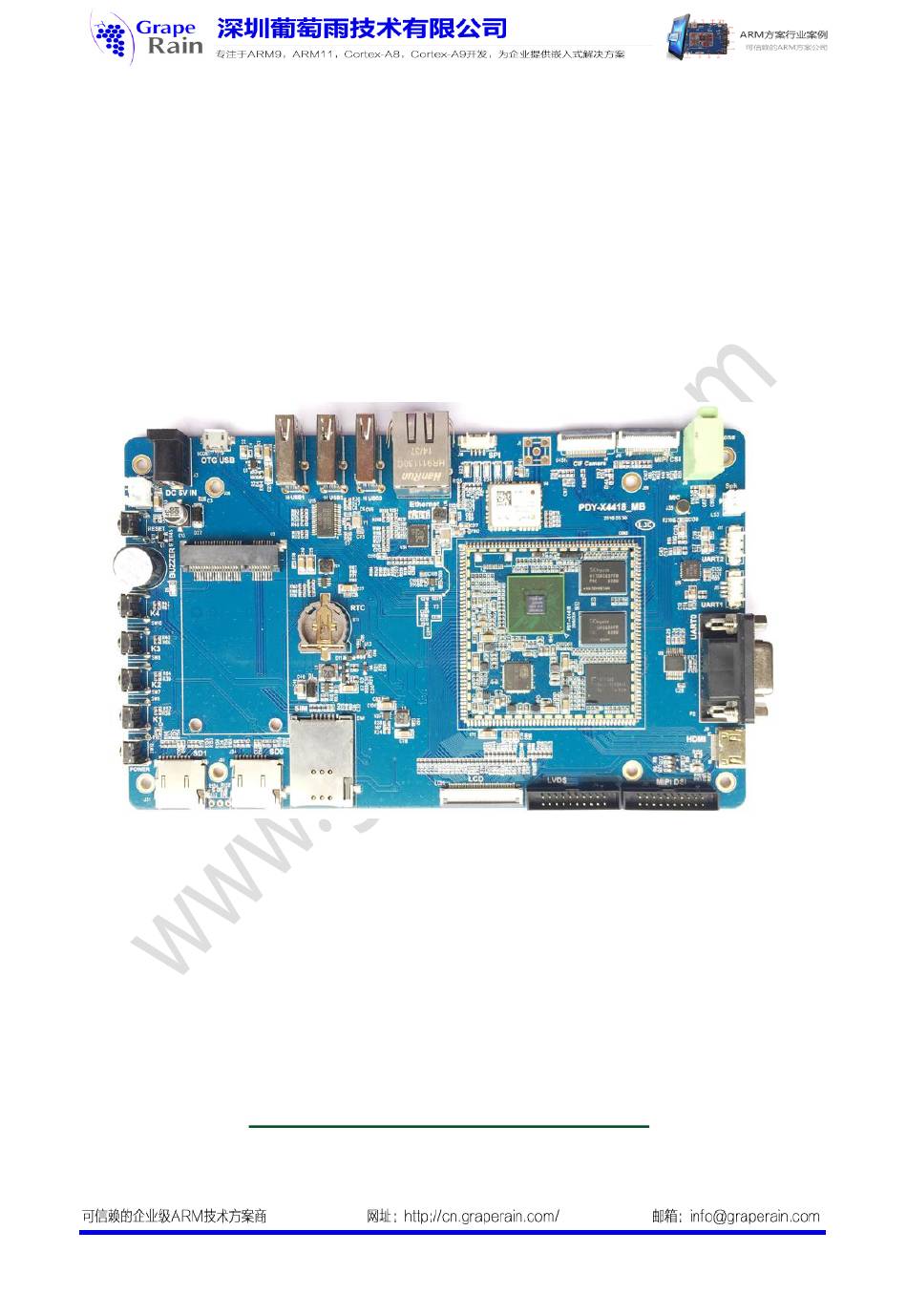

- Page 1 G4418 Hardware Manual Shenzhen Graperain Technology Co., Ltd. http://www.graperain.com/...
-
Page 2: Copyright Statement
Copyright Statement Copyrights of this manual belong to Shenzhen Graperain Technology Co., Ltd. and all rights are reserved. Any companies or individuals are not allowed to extract part or all of this manual, and violators will be prosecuted under law. - Page 3 Release notes Version Release Date Author Description Rev.01 2016-4-8 David Huang Revision...
- Page 4 Website: http://www.graperain.com Landline: +86 755 23025312 E-mail: supports@graperain.com Sales and service network Shenzhen Graperain Technology Co., Ltd. Website: http://www.graperain.com Landline: +86 755 23025312 E-mail: sales@graperain.com Address: Building D, Huafeng Tech. & Innov. Park Baoan Wisdom Valley, Xixiang, Baoan Dist.Shenzhen, Guangdong. Post code 518101.
-
Page 5: Table Of Contents
1.3.2 Linux QT OS ....................... 10 1.3.3 Ubuntu OS......................10 Chapter 2 G4418 Development Board Design ............11 2.2 Guideline for G4418 Development Board Start-Up ........... 13 2.3 G4418 Development Board Interface Definition ..........14 2.3.1 G4418 SOM PIN Definition 1 ................14 2.3.2 G4418 SOM PIN Definition 2 ................ - Page 6 2.4.24 MIPI Interface ....................25 2.4.25 Battery Interface ....................25 2.4.26 PCIE 3G/4G Interface..................25 2.5 G4418 Development Board Carrier board Dimension ..........26 Chapter 3 Configuration Checklist ................27 3.1 Standard Hardware Checklist ..................27 3.2 Optional Hardware Checklist ..................27 3.3 Online Disk Data List .....................
-
Page 7: Chapter 1 G4418 Development Board Introduction
This document describes the hardware resources, circuit theory, supported interfaces of G4418 development platform. G4418 development board takes Samsung latest S5P4418 chip , which uses the same ARM core like Exynos4412 and based on quad-core ARM Cortex-A9 framework, but there is a huge difference between these two chips. -
Page 8: G4418 Development Board Product Brief
POS machine, game machine, industry monitoring and many other fields. G4418 SOM is the sister version with G4412 SOM, Its CPU upgrade from Exynos4412 into S5P4418, and basic frequency at 1.4Ghz. The carrier board is of rich peripherals, can debug almost all the features of the 4418 SOM. -
Page 9: Equipped System Brief Introduction
Supports infrared integration receiving head; 1.3 Equipped System Brief Introduction G4418 development board can be equipped with a complete stable Android 5.1, Linux + qt, Ubuntu operating system. 1.3.1 Android 5.1 OS G4418 development board supports Android 5.1 os, use Linux kernel 3.4.39. -
Page 10: Linux Qt Os
SDA7123 VGA module PCIE 3G/4G USB 3G dongle 1.3.2 Linux QT OS G4418 development board supports Linux + qt (QT5.4) OS，use Linux kernel 3.4.39. 1.3.3 Ubuntu OS G4418 development board supports Ubuntu12.04 OS，use Linux kernel 3.4.39. -
Page 11: Chapter 2 G4418 Development Board Design
Design Chapter 2 G4418 Development Board 2.1 G4418 Development Board Interface Description G4418 Development Board Interface Description Indicia Name Description 【1】 S5P4418，ARM Cortex A9,4*1.4GHz DDR3,1GBytes 【2】 【3】 eMMC，8GBytes 【4】 Power manager，AXP228 Extended IO Refer to section 2.3.5 【5】 Ethernet 【6】... - Page 12 Loudspeaker Interface Loudspeaker output 【9】 UART2 Com3 【10】 UART1 Com1 【11】 UART0 【12】 Com0，Debug Com HDMI Interface HDMI Output 【13】 DSI MIPI Interface MIPI Display Interface 【14】 LVDS Interface LVDS Display Interface 【15】 RGB LCD/VGA Interface RGB Output Interface 【16】 SIM carm slot 3G/4G SIM card slot 【17】...
-
Page 13: Guideline For G4418 Development Board Start-Up
【43】 2.2 Guideline for G4418 Development Board Start-Up G4418 support free start-up configuration to start model, when start the board, it will look for bootloader from SD0 to SD2 then to USB device till start the board. Default SD0 connects with TF card,SD2 connects with EMMC on system on module, USB device connects with PC though OTG cable, users can write program online with fastboot. -
Page 14: G4418 Development Board Interface Definition
2.3 G4418 Development Board Interface Definition 2.3.1 G4418 SOM PIN Definition 1 G4418 SOM PIN Definition 1 Pin# Signal Pin# Signal VCC3P3_SYS LCD_R5 MCU_BACKLIGHT_PWM LCD_R6 MCU_TOUCH_INT LCD_R7 MCU_NRESETOUT LCD_G0 MCU_VG_EN LCD_G1 MCU_SDA_2 LCD_G2 MCU_SCL_2 LCD_G3 MCU_SDA_1 LCD_G4 MCU_SCL_1 LCD_G5 USBHSIC_DATA... -
Page 15: G4418 Som Pin Definition 3
GMAC_TXCLK MCU_HDMI_TX0P GMAC_RXD0 MCU_HDMI_TX1N GMAC_RXD1 MCU_HDMI_TX1P GMAC_RXD2 MCU_HDMI_TX2N GMAC_RXD3 MCU_HDMI_TX2P GMAC_RXDV GMAC_MDC MCU_LVDS_CLKM PHY_RST MCU_LVDS_CLKP 2.3.3 G4418 SOM PIN Definition 3 G4418 SOM PIN Definition 3 Pin# Signal Pin# Signal MCU_LVDS_Y3M MIPIDSI_DN1 MCU_LVDS_Y3P MIPIDSI_DP1 MCU_LVDS_Y2M MIPIDSI_DN0 MCU_LVDS_Y2P MIPIDSI_DP0 MCU_LVDS_Y1M MIPIDSI_DNCLK... -
Page 16: G4418 Som Pin Definition 4
MCU_SD0_D1 MCU_SEN0_INT MCU_SD0_D0 MCU_NRSETIN MCU_SD0_CMD MCU_PWRKEY MCU_SD0_CLK ADC0 2.3.5 G4418 SOM PIN Definition 5 Extended IO, the following part of g4418 system on module: 9 Available IO. (There is no CVBS_OUT on G4418, leads on G6818 system on module ) -
Page 17: J18(Spi Expansion Port)
2.3.6 J18(SPI Expansion port) Signal Signal MCU_SPIRXD0 MCU_SPIFRM0 MCU_SPICLK0 MCU_SPITXD0 2..3.7 LCD1 (LCD & VGA Expansion port) Signal Signal MCU_BACKLIGHT_PWM 21 L_B0 LVDS_VDD L_B1 L_B2 VCC3P3_SYS L_B3 L_R0 L_B4 L_R1 L_B5 L_R2 L_B6 L_R3 L_B7 L_R4 L_R5 L_DCLK L_R6 LCD_EN L_R7 LCD_HH L_G0... -
Page 18: J14(Lvds Expansion Port)
2.3.8 J14(LVDS Expansion port) Signal Signal VCC3P3_SYS MCU_LVDS_Y2M LVDS_VDD MCU_LVDS_Y2P MCU_SCL_1 MCU_BACKLIGHT_PWM 14 MCU_SDA_1 MCU_LVDS_CLKM CAP_INT MCU_LVDS_CLKP MCU_LVDS_Y0M MCU_LVDS_Y3M MCU_LVDS_Y0P MCU_LVDS_Y3P MCU_LVDS_Y1M MCU_NRESETOUT MCU_LVDS_Y1P 2..3.9 J12(MIPI Expansion port) Signal Signal VCC3P3_SYS MIPIDSI_DN2 LVDS_VDD MIPIDSI_DP2 MCU_SCL_1 MCU_BACKLIGHT_PWM 14 MCU_SDA_1 MIPIDSI_DNCLK CAP_INT MIPIDSI_DPCLK MIPIDSI_DN0 MCU_NRESETOUT... -
Page 19: J15(Mipi Camera Interface)
232RXD1 LVDS_VDD 2.3.13 J17(UART1,COM3) Signal Signal UARTTXD3 UARTRXD3 VCC3P3_SYS 2.4 G4418 Development Board Interfaces 2.4.1 Power Switch and Socket G4418 development board takes 5V DC power supply, and the black jack in the picture is 5V DC power input jack. -
Page 20: Debugging Serial Port
2.4.2 Debugging Serial Port G4418 development board reserves a RS232 serial port UART0, as the default debug serial port. And there are 2 TTL serial port,UART1，UART2. 2.4.3 HDMI Interface G4418 development board uses miniHDMI interface, with the miniHDMI extension cable, audio and video signal can be the perfect present in the monitoring terminal, to support the HDMI1.4 protocol as a TV set, display etc. -
Page 21: Mipi Camera Interface
2.4.8 Speaker Interface G4418 development board directly supports dual speaker output, the speaker received on any interface like the picture, can realize the speaker output. -
Page 22: Record Interface
2.4.9 Record Interface G4418 development board support audio input. The earphone has a direct load to the development board, not through the external microphone to input. 2.4.10 TF Card Slot G4418 development board leads to 2 external TF cards, corresponding to 4418 channel 0 and channel 1, TF card can be upgraded through the channel, or store some multimedia files. -
Page 23: Power Indicator
This interface is used to write the program, synchronization. It can use as HOST with OTG cable. 2.4.15 USB HOST Interface S5P4418 has USB HOST interface, G4418 development board expands 3 USB HOST2.0 interfaces though that interface, can use to connect USB WIFI,USB Bluetooth, USB mouse and USB keyboard. -
Page 24: Lcd Interface
The backup battery is used to ensure that the RTC is still able to work after power failure and the system time is not lost. When G4418 development connects a lithium battery, it will supply power to the RTC,RTC will not be lost if the battery isn’t off, so G4418 development board won’t provide RTC backup battery. -
Page 25: Infrared Integration Receiving Head
G4418 system on module has PMU AXP228 launched by x-powers, which supports battery to charge and discharge. There is a battery interface on G4418 carrier board can use for charging the board and charging the battery when connect the adapter. The interface is on the left of power socket. -
Page 26: G4418 Development Board Carrier Board Dimension
Support PCIE 3G/4G module. 2.4.27 SPI Interface SPI extended port. 2.5 G4418 Development Board Carrier board Dimension... -
Page 27: Chapter 3 Configuration Checklist
Users can contact us or log on our website to get the information. www.graperain.com 3.3 Online Disk Data List The development data of G4418 development board is stored in the specified online disk, users can contact us to get the download address. The development data includes source code, build development environment, users manual, examples, schematics of system on module, carrier board and LCD panels, components package library, program tools, etc. -
Page 28: Chapter 4 Configuration Checklist
Chapter 4 Configuration Checklist 4.1 System on Modules (SOM) G4418 System On Module (SoC is Samsung S5P4418) G6818 System On Module (SoC is Samsung S5P6818) G210 System On Module (SoC is Samsung S5PV210) M9 System On Module (SoC is Qualcomm MSM8916) G3288 System On Module (SoC is Rockchip RK3288) 4.2 Development Boards...
