MDTechShop 2016-9501-C6 Assembly Instruction Manual

Assembly Instruction General Description

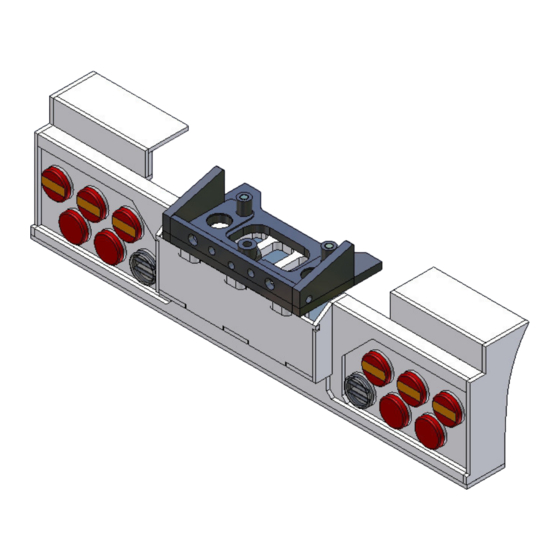

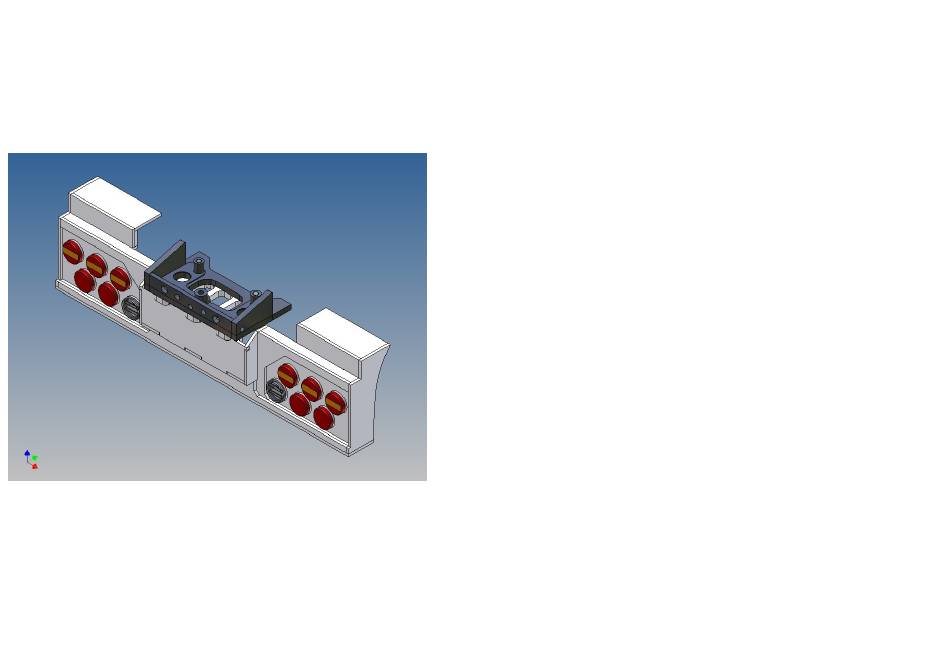

Bumper for Carson 3-cell lights 6x3
This polystyrene-milled parts set for a bumper as an accessory was designed
for TAMIYA 2-axle trucks (1: 14)
for the TAMIYA trucks (1:14).
The bumper can be mounted on the vehicle frame. As mounting serving two
Best.-Nr.: 2016-9501-C6
specially developed retaining plates, which is positioned flush right behind the
original Tamiya Traverse.
There are recesses for six Carson 3-cell lights
(Carson lights are not included).
Assembly Procedure
Before you put the parts together please read the assembly instructions
carefully and pay attention to the assembly sequence and test the fitting
accuracy of the parts before gluing them together.
It is helpful to fix the parts at first only on a few points with super-glue and
after a check along the edges fully with super-glue or a polystyrene-glue.
The parts are made of polystyrene, if you use super-glue in combination with
activator spray, please be aware that the activator spray can destroy
polystyrene – because of that you should use it very carefully or use only
polystyrene-glue.
Version 2.0 – 20.05.2017
