ACM-DB-2M

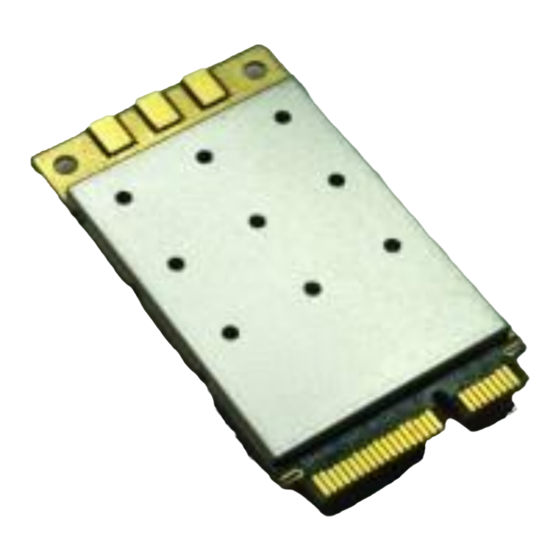

Rugged/Military grade 2.4/ 2x2 MIMO Wi-Fi® Radio Transceivers
Features
•
Qualcomm-Atheros QCA9890-BR4B Chipset with Extended Temperature Range
•
Up to 1.3 Gbps Throughput with 3x3 MIMO Technology
•
Calibrated High Power 2.4 GHz (29 dBm) afor Extended Range
•
802.11 Dynamic Frequency Selection (DFS) in AP and Client mode
•
Supported by OpenWRT and Ath10k Open-Source Driver
•
MiniPCIE Interface
Advertisement
Table of Contents
Summary of Contents for Doodle Labs ACM-DB-2M

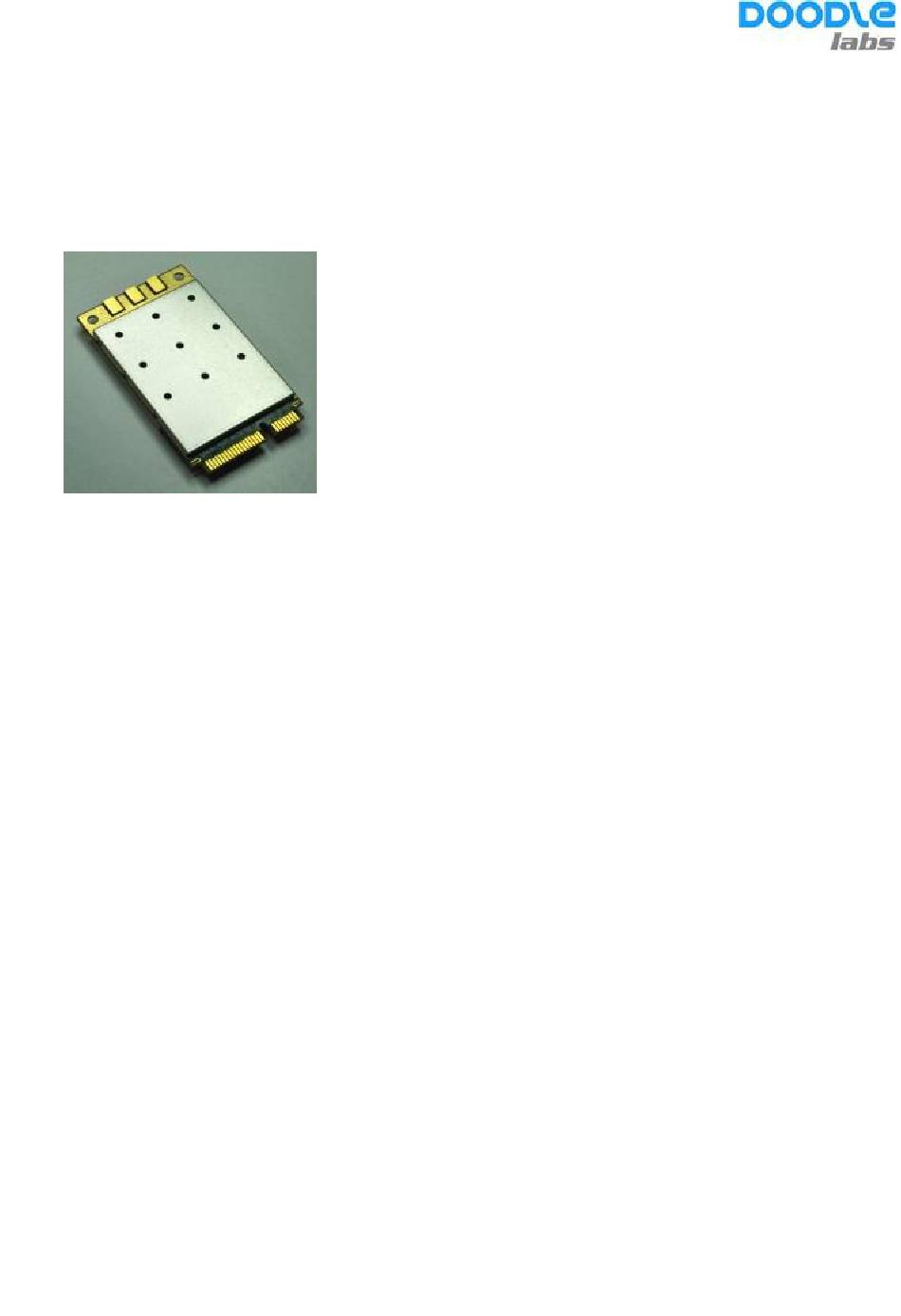

- Page 1 ACM-DB-2M Rugged/Military grade 2.4/ 2x2 MIMO Wi-Fi® Radio Transceivers Features • Qualcomm-Atheros QCA9890-BR4B Chipset with Extended Temperature Range • Up to 1.3 Gbps Throughput with 3x3 MIMO Technology • Calibrated High Power 2.4 GHz (29 dBm) afor Extended Range •...
- Page 2 Installation and Usage The ACM-DB-2M has been FCC certified for indoor usage with Superbat 3-dBi rubber-duck antennas (WA2-1321-S02SP1-030 in the 5-GHz bands, and WA2-995-S02SP1-030 antennas in the 2.4GHz band). The ACM-DB-3 mates with a standard PCIE-mini slot and integrates with the Ath10k software driver which is pre-...
- Page 3 TECHNICAL SPECIFICATIONS Model No. ACM-DB-2M(Rugged/Military Applications, 802.11ac) MAC Chipset QCA9890-BR4B with Extended Temperature range for Outdoor and Rugged models) Open Source Linux Driver ath10k Software Support OpenWRT (Wireless Router/Linux OS) Center Frequency Range 2.412 GHz ~ 2.484 GHz This varies by the regulatory domain Channel Bandwidth/(No.
- Page 4 ** Throughput of a wireless link depends on many environmental parameters. Here the bench measurement results are shown to give an indication of the real life performance of Doodle Labs modules. These results are lower than the theoretical values published in most of the literature. They do not include distance related derating.
- Page 5 Transmitter Spurious Emission -40 dBc (Minimum) Suppression RF Power control by Driver In 0.5 dBm steps. Accuracy of power calibration ±2 dBm RF Hardware Disable Pin 20 of miniPCI-E interface. (Required for FAA compliance) Control for External Power Amp Available as an optional configuration Spectral Analysis 8 bit resolution spectral FFTs available for software analysis PHYSICAL, ENVIRONMENTAL AND OTHER SPECIFICATIONS...
- Page 6 FCC Statement FCC standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 External antenna with gain ANT0: 7dBi, ANT1: 7dBi FCC Regulatory Compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 7 Cet équipementdevrait être installé et actionné avec une distance minimum de 20 centimètres entre le radiateur et votre corps. Singapore: USA: Doodle Labs (SG) Pte. Ltd. Doodle Labs LLC 150 Kampong Ampat 2 Mattawang Drive KA Center, Suite 05-03...
