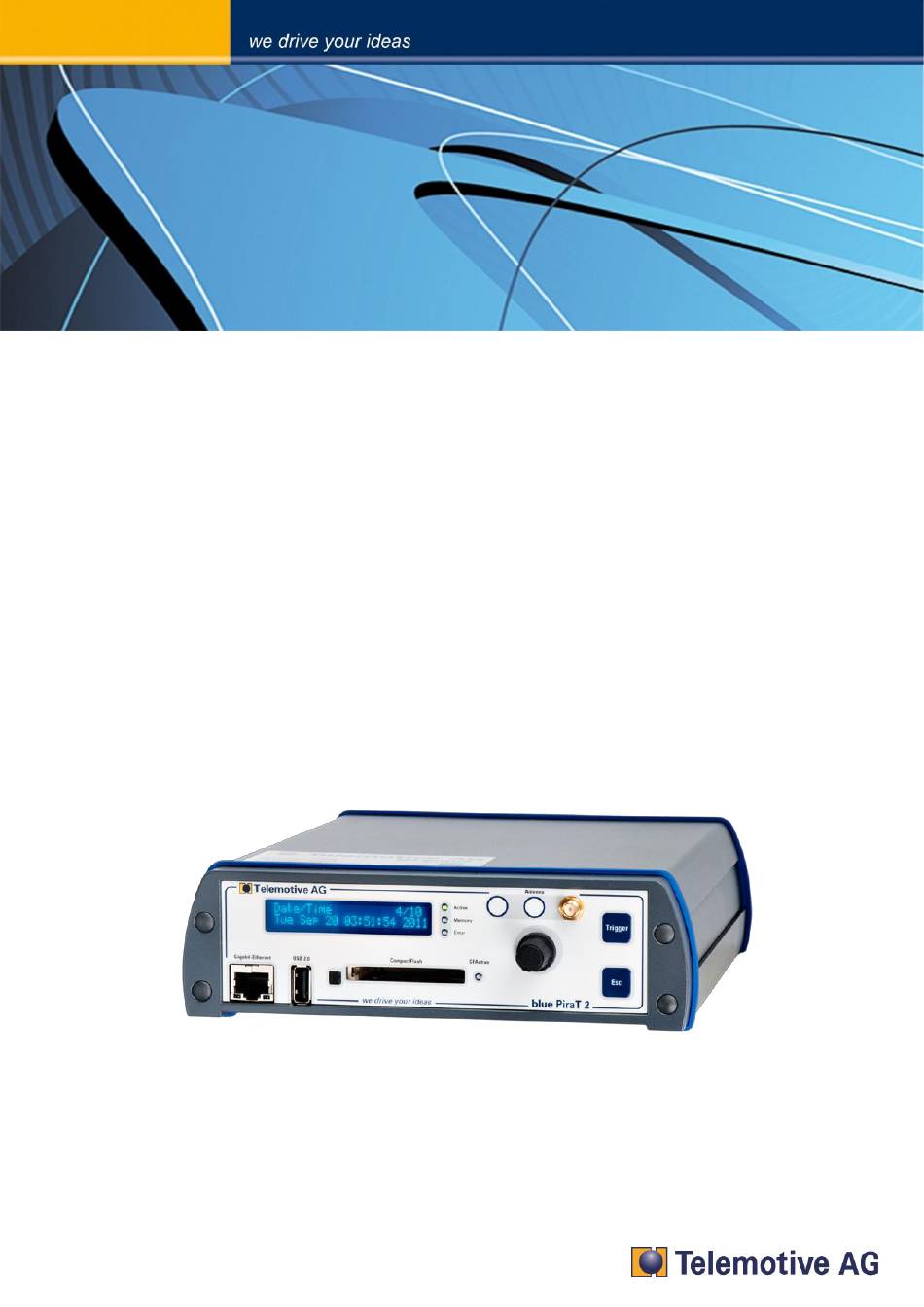

blue PiraT2
Camera User Guide
Version 1.9.1 - 29.01.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the blue PiraT2 and is the answer not in the manual?

Questions and answers

Related Manuals for Telemotive AG blue PiraT2

Summary of Contents for Telemotive AG blue PiraT2

  • Page 1 PiraT2 Camera User Guide Version 1.9.1 - 29.01.2014...

  • Page 2: Table Of Contents

    11.4. Updating the license of a blue PiraT2 ................ 32 Updating blue PiraT2’s client ..................33 11.5. Configuration of the blue PiraT2 to use cameras or video encoder ....... 34 12.1. General settings ......................34 12.2. Camera settings in blue PiraT2 client ................ 35 12.3.
  • Page 3 PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 2 Download video data ......................37 Converting the video data ....................37 Watching the videos ......................38 Contact ..........................39 bP2_Camera_UserGuide_V1.9.1.doc...

  • Page 4: License Agreement

    Software. 3. The software is a copyright property of the Telemotive AG. The program or parts of it may not be further licensed to third parts, rented, sells, or be further marketed, otherwise, in any form without explicit Written approval by Telemotive AG.

  • Page 5: Product Liability

    (including negligence) or other legal or equitable theory. The burden of proof is with the customer. 4. The Telemotive AG does ensure the legal warranty according to German law. Except for warranties expressly set forth in this agreement, any and all products are delivered “as is”...

  • Page 6: Overwiev

    The following documentation describes the usage of a system composed of an AXIS Video- Encoder Q7404 or P7214, the AXIS Network-Cameras 207, 210 or 211 and a blue PiraT2 data logger. The Video-Encoders are used to connect analog (PAL / NTSC) cameras. The network cameras can be connected directly.

  • Page 7: System Requirements

    The blue PiraT2 is an optimized data logger developed by Telemotive AG. The communication of bus systems and control units are monitored and relevant data can be recorded very precisely with the blue PiraT2. The collected data are stored on the blue PiraT2 and can be downloaded to a PC blue PiraT2 Ethernet Kit This device is connected via a FCI cable to the blue PiraT2 and via Ethernet with the AXIS Server.

  • Page 8: Setup Video Encoder Axis Q7404

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 7 Setup Video Encoder AXIS Q7404 5.1. Connecting to the Q7404 Connect your PC with the Video-Encoder via Ethernet. The video signal has to be connected to the Video-Encoder port. Connect the Video-Encoder to the power supply. Wait until the startup is complete (All LEDs are colored in green).

  • Page 9: Installing The Admin User

    When you logged into the Video Encoder the first time, you can change the language settings if required. After your confirmation, you can see the live stream from camera 1. 5.3. Installing the admin user The blue PiraT2 camera application needs a special user with administrator rights. bP2_Camera_UserGuide_V1.9.1.doc...
  • Page 10 (no user name or password required)” (7) and confirm all with “Save” (8). We recommend these settings: User name: admin Password: 2x8bg4 Note: To be sure to get access to the Video Encoder by the blue PiraT2 please use the properties above. bP2_Camera_UserGuide_V1.9.1.doc...

  • Page 11: Setting Date And Time

    Attention: Always set the blue PiraT2 time before you start logging. It is impossible to change the timestamp at recorded video data. This means, the setup of a new logger time before downloading does not change the time within the video pictures. In this case, the timestamps of the other channels and the video picture timestamp could not match.

  • Page 12: Ip-Configuration

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 11 The set up for embedded timestamp is finished. 5.5. IP-configuration Change to the entry “TCP/IP” (12) and use static IP (13) with the following data (14): IP address: 192.168.1.90...
  • Page 13 PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 12 For reconnecting you have to connect to the Video Encoder again as described in chapter 5.2. The first camera, connected to the Video-Encoder, is now configured. If more than one camera...

  • Page 14: Setup Video Encoder Axis P7214

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 13 Setup Video Encoder AXIS P7214 6.1. Connecting to the P7214 Connect the AXIS P7214 via Ethernet to your PC and to the power supply. The video signal has to be connected to the Video-Encoder port.

  • Page 15: Installing The Admin User

    6.3. Installing the admin user The blue PiraT2 camera application needs a special user with administrator rights. Open “Setup” (1), “Basic Setup” => “Users” (2) and choose “Add…” (3). Name the new user “admin” and define a password (4). Keep the data in mind or write it down. Choose the option “Administrator”...

  • Page 16: Setting Date And Time

    Password: 2x8bg4 Note: To be sure to get access to the Video Encoder by the blue PiraT2 please use the properties above. 6.4. Setting date and time Change to the entry “Date & Time” (9) and activate the checkbox “Set manually” (10).

  • Page 17: Ip-Configuration

    Page 16 Attention: Always set the blue PiraT2 time before you start logging. It is impossible to change the timestamp at recorded video data. This means, the setup of a new logger time before downloading does not change the time within the video pictures. In this case, the timestamps of the other channels and the video picture timestamp could not match.
  • Page 18 PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 17 The AXIS P7214 has only one IP address. The configuration of a camera automatically changes the settings of the others. It is therefore unnecessary to set the other cameras.

  • Page 19: Save And Restore The Video Encoder Settings

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 18 Save and restore the Video Encoder settings To save all settings oft he Video Encoder you can use the tool AXIS Camara Management Software, which you can download from AXIS after registration.
  • Page 20 PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 19 To save the current settings please rightclick your device and use the option => Parameter Management => Create Parameter File … With [X] Select / Deselect all and then [Save] you can save the configuration of the Video Encoder to your local system..

  • Page 21: Resetting The Video Encoder Axis Q7404 Or P7214

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 20 Resetting the Video Encoder AXIS Q7404 or P7214 If something is configured incorrectly in the camera or the password is lost, it is important to reset the video-server for a new configuration. This will reset all parameters in all 4 video channels (including all IP addresses) to the factory default settings: First disconnect the power from the AXIS Server.

  • Page 22: Connecting Axis Video Encoder To Blue Pirat2

    (red/+/clamp30 and black/GND/-/clamp31) with the vehicle battery or a power supply. Connect the blue PiraT2 via the FCI cable with the blue PiraT2 Ethernet Kit and the Ethernet Kit with the AXIS Server via Ethernet. The video signal has already to be connected to the Video- Encoder port.

  • Page 23: Configuring Stand Alone Cameras Axis 207/210/211

    Page 22 Configuring stand alone cameras AXIS 207/210/211 By using an blue PiraT2 without an switch or build in switch you have to connect the camera with an Crossover Ethernet cable. This is a point to point connection without autonegotiation.
  • Page 24 PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 23 1. Open with „Apply Template“ menu the delivered blue PiraT2 camera configuration-template 2. Confirm the “Apply Template Dialog” with OK 3. Check the configuration process in the “Results” Dialog.

  • Page 25: Adding The Camera User „Admin

    Figure 3: Check the configuration process in the “Results” dialogue Adding the camera user „admin“ 10.3.2. The blue PiraT2 camera application needs a special user „admin“. 1. Select configured AXIS camera and activate the camera menu with the right mouse button. “User Management -> Add/Edit User…”...
  • Page 26 PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 25 Figure 4: Select the “Add/Edit User…” dialog Figure 5: Adding the camera user “admin” bP2_Camera_UserGuide_V1.9.1.doc...

  • Page 27: Manual Configuration Of Axis 207/210/211

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 26 10.4. Manual configuration of AXIS 207/210/211 Please connect the camera with the PC/Laptop via a cross-over Ethernet cable, enter the camera's IP address in your web browser and click on Setup. If you don't know the camera's IP address, use the IP-Utility tool on the Axis CD-ROM for detection.

  • Page 28: Create Admin User Account

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 27 Figure 7: TCP/IP settings 10.4.3. Create admin user account For the aim of automatic time synchronization between the data logger and the camera it is necessary to create an admin user account on the camera. This can be done under Basis ...

  • Page 29: Video And Image Settings

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 28 Caution: This password has also to be configured in the client. 10.4.4. Video and image settings To display the data logger time at the top of the video image, the checkboxes Include date and ...

  • Page 30: Mpeg-4 Settings

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 29 Figure 10: Date and time settings 10.4.6. MPEG-4 settings   The following settings have to be entered under Video & Image Advanced MPEG-4: Length: 32 (GOV Settings). The maximum bit rate is limited to 3000 kbit/s (Bit Rate Control) Figure 11: MPEG-4 settings bP2_Camera_UserGuide_V1.9.1.doc...

  • Page 31: Preparing The Blue Pirat2

    11.1. Startup blue PiraT2 Switch the blue PiraT2 on by pressing the [Trigger] button (1) and wait until the Logger is ready (Startup display disappears). By pressing the rotary knob (2) you will enter the Operation menu. Here choose the Menu „[1] Info“ and then the Info-Screen „9/10 IP-address“(3).

  • Page 32: Shutting Down Blue Pirat2 Manually

    11.2. Shutting down blue PiraT2 manually To shut down the blue PiraT2 manually you can use the rotaring knob (1) by choosing [3] Functions, shown in the display (2) and accept the Standby mode by pressing the rotaring knob. To restart the logger please use the ON/Trigger button (3).

  • Page 33: Updating The License Of A Blue Pirat2

    Number too (7). 11.4. Updating the license of a blue PiraT2 After clicking of “Update firmware” ((1) chapter 8), the current licenses appear (2): In order to update licenses, click on the “Update licenses” button (3) and choose the file containing the license (4) (the file extension should be .tml).

  • Page 34: Updating Blue Pirat2'S Client

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 33 Updating blue PiraT2’s client 11.5. After a successfully update, the logger now is running with the new firmware. For using all new features in the client too, please install the new version of the client which you can now download from the logger as described in chapter 9.

  • Page 35: Configuration Of The Blue Pirat2 To Use Cameras Or Video Encoder

    12.1. General settings Configure the blue PiraT2 as DHCP-Server: Open configuration (1), “General”, “Network settings” (2) and activate the checkbox “DHCP – Server” (3). Please be sure about your “Standby” setting (General -> Standby). You can activate or deactivate automatic standby.

  • Page 36: Camera Settings In Blue Pirat2 Client

    192.168.1.90 192.168.1.90 192.168.1.90 192.168.1.90 After set up, click on the button “Write to data logger”. The button is placed right below in the blue PiraT2 client. The configuration is finished and the blue PiraT2 starts recording the Video signal. bP2_Camera_UserGuide_V1.9.1.doc...

  • Page 37: Front Display Of Blue Pirat2

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 36 12.3. Front display of blue PiraT2 By pressing the “Esc” button at the front of the blue PiraT 2 once or several times, the main window appears on the display.

  • Page 38: Download Video Data

    Converting the video data The application [Convert data] allows the storage of data from the blue PiraT2 in a requested format on a PC or external storage device.

  • Page 39: Watching The Videos

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 38 Watching the videos The *.Mpeg4 video files can be used only if they have been stored on a computers disk first. They can be played on any standard video player.

  • Page 40: Contact

    PiraT2 - Camera User Guide Version 1.9.1 - 29.01.2014 Page 39 Contact Telemotive AG Office München Frankfurter Ring 115a 80807 München Tel.: +49 89 357 186-0 Fax.: +49 89 357 186-520 E-Mail: info@telemotive.de Web: www.telemotive.de Vertrieb Tel.: +49 89 357 186-550 Fax.:...
