DIGITAL / ANALOG CONVERTER (DAC)
USER GUIDE: D-180 / D-280 / D-580

Advertisement

Table of Contents
loading

Summary of Contents for AAVIK D-180

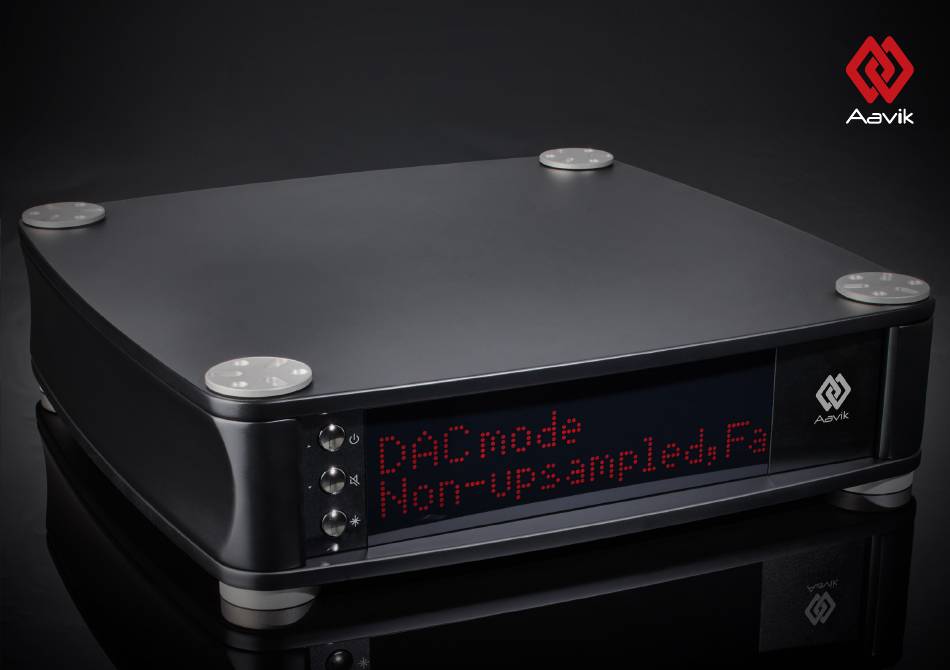

  • Page 1 DIGITAL / ANALOG CONVERTER (DAC) USER GUIDE: D-180 / D-280 / D-580...
  • Page 2 THE EQUIPMENT SHOULD BE SERVICED BY QUALIFIED SERVICE PERSONNEL 1. Read these instructions. 8. Unplug this apparatus during lightning – Take care that objects do not WARNING storms or when unused for long periods fall and liquids are not spilled into the 2.
  • Page 3 BUTTONS ON THE FRONT OF THE DAC ON / OFF LEFT RIGHT ON / OFF RIAA R·280 - MADE IN DENMARK LEFT RIGHT PHONO RIAA R·280 - MADE IN DENMARK PHONO RS-232 TRIGGER THROUGH RS-232 LINE OUT TRIGGER THROUGH LINE OUT LEFT RIGHT 100-240V AC...

  • Page 4: Front Panel Functions

    FRONT PANEL FUNCTIONS DISPLAY MUTE / REMOTE CONTROL PAIRING BUTTON NAVIGATION/MENU BUTTON During normal operation the left side of the display The mute button has multiple functions. When you The navigation button lets you select the desired shows the selected source. press this button briefly, it will mute the outputs of source.

  • Page 5: Rear Panel Features

    50-60Hz. The power inlet accepts power cables with (32-192kHz, 16-24 bit) TOSLINK inputs. an IEC 60320-C13 female connector. To ensure the best performance, please consult your Aavik Acous- BNC DIGITAL INPUTS tics dealer for a suitable mains cable. The DAC comes equipped with two electrical S/P-DIF DIGITAL IN (32-192kHz, 16-24 bit) digital inputs.

  • Page 6: Factory Reset

    APPLE REMOTE A A A A A A A UP - used for changing menu settings. DOWN - used for changing menu settings. INPUT +, Press this button, to move to the next input. From Line 1 to Line 2 etc. INPUT -, Press this button, to move to the previous input.

  • Page 7: Menu Functions

    MENU FUNCTIONS Using the front panel or remote control, you can change many settings of the DAC. Using the remote, you press the “Menu” button to enter or exit the menu. Using the front panel, you press and hold the navigation button for 3 seconds.

  • Page 8: Specifications

    SPECIFICATIONS Aavik D-180 Aavik D-280 Aavik D-580 Digital: 2 x BNC S/P-DIF (32 - 192 k-samples, 24-bit 2 x BNC S/P-DIF (32 - 192 k-samples, 24-bit 2 x BNC S/P-DIF (32 - 192 k-samples, 24-bit 2 x TOSLINK optical (32 – 192 k-samples, 24-bit 2 x TOSLINK optical (32 –...
  • Page 9 Aavik Acoustics Rebslagervej 4 9000 Aalborg Denmark http://www.aavik-acoustics.com...

This manual is also suitable for:

D-280D-580
