Western FCB Series Instructions For Installation, Use And Maintenance Manual

Fan coanda booster

Advertisement

Quick Links

FCB
S E R I E S
F A N C O A N D A B O O S T E R
INSTALLATION, USE AND MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FCB Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Western FCB Series

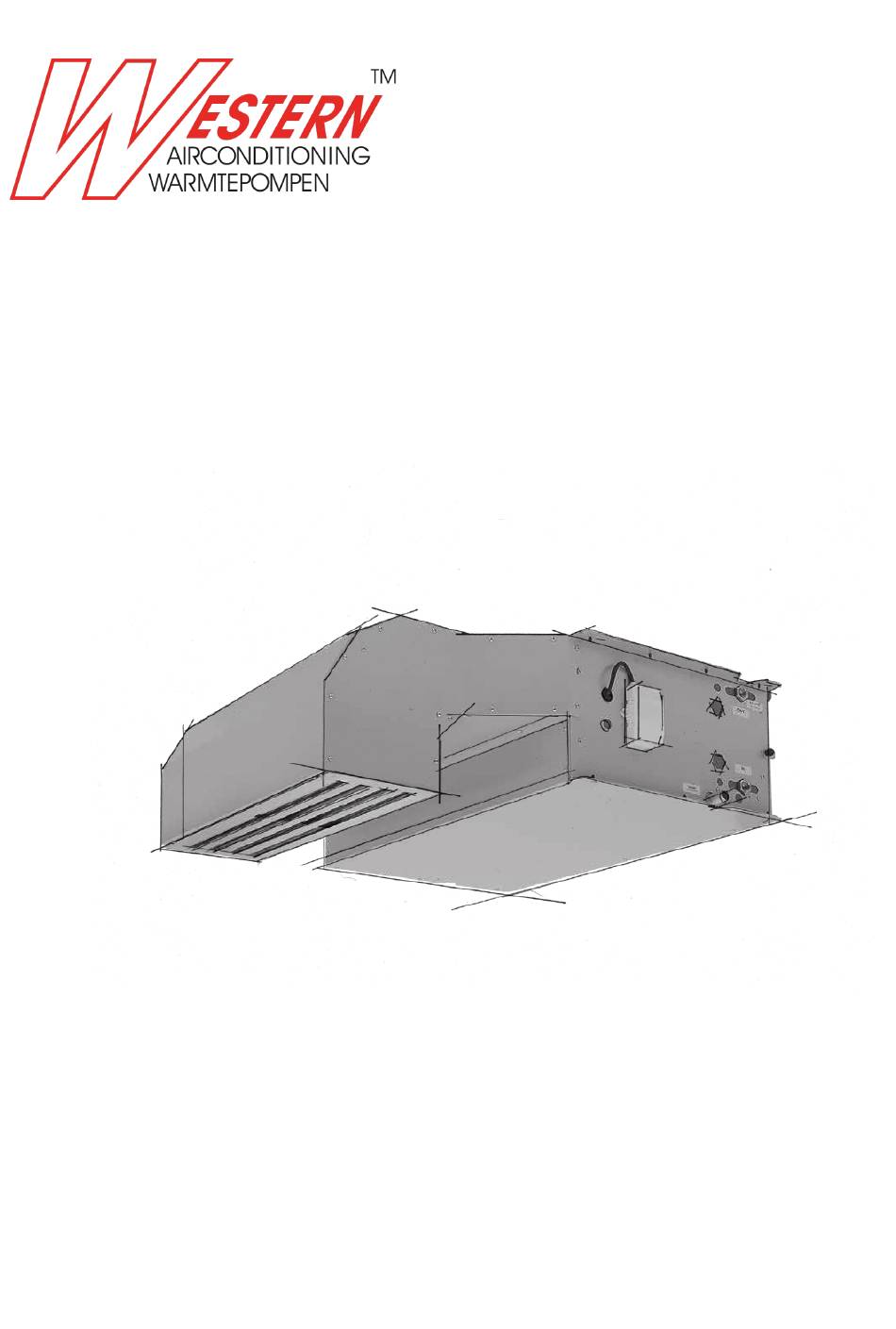

  • Page 1 S E R I E S F A N C O A N D A B O O S T E R INSTALLATION, USE AND MAINTENANCE MANUAL...
  • Page 3: Table Of Contents

    INDEX 1- INTRUDUCTION............................4 2-RECEIVING .............................. 5 3-INSTALLATION INSTRUCTIONS ......................5 3.1-Positioning............................5 3.2-Fixing the unit to the true ceiling......................5 3.3-Hydraulic connections ......................... 6 3.4-Condensate drainage ......................... 7 3.5-False-ceiling installation ........................7 3.6-Slots position regulation ........................12 4- Electrical connections ..........................13 5- Maintenance ............................
  • Page 4: 1- Intruduction

    1- INTRUDUCTION This manual contains the instructions for a right installation and maintenance of the unit. If these instructions will be not respected, the manufacturer will not be responsible of damages to people, things and to the units. The installation and the maintenance must be done by qualified technician. During the operation, the technician must respect all the safety rules (protective clothes for hands and eyes, …).
  • Page 5: 2-Receiving

    2-RECEIVING After receiving, clean the unit from all the packing components. If the units looks damaged or not completed, don’t go on with the installation. Check in the label that the units received is the same of the ordered code. Claims must be submitted by writing within 8 days from receiving.
  • Page 6: Hydraulic Connections

    Before to close the counter-nuts, be sure that the unit is perfectly horizontal, without inclination. 3.3- Hydraulic connections Connect water pipes to the unit with attention, without create damages to the coil or to the valve. The pipes weight must be supported by brackets and not by coil connections. Respect IN/OUT label near the connections.
  • Page 7: Condensate Drainage

    3.4-Condensate drainage The condensate drainage pipes must have a sufficient inclination to the bottom; if it’s not possible, install a condensate drainage pump. To prevent the penetration of odors from outside, we recommend forming a siphon in the line. Condensate drainage 3.5-False-ceiling installation To install the grille, must be made a rectangular hole in the false ceiling of the following dimensions: FCB-06...
  • Page 8 Installation in standard false-ceiling (lateral view) Installation in standard false-ceiling (frontal view) Installation in modular block false-ceiling (lateral view)
  • Page 9 Installation in modular block false-ceiling (frontal view) To fix the grille, do as follows : Push the four C elements in the four corners of the grille and place the M4 screw as in picture. Fix the screw with O-ring. Using esagonal screw-driver, fix M4 screws on the threaded brackets of the plenum...
  • Page 10 According to the thikness of false-ceiling, the bracket of the plenum can be positioned in higer or lower position To allow accessibility to the unit, a removable inspection panel is needed in the false-ceiling, as shown in the following drawings.
  • Page 11 FCB-06 FCB-12 FCB-18 L (mm) 1300 1560 2080...
  • Page 12: Slots Position Regulation

    3.6-Slots position regulation The grille has 4 slots, that can be manually regulated to have one or two air flow direction. Usually, after the first regulation, the same slot position can be used in cooling and heating mode : so no other manual adjustment is required.
  • Page 13: 4- Electrical Connections

    In heating mode, if false-ceiling is more than 3m high, may be necessary to change slots position, in order to have vertical air flow. Slot position: vertical air flow 4- Electrical connections Before to work on the electrical wiring, switch-off the power supply and be sure that nobody can switch-on it for mistake.
  • Page 14: 5- Maintenance

    5- Maintenance 5.1-Ordinary maintenance (every 6 months) Filter cleaning : according to the pollution level of the environment, filter can be cleaned more often than usual.. Standard filter is made in polypropylene and is washable with warm water. If during the inspection the filter looks damaged, must be replaced with a new one.
  • Page 15 To remove the fan-deck, screw-off the screws as in the picture below. Screws to remove the fan-deck. To remove the drain pan and the coil, screw-off the screws as in the picture below. Screw to remove drain pan and coil...
  • Page 16 NOTE: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
  • Page 17 ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
  • Page 18 ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...

This manual is also suitable for:

Fcb-06Fcb-12Fcb-18
