Panther X1-EU Hotspot Gateway
www.panther.global
Twitter: twitter.com/PantherMiner
PRODUCT MANUAL
Introduction

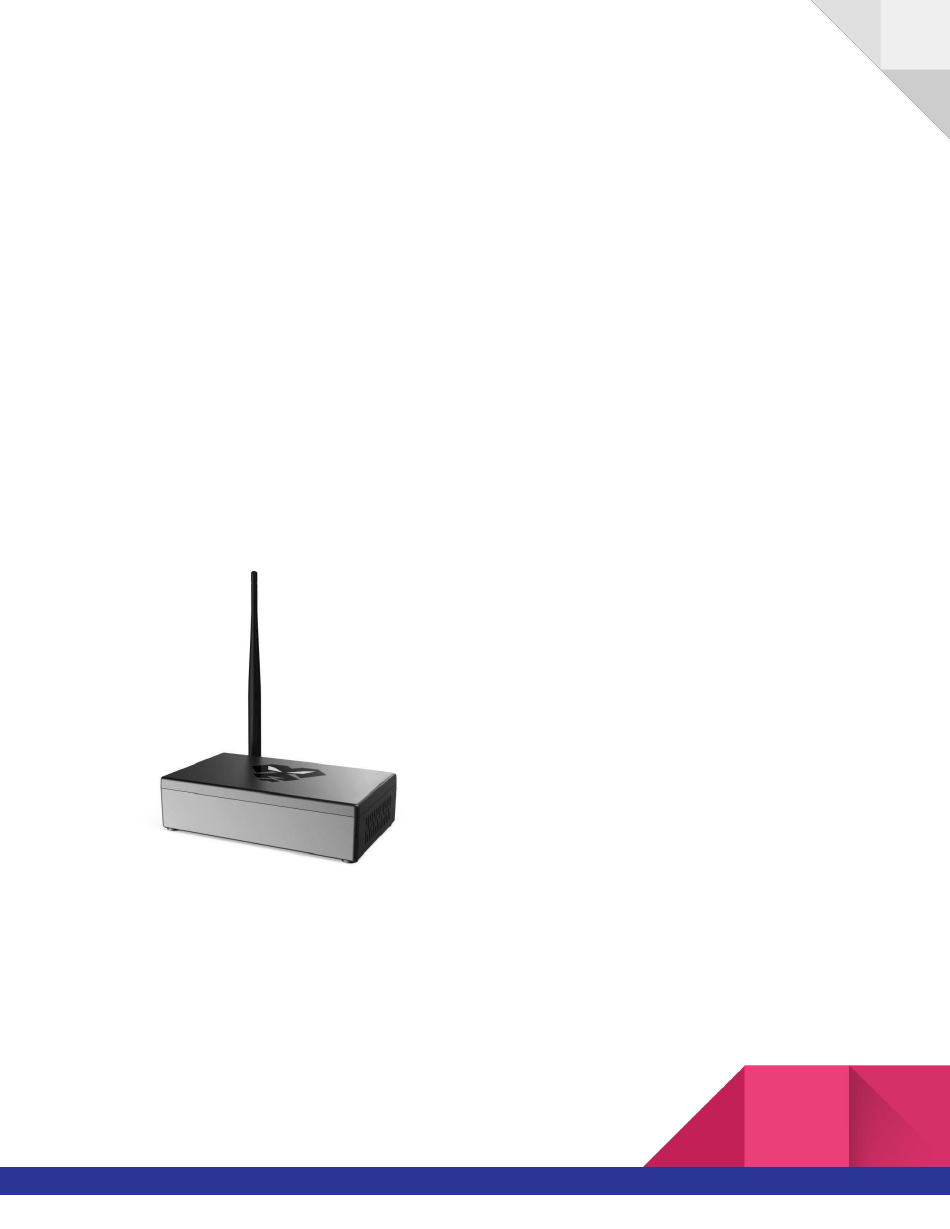

Panther X1 is an ultra-low-power and ultra-long-range IoT hotspot gateway
that works with different IoT networks. As an information converter for the
LoRa communication protocol, Panther X1 helps communicate between
network servers and end nodes.
Pather X1, featuring a signal coverage of
around 10-20 km, runs at an ultra-low
power (5W) and can connect to over 2,000
LoRaWAN end nodes within its range. It is
highly sensitive, safe, reliable, and easy to
interact
with
and
environmental monitoring, asset tracking,
smart agriculture, and other long-range
ultra-low-power IoT applications.
can
be
used
for
Advertisement
Table of Contents
Summary of Contents for Panther X1-EU
- Page 1 Twitter: twitter.com/PantherMiner PRODUCT MANUAL Introduction Panther X1 is an ultra-low-power and ultra-long-range IoT hotspot gateway that works with different IoT networks. As an information converter for the LoRa communication protocol, Panther X1 helps communicate between network servers and end nodes.
- Page 2 Compatible with the Helium LongFi network, Panther X1 can be used as a hotspot to obtain Helium currency (HNT). In addition, this device supports instant block synchronisation and remote control. Users can set it up within a minute at ease by using Helium's official application. At the same time, they can change advanced configurations on Panther X Dashboard to make the device more efficient.
- Page 3 Mainnet and validates wireless coverage delivered by peers. In addition, through the use of a Proof-of-Coverage (PoC) system, Panther X1 can obtain more HNT when a Panther X1 hotspot is within the coverage of other Panther X1 hotspots. The coverage is subject to the environment: ●...
- Page 4 for Europe, the Middle East, Africa and India, and 902-928 MHz for the Americas and Asia-Pacific countries/regions. The ISM band primarily used in China is 470-510MHz. LoRaWAN LoRaWAN is a Media Access Control (MAC) layer protocol developed by the LoRa Alliance, serving as a supplement to the physical layer implementation of LoRa.
- Page 5 Secure and Reliable: With a built-in ECC encryption chip, Panther X1 promises highly secure authentication and reliable connection; Ultra-low Power: Panther X1 is equivalent to a 5W light bulb in power consumption, with daily consumption of 0.12kWh and a monthly cost of around ¥1.8 (or $0.28);...
-
Page 6: Package Content
Connectors Package Content Panther X1 hotspot gateway 1 x3dBi LoRa gateway Antenna Power Adapter... -
Page 7: Product Dimension
Product Dimension... -
Page 8: Hardware Specifications
Hardware Specifications Product Name Panther X1-EU LoRa Specifications LoRa Frequency Band 863MHz~870MHz LoRa Channel Plan EU868 Channel Capacity 8 channels LoRa Output Power Maximum 30dBm Receiving sensitivity -141 dBm @SF12 BW 125kHz -127 dBm @SF7 BW 125 kHz -111 dBm @FSK 50 kbps Platform Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz... -
Page 9: Environment Requirements
Environment Requirements Environmental Operating Temperature 0-50℃ Storage Temperature -40-+85℃ Relative Humidity 20%-90%RH, non-condensing Heat Dissipation Radiator Grille Lights Each LED light colour represents the operating status of the device. Colour Status Yellow Connected to power but not connected to the internet. Green Online/device is working properly Blue...
