ACO INS-ZS-ACC Operating And Installation Instructions

Standalone code lock plus card and key fob reader

OPERATING AND INSTALLATION INSTRUCTIONS FOR THE INS-ZSACC STANDALONE CODE

1. INSTALLATION

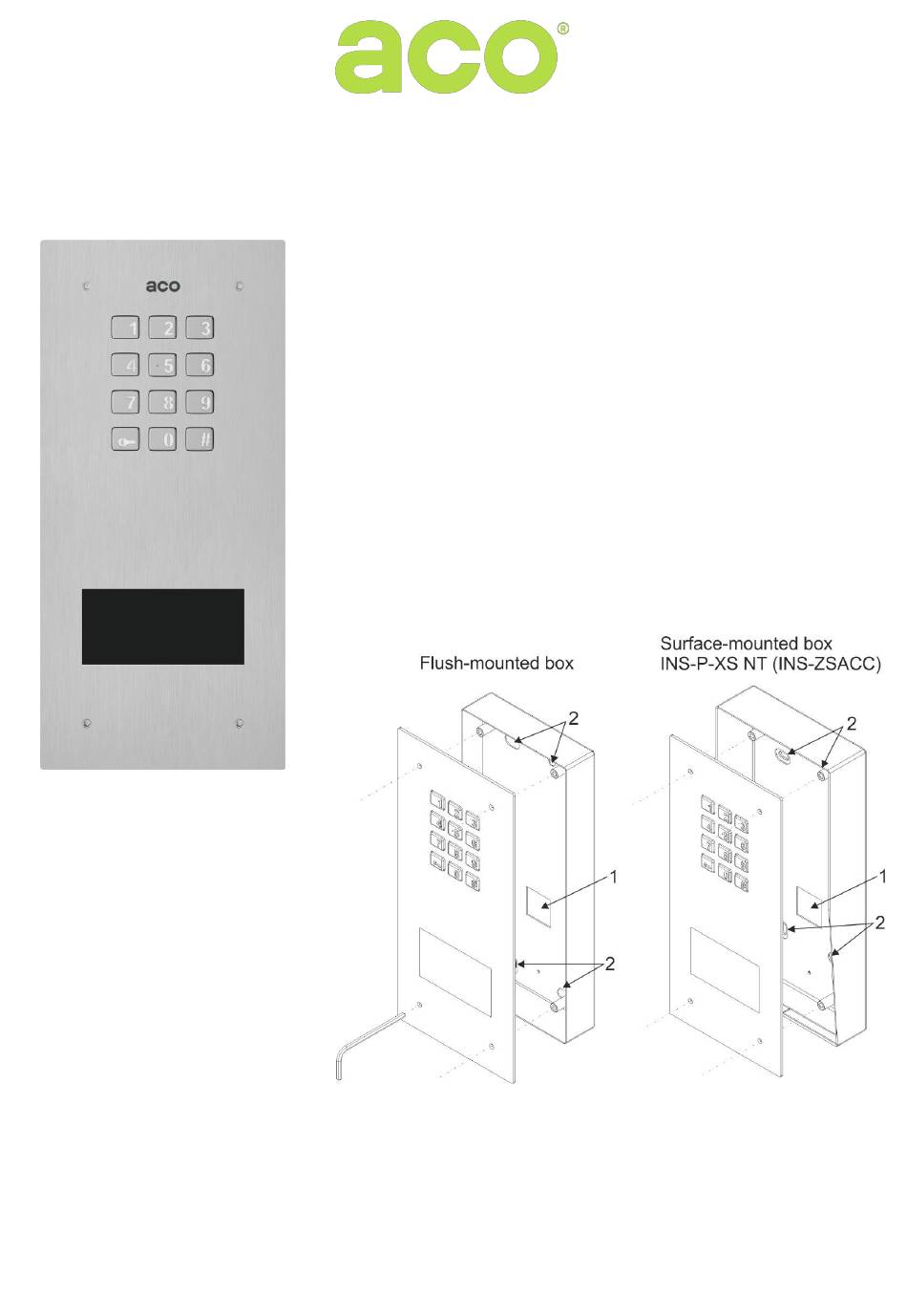

The INS-ZSACC box is flush mounted. Lead the wires through hole 1. Fix the box with expansion

bolts through holes 2, when installing in soft materials, such polystyrene, fix the box using mounting

foam or plaster. Screw in the enclosure with 4 screws, using a size 3 Allen key.

The device can also be surface-mounted using a surface-mounted box to be purchased

separately (trade designation: INS-P-XS NT (INS-ZSACC)). Fix the surface-mounted box to the wall

with expansion bolts through four holes 2. Lead the wires through hole 1. Screw in the enclosure with

4 screws, using a size 3 Allen key.

LOCK PLUS CARD AND KEY FOB READER

INS-ZS-ACC combines two autonomous devices INS-ZS and

INS-ACC in one panel. It is a microprocessor-based device that

integrates the features of a code lock and a proximity element

reader used to control one or more outputs. The exit can be

activated by using the right code or a proximity key fob/card

assigned to relevant output. The devices can be configured as

needed to work together to control a common output, it can also

be configured separately for up to four independent outputs. It

can directly control external devices such as an E-lock, reversible

E-lock (output 1 only) or an optional relay which can be used to

control any other device such as a magnetic e-lock, a barrier, etc.

Table of Contents

Do you have a question about the INS-ZS-ACC and is the answer not in the manual?

Page 1 OPERATING AND INSTALLATION INSTRUCTIONS FOR THE INS-ZSACC STANDALONE CODE LOCK PLUS CARD AND KEY FOB READER INS-ZS-ACC combines two autonomous devices INS-ZS and INS-ACC in one panel. It is a microprocessor-based device that integrates the features of a code lock and a proximity element reader used to control one or more outputs.
Page 2 2. REFERENCE WIRING DIAGRAMS Both modules running together, parallel triggering of both modules for output 1 Both modules running together, parallel triggering of both modules for output 2, output 1 operated independently. All module outputs operated independently of each other. In this case, remove the EXTMOD plug and connect the power supply to both modules.
Page 3 PLEASE NOTE! To ensure proper functioning and use safety, connect the door entry unit to earth by connecting the grounding terminal on unit’s body with relevant protective installation (PE). Use a 1 mm cross-section cable (such as LY1,0) to connect the device to power supply. The maximum cable length for E-lock circuit is 7 m, for power supply circuit - 30 m.
Page 4 Waste electrical equipment must not be disposed of with other waste. It should be stored in places designated for this purpose. For this purpose, please contact the responsible institutions or companies involved in waste recycling. - Directive 2002/96/EC of 27.01.2003 ACO Sp. z o.o. sp. komandytowa, 62-002 Suchy Las, ul. Diamentowa 7, tel./ fax 61 843 93 72 www.aco.com.pl...
