morse 4560BSS-P Operator's Manual

The Specialist In Drum Handling Equipment
CONTENTS
Installation Instructions. . . . . . . . . . . . . .
Dimensions. . . . . . . . . . . . . . . . . . . . .
Operating Instructions. . . . . . . . . . . . . . . . . . . .
Parts Diagram. . . . . . . . . . . . . . . . . . . . . . . . .
INSTALLATION INSTRUCTIONS
1. Position Rim Clamp Assembly
on INSIDE of drum holder bracket
(item 1) with holes aligned
2. Bolt in place with
2 bolts (item 2) and
2 washers (item 3)
using 9/16" wrench
WARNING:
This product can expose you to
chemicals including barium sulfate,
cobalt, titanium dioxide, and
2-methylimidazole, which are known
to the State of California to cause
cancer, and bisphenol-A, which is
known to the State of California
to cause birth defects or other
reproductive harm.
For more information go to
www.P65Warnings.ca.gov
morsedrum.com
Copyright 2021 - Morse Mfg. Co., Inc.

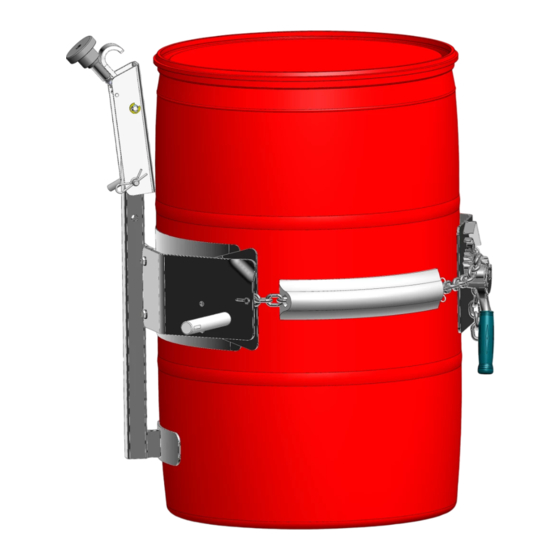

Kit: Stainless Adjustable Rim Clamp
Operator's Manual
for Morse
Page
Stainless Steel Adjustable Rim Clamp Kit
1 - 2
2
Kit # 4560BSS-P
2 - 3
Serial number 0821 to ____ (MMYY)
4
service@morsedrum.com
Form PL4560BSS-P (0821-____) (Updated 18 Nov, 2021)
Kit # 4560BSS-P
(315) 437-8475 103 Kuhn Rd.
Syracuse, NY, 13208 U.S.A.
1
