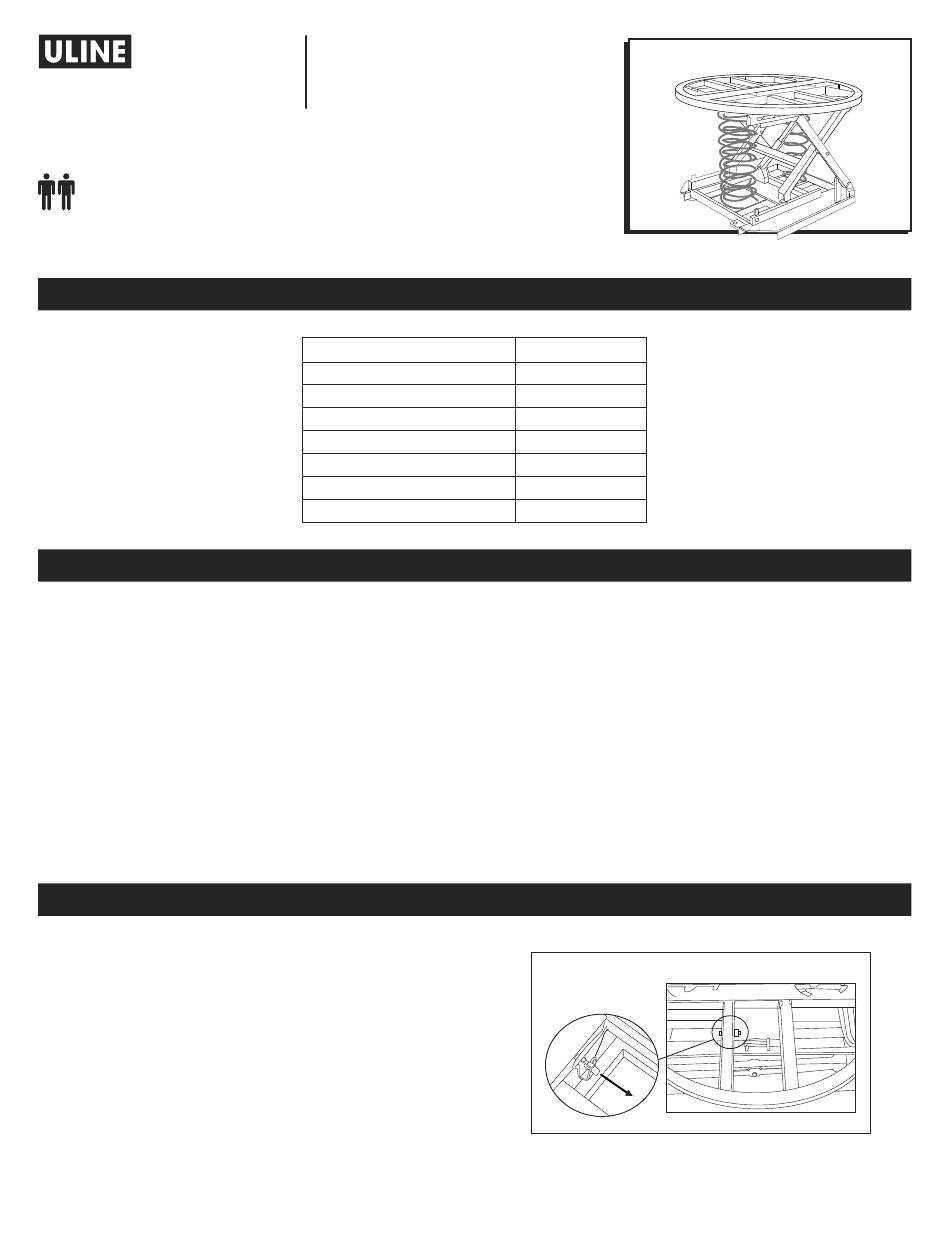

H-8935
SPRING-LOADED
PALLET POSITIONER
Two Person Assembly
Recommended
SAFETY
Machine should be installed, operated and maintained
by trained and/or qualified personnel only.
LABELING
Machine has labeling to indicate potential hazards
it may pose when operating and/or maintaining. All
labels must be legible. If any label is missing, damaged
or otherwise illegible, contact the manufacturer for
replacement labels.
RAISING THE PLATFORM
1.
Remove the rotating ring by lifting it off platform. Set
ring aside.
2. Locate the damper and pin near middle of base.
Remove pin to release damper. (See Figure 1)
PAGE 1 OF 12
1-800-295-5510
uline.com
TECHNICAL DATA
SPECIFICATIONS
Height (Lowered)
Height (Raised)
Platform Diameter
Load Capacity
Base Length
Base Width
Product Weight
SAFETY
INSTRUCTIONS
Pour le français, consulter les pages 9-12.
H-8935
9½"
27¾"
43⁄"
4,500 lbs.
36"
36"
420 lbs.
SIGNAL WORDS
• DANGER – indicates a hazardous situation that, if not
avoided, will result in death or serious injury.
• WARNING – indicates a hazardous situation that, if
not avoided, could result in death or serious injury.
• CAUTION – indicates a hazardous situation that, if not
avoided, will result in a minor or moderate injury.
• NOTICE – indicates information considered
important, but not hazardous (e.g., messages
relating to property damage).
Figure 1
Para Español, vea páginas 5-8.
0621 IH-8935
