Summary of Contents for LP LP1501

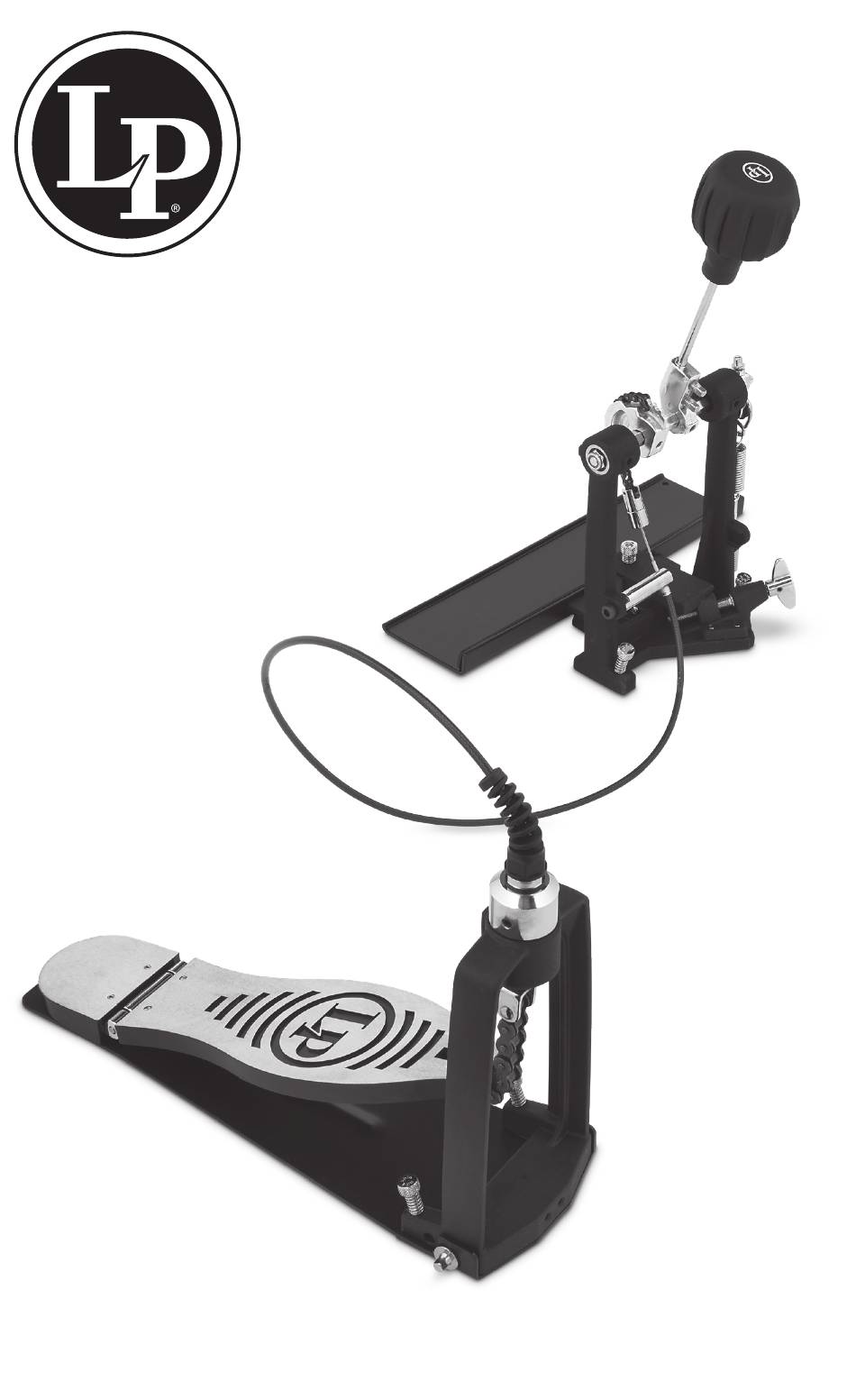

- Page 1 LP1501 Cajon Pedal Cable Replacement Instructions LP1501-CK...
- Page 2 STEP 1 You will need the following items to install your replacement cable: Pull the top end of the tension spring upwards and away from the beater frame, and remove the spring INCLUDED WITH REPLACEMENT KIT: attachment hanger from the black bearing ring, as shown in Figures 1.1 and 1.2. If it is too difficult to pull the spring upwards, try loosening the tension adjustor at the bottom of the spring.
- Page 3 STEP 4 FOR STUCK CABLES Using a ¾-inch wrench or an adjustable crescent wrench, loosen the black nut at the bottom of the During manufacturing, a small amount of glue is used on the set screws to strengthen the cable cable sheath (see Figures 4.1 and 4.2).
- Page 4 STEP 5 STEP 7 Pull the small, black sheath stopper out of the screw top (see Figures 5.1 and 5.2). If it is difficult to Slide the felt washer all the way off the cable pull out the stopper with your bare hands, try pulling it out with a pair of needle-nose pliers. (see Figure 7.1) and set it aside.
- Page 5 STEP 9 STEP 11 Pull the entire steel cable through the chain attachment link, and all the way out of the channel at the Slide the felt washer onto the new cable, all the way down to the footboard chain, as shown in top of the pedal frame (see Figure 9.1).
- Page 6 STEP 13 STEP 14 If the cable has any fraying at the end, grasp the frayed steel fibers with needle-nose pliers and gently Once the steel cable is threaded into the squeeze and twist the steel fibers together, as shown in Figure 13.1. This will make it easier to insert cable housing, turn the entire footboard the cable end into the housing.
- Page 7 STEP 15 STEP 16 Stand the footboard frame upright. Insert the housed cable into the smooth end of the sheath stopper Insert the housed cable into the wide end of the black cable sheath (see Figure 16.1). Slide the sheath (see Figure 15.1).
- Page 8 STEP 17 STEP 18 Stand the beater frame upright. Insert the housed cable into the underside hole of the angle guard, as Rotate the cam and beater to the proper angle, so that the beater chain is laying OVER THE TOP of the shown in Figure 17.1.
- Page 9 When you take your hand off the footboard, the beater should spring back to its original position. Your pedal now has a sturdy and secure new cable and is ready for use. Beater motion Press down on footboard to test Figure 20.1 LP1501-CK © 2022 Latin Percussion.
