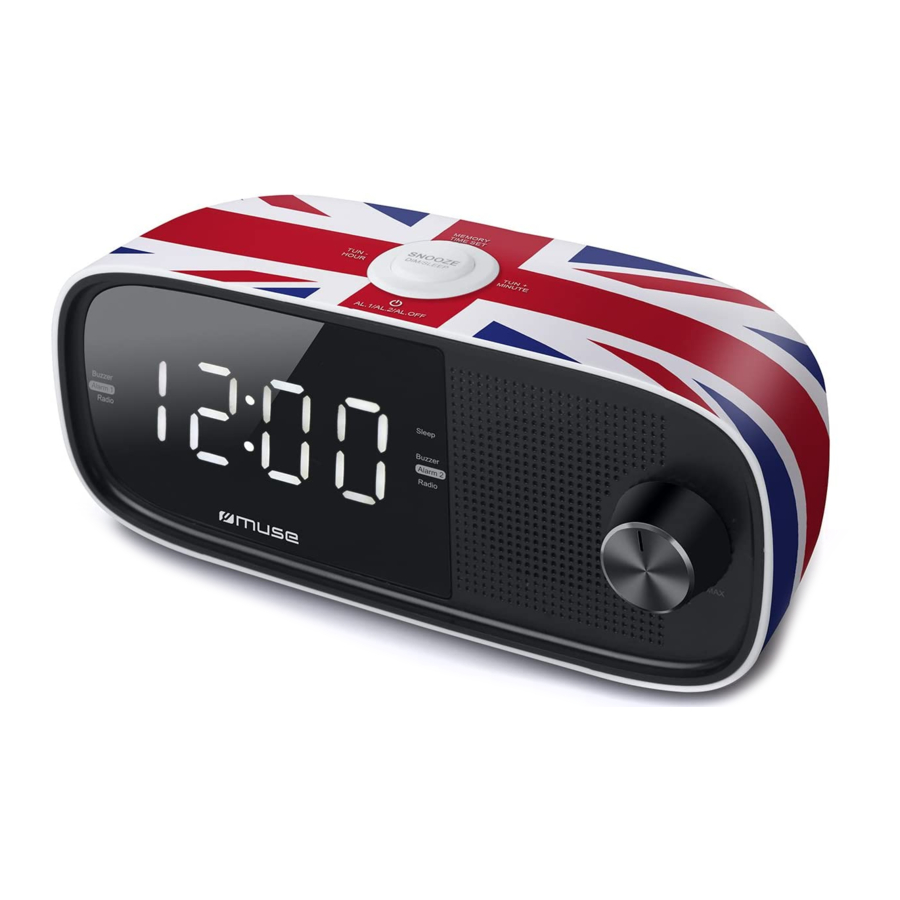

Muse M-168 UK, M-168 NY - Alarm Clock Manual

LOCATION AND DESCRIPTION OF CONTROLS

LED display
Alarm 1 buzzer indicator
Alarm 1 radio indicator
Sleep indicator
Alarm 2 buzzer indicator
Alarm 2 radio indicator
Speaker
VOLUME knob
TUN-: Setting down
HOUR: Hour setting
AL.1: alarm 1
/ AL.OFF: ON/OFF button; Alarm stop
SNOOZE/ DIM/ SLEEP: Interval alarm repetition; Dimmer light intensity of the screen; to fell asleep with the radio
TUN+: Setting up
MIN.: Minute setting
AL.2: alarm 2
MEM./ TIME SET: Memorizations; Setting the clock
Battery compartment
FM antenna
AC power cord

POWER SUPPLY

AC: 230V 50Hz (CE)
DC: 2x1.5V, battery type AAA/R03/UM4 (not included) for back up.
For optimal performance, alkaline batteries are recommended.
These batteries must be replaced every six months.

Insert the plug of power cord into a standard wall outlet.
Install the backup batteries in their compartment. Use only the size and type of batteries specified. Respect the polarity indicated in the compartment. Improper polarity can cause damage to the device. Do not attempt to recharge the batteries, they can catch fire or explode

Backup System: All settings are memorized. However, the clock time could occasionally need to be readjusted. In case of power failure, if backup batteries are not installed, the screen will flash to indicate this power failure and the necessity to redo your settings.

TURN ON/ OFF THE UNIT

In standby mode, press button once to turn on the unit. Long press this button again to turn off the unit.

SETTING THE TIME

In standby mode, press and hold MEM./ TIME SET button, the display will flash. Set the time with HOUR (hour) and/ or MIN. (minutes).
Press MEM./ TIME SET again to confirm.

NOTE: If during the adjustment time no key is activated in 9 seconds, the current display will be automatically stored.

LISTENING TO RADIO

Manual Search

Press once to turn on the radio.
For best reception, extend the FM wire antenna.
Adjust the volume by rotating VOLUME knob to the desired level.
Choose your radio station with TUN+ or TUN-.
To stop listening to the radio, long press again.

Automatic search

Press and hold for few seconds TUN+ or TUN-, the automatic search locates strong stations. A station with a weak signal can be set manually by repeatedly pressing TUN+ or TUN-.
NOTE: During the search operation, the sound level is automatically muted.

Preset stations

This unit can store 10 FM stations.

Manual storage

Select a radio station manually or in automatic search
Press and hold MEM./ TIME SET. "P 01" blinks on the screen.
Press TUN+ or TUN- to select a channel.
Press MEM./ TIME SET to save it.
Repeat steps 1-4 to store other stations.

Listening to station presets

Press MEM./ TIME SET and repeat the operation as many times as necessary to select your station.
Rotate VOLUME knob to adjust the sound level.

SETTING THE ALARM AND THE ALARM MODE

In standby mode, press and hold AL.1 to enter into alarm setting mode, the display blinks.
Press AL.1 again to select the source of wake up: Buzzer or FM Radio.
Press / AL.OFF to confirm.
Press HOUR and / or MIN. to set the time of wake up
Press / AL.OFF to confirm, the alarm 1 indicator (Buzzer or Radio) lights up.

Note:

Same procedure applies for alarm 2 with AL.2 button.
If you wake up with the radio, select your desired station, then long press button to turn off the radio before the alarm time reaches. For the station selecting, please refer to "LISTENING TO RADIO".
The previous level of listening is stored. The volume of the alarm will be identical. If you wake up with the radio, do not forget to check the volume level. Press and rotate VOLUME knob, then long press again .
If you use the sleep mode with low sound level, you should use the buzzer to wake you up.

Stopping the Alarm

Alarm repetition
Press SNOOZE. The alarm stops and will sound again 9 minutes later.
Alarm stop
Press / AL.OFF. The alarm1 will sound again the next day at the same time.
Alarm Cancellation
In Standby mode, long press AL.1 to enter into alarm setting mode.
Press AL.1 repeatedly to cancel until the alarm indicator lights off.
The alarm1 will be cancelled permanently.
Note: Same procedure applies for Alarm2 with AL.2 button.

SLEEP FUNCTION

To fall asleep with the radio, press SNOOZE/ DIM/ SLEEP repeatedly to select 90-80-70-60-50-40-30-20 or 10 minutes of listening. Indicator lights up. The unit will automatically turn off after the specified time. To cancel the sleep function, press SNOOZE/ DIM/ SLEEP repeatedly until OFF is displayed. The radio will be turned off also. You can press again to turn on the radio.

DIMMER

Long press DIM button repeatedly to select the brightness of the screen: high or low.

TECHNICAL SPECIFICATIONS

POWER SUPPLY

AC: 230V 50Hz, 5W
DC: 3V 2x1.5V, Battery type AAA/R03/UM4 (not included) for back up.
RADIO: FM: 87.5 -108 MHz
Dimensions: 190 (L) X 65 (W) X 83 (H) mm

MORE INFORMATION

To reduce the risk of electric shock, do not open the device, there is no party inside for the user. Refer all servicing to qualified personnel.

shock hazard The lightning with the arrow symbol in the triangle is a warning sign alerting the user to "dangerous voltage" inside the unit.

warning The exclamation point in the triangle is a warning sign alerting the user of important instructions accompanying the product.

The Marking plate is located at the bottom of the device.
Make sure to have a minimum distance of 5 cm around the unit for sufficient ventilation.
Ensure that the ventilation openings is not covered with items such as newspapers, tablecloths, curtains, etc.
Do not place naked flame sources, such as lighted candles on the apparatus.
Do not expose this appliance to dripping or splashing water.
Do not place objects filled with liquids, such as glass, vase on the device.
Do not throw batteries into fire! Respect the environment when disposing of used batteries.
Batteries should not be exposed to excessive heat such as sunshine, fire or other similar heat source.
The power plug is used as a disconnect device and must be easily accessible. To be completely disconnected from the power, the plug of the appliance should be disconnected completely. The socket must not be obstructed and should be easily accessible during intended use.
Under the influence of fast transient and / or electrostatic electric phenomenon, the product may malfunction and the user must perform a power reset of the device.

If in the future, you need to get rid of this product, please note that Waste electrical products should not be disposed of with household waste. Recycling facilities exist. Check with your municipality or ask your dealer for advice. (Directive for Waste Electrical and Electronic Equipment)
