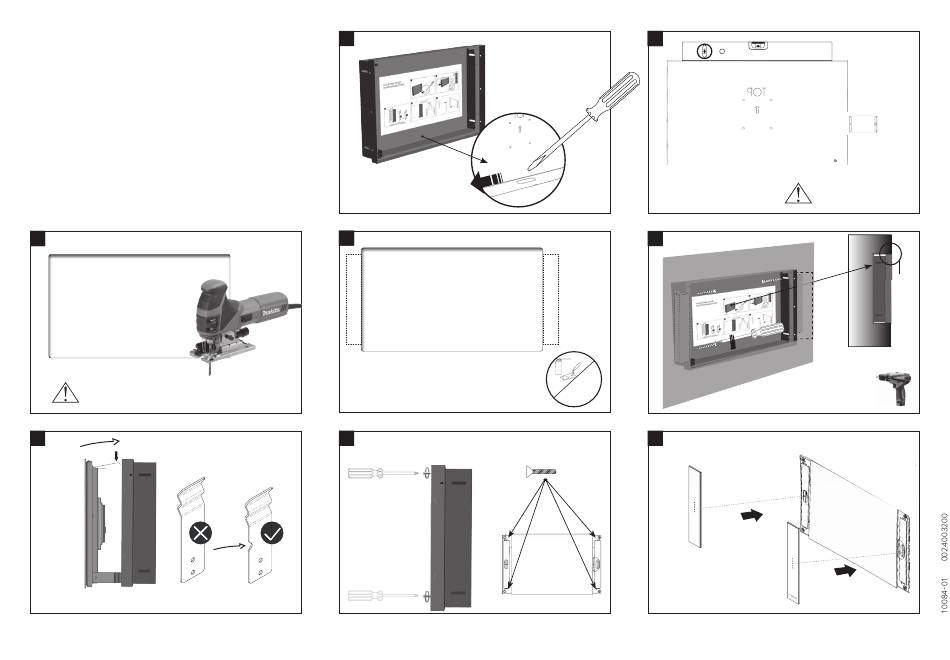

Mounting Guide
for plaster wall and
wooden structure
SC 10 EBGF, SC 15 EBGF, SC 19 EBGF
3 3
Mark out accurately. Cut it out precisely!
Frame covers only 1 mm per side!
6
Push &
Click
Connect your I/O and power supply
ALBRECHT JUNG GMBH & CO. KG | Volmestraße 1 | 58579 Schalksmühle | GERMANY | Tel +49 2355 806-0 | Fax +49 2355 806-204 | kundencenter@jung.de | www.jung.de
1
3 4
Fix the two wooden fillets inside the wall.
7
max. 20 mm screws
3 2
Mark out accurately.
Frame covers barely!
5
8
Box
flush
with
wall
