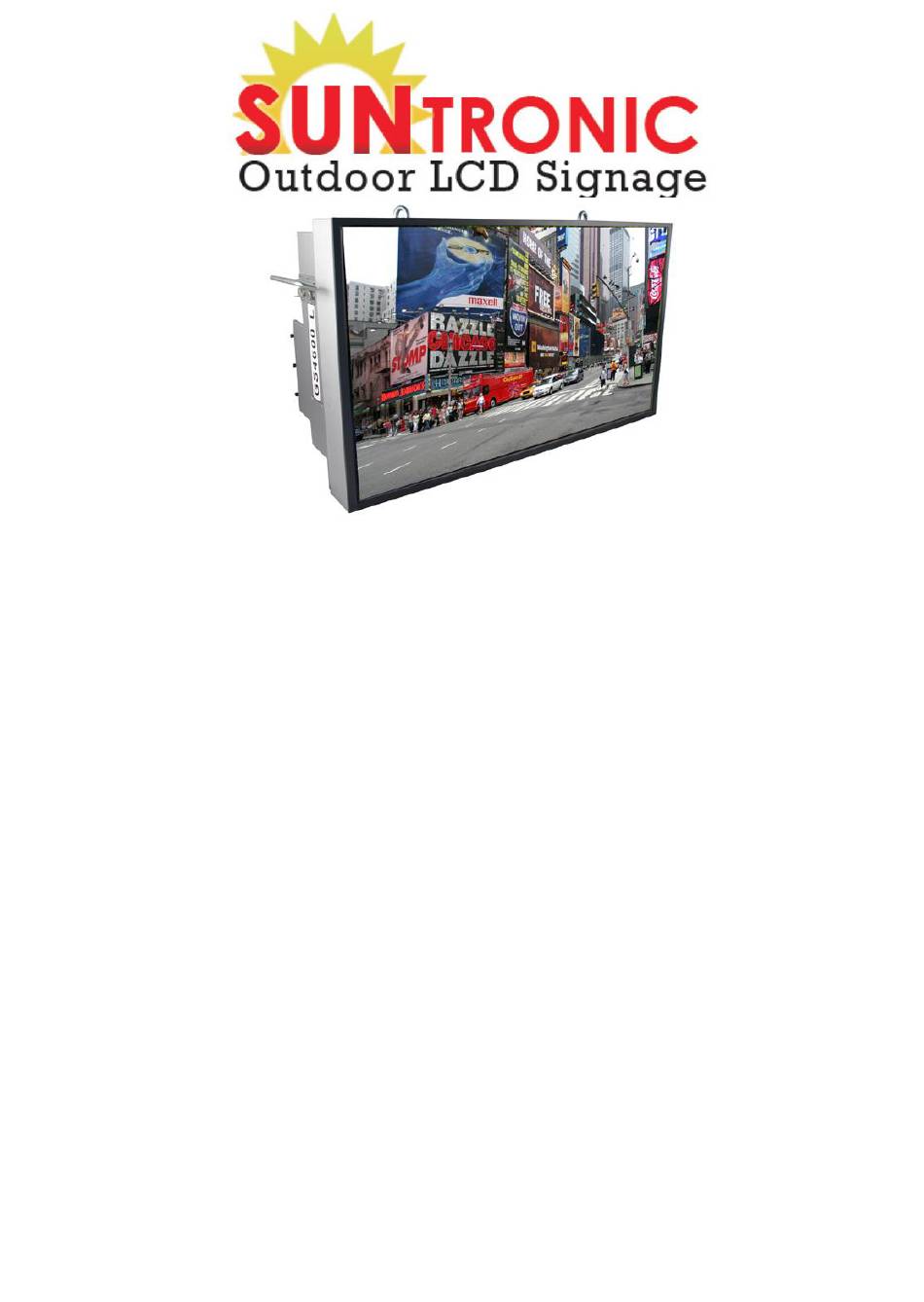

GSU4600L1(110V)

All Weather Outdoor LCD/Video Wall Signage

Please read this Instruction book before using your LCD monitor. We wish you many

hours of pleasure from your new Outdoor LCD monitor.

CHANGES

Suntronic provides this manual 'as is' without warranty of any kind, expressed or implied, including

but not limited to the implied warranties or merchantability and fitness for a particular purpose.

Suntronic may make improvements and/or changes to the product(s) and/or the program(s) described in

this publication at any time without notice.

This publication could contain technical inaccuracies or typographical errors.

Changes are periodically made to the information in this publication; these changes are incorporated

in new editions of this publication.

otherwise be recorded, transmitted or stored in a retrieval system without the prior written consent

of Suntronic.

Trademarks

Brand and product names mentioned in this manual may be trademarks, registered trademarks or copyrights

of their respective holders. All brand and product names mentioned in this manual serve as comments

or examples and are not to be understood as advertising for the products or their manufactures.

USER'S MANUAL

Version 4.5 Oct 2016

www.SuntronicLCD.com

Table of Contents

Need help?

Do you have a question about the GSU4600L1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Suntronic GSU4600L1

Page 1 Outdoor LCD monitor. CHANGES Suntronic provides this manual ’as is’ without warranty of any kind, expressed or implied, including but not limited to the implied warranties or merchantability and fitness for a particular purpose.
Page 2: Table Of Contents
13. How to use the eye bolts ·········································19 14. OSD Functions··················································20 15. Troubleshooting ···············································22 16. Specifications···················· ····························23 17. Appendix 1··················· ··································24 18. Appendix 2·····················································26 19. Appendix 3 ·····················································31 20. GS4600L Package and Accessories ·································33 21. Suntronic’s Limited Warranty Statement ··························34 22. Dimensions ···················································· 35 - 1 -...
Page 3 Notice for Users For customers (AC220V) IMPORTANT During the first time installation to connect our LCD to the electric distribution network, installation person must be cutting OFF all electricity supplied in advance: by switching down the fuse breaker inside the host Power Utility Box (NOT TURNING OFF the power outlet switch). While live AC power grid is always ready within your electric networks, we recommended there are no others transfer-switches attached or improper devices installed within the same network;...
Page 4 An immediate claim MUST be filed with the freight carrier and an inspection requested. Retain all packing materials. Suntronic cannot assume responsibility for Consignee's failure to file a timely freight claim.
Page 5: Safety Precautions & Servicing
DISCHARGE PROCEDURE FOR IMPROPER HANDING AND MOUNTING OF SUNTRONIC OUTDOOR LCDS: ■ Make sure the Out Door LCD is power-off. ■ Settle down the Outdoor LCD in proper upright position indicated by arrow markers. ■ Keep the Outdoor LCD in ground level for 36 hours (at least). The bevel between Outdoor LCDs and ground shouldn’t less than 5°.
Page 6 WARNING: Don’t touch the LCD and Enclosures when screen is exposed sunlight for long period of time. The surface of the LCD and Enclosures might be hot. WARNING: Suntronic Outdoor LCDs sold within USA and Canada are in 120V version only. For 220V requirement sold in other countries, please contact the local sales for further details about their regional requirement.
Page 7 SHOULD BE INSTALLED NEAR THE EQUIPMENT AND EASILY ACCESSIBLE This End-User License is governed by the laws of the State of California. The End-User and Suntronic agree that any action to enforce or interpret the terms of this End-User License shall be brought only in the appropriate state or federal court located in Alameda County, California.
Page 8 This LCD monitor should have a minimum distance of 6inch away from the wall and the monitor should have 6inch distance around the top and sides Do not tilt the screen more than 10 degree in any direction Do not turn landscape GS4600L into portrait model. And do not turn portrait GS4600P into Landscape This LCD monitor should not be built in or enclosed in any way, heat build up will reduce the life of the monitor.
Page 9 Lamps inside the LCD contain mercury inside. Please follow regulations or rules regarding disposal established by local authority for its disposal. In case of opening of the Suntronic display, cover the front frame to prevent over-heating of the TFT panel when exposed directly to the sun. A sheet or service tent will suffice.
Page 10: Gs4600L Outline And Intro
Safety on Shipping Save the original shipping packing material; they will come in handy if you ever have to ship one of your installed modules. For maximum protection, repack your set as it was originally packed at the factory. GS4600L Outline and intro: GS4600L 3D Figure Rear...
Page 11: Gs4600L Tilting Degree
Cable box location Back View Air Outlet Air filter Inlet Lock location No bracket back View GS4600L tilting degree using Wall mount bracket Tilt no more than 10 degrees GS4600L - 10 -...
Page 12: Placement And Installation Guidelines
Placement and Installation Guidelines Suntronic LCD are twice as bright as indoor LCD. The sun, however delivers more than 30 times the brightness. Therefore, it is important that you do not place the TV where the screen faces direct sunlight. This will cause the image on the screen to be washed out.
Page 13 Video and Power input - 12 -...
Page 14: Environment
The Rear side must be wide open with air circulation. WARNING: Don’t put these GS4600L into a confined area to prevent overheat and void warranty Back View Suntronic Rear exhaust AC Brill must be completely facing out without any...
Page 15 Wall Mount installation: Keep more than 6” from the wall and must use Suntronic’s Wall Mount bracket Model no. GS-4600WML and maintain 600FM of air circulation the rear end. D: Installing GS4600L units back to back, you will need to have min 14” apart from each rear unit and if over heat, we strongly recommend to keep min.
Page 16: Led Light Status And Over Heat Solution
LCD LED light Status and over heat solution A. When power is on the light shows red color, means stand by; B. When power is on the light shows green color, means LCD power on C. When power is on the light shows red light flashing, means GS4600L under over heat protected mode *LCD LED light, it is located at the bottom of enclosure see below for LED Status...
Page 17: Alarm And Led Code
Alarm and LED CODE 1. Thermal Brightness Control 2. A/D Board LED; Green = video input; Red = powered down or no video input 3. GS Environmental Series Siren/LED Alarm Code 4. N/A Definition 1. Thermal Brightness Control LED Green Full Brightness per setting LED Red Overheating brightness cut down to 30%...
Page 18 • Certified Technician Required to Open • Contact Suntronic Dealer for Confirmation Main Power Switch Compartment (For Integrated PC Only) 1. Main Power Switch (Power Switch for Display, Controls all internal components) 2. PC Power Pushbutton (Power Button for PC, Powers unit on and off) 3.
Page 19 Main Power Switch Compartment 1. Main Power Switch (Power Switch for Display, Controls all internal components) Accessory Bag 1. Plastic Screws (Included for water protection of unused screw holes) 2. Enclosure Key and Security Screw Tools (Security Screw tools for back cover and front bezel) 3.
Page 20 Accessory Bag for Integrated PC 1. Remote Control (Used to control screen function, no PC control) 2. Plastic Screws (Included for water protection of unused screw holes) 3. PC Driver CD (Drivers for PC peripherals) 4. Eye-bolts for Mounting (Insert in top M12 screw holes to assist when mounting enclosure) 5.
Page 21 Intentionally blank page - 20 -...
Page 22: Instructions To Clean Air Filter
Instructions to Clean Air Filter 1. Locate both Air Filters installed on the GS6500. 2. Unscrew both screws mounting the Air Filter Holder to the enclosure. Pull filter out and clean with compressed air. Replace after cleaning. Air filter should be cleaned every 3 months. - 21 -...
Page 23: How To Use The Eye Bolts
How to use the eye bolts A: Remove the eye bolts after installing on desktop, use M12 plug (4PCS) instead of the eye bolts. B: Must use eye bolts when installing on high wall or high shelf C: Pay attention to the rings installation location when using them, please see on eye bolts installation figure.
Page 24: Osd Functions
OSD Function - 23 -...
Page 25 Remark: Items marked  have sub menus. Exit the OSD menu to save the setting chosen - 24 -...
Page 26: Troubleshooting
TROUBLESHOOTING General A general guide to troubleshooting a flat panel display system it is worth considering the system as separate elements, such > Controller (jumpers, PC settings) > Panel (controller, cabling, connection, panel, PC settings) > Backlight (inverter, cabling, backlight tubes) >...
Page 27: Specifications
SPECIFICATIONS Panel compatibility 1920x1200, 1920x1080, 1920x480, 1680x1050, 1600x1200, 1400x1050, 1440x900, 1366x768, 1280x1024, 1280x800, 1280x768, 1024x768, 1024x600, 960x960, 800x600, 800x480, 640x480 resolution TFT LVDS LCD’s support. No. of colours Up to 3 x 8 bit providing 16.7 million colours. Vertical refresh rate WUXGA, UXGA, WXGA, SXGA, XGA, SVGA, VGA resolution up to 60Hz.
Page 28 APPENDIX I – Mode Support Table ARGB (P1) PORT : Clk [MHz] Horizontal Vertical freq Mode Resolution Sync Mode freq [KHz] [Hz] 720x400 T_70 28.322 31.469 70.087 Digital Separate Sync 70Hz 720x400 T_70 28.322 31.469 70.087 Sync On Green 70Hz 640x480 V_60 25.175...
Page 29 HDMI (P3) port: Clk [MHz] Horizontal Vertical Mode Resolution freq [KHz] freq [Hz] T 70 720x400 70Hz 28.322 31.469 70.087 V 60 640x480 60Hz 25.175 31.469 59.940 SV 60 800x600 60Hz 40.000 37.879 60.317 X 60 1024x768 60Hz 65.000 48.363 60.004 SX_60 1280x1024 60Hz...
Page 30 APPENDIX II – RS-232 control protocols RS-232 Serial control (Baud rate 2400, 8 bits, 1 stop bit and no parity) Physical connection : Controller side Connector Computer side interface : CN8 Mating Connector interface : Serial port connector : JST XHP-6 Mating connector : DB9 Female Mating face of CN8 Mating face of RS-232 DB9 Male...
Page 31 1. Commands to implement switch mount control buttons Function Command Description Acknowledge (if enabled) Menu 0xf7 Menu button pressed Button equivalent Select-down 0xfa Select down button pressed Button equivalent button Select-up button 0xfb Select up button pressed Button equivalent Right/+ button 0xfc Right/+button pressed Button equivalent...
Page 32 Sharpness 0x8a, Set sharpness= Sharpness nn | “+” | “-” |”r” | ”R” value/increment/decrement Range: “F””C”-“0””4” Reset “?” Default: “0””0” Query Frequency 0x8b, Frequency = Frequency adjustment nnnn | “+” | “-“ | value/increment/decrement (In ARGB mode only) “?” Query OSD Rotation 0x8f, Set OSD rotate=...
Page 33 “?” Default: “6””4” Query “0” – OSD turned off “1” status 0xbb Status of OSD – OSD turned on enquiry Backlight brightness 0xe0, Set backlight brightness = Backlight brightness. nn | “+” | “-” | “r” control value/increment/decrement Range: “0””0”-“6””4” Default: “6””4” | “R”...
Page 34 Other control Function Command Description Acknowledge (if enabled) “0” – acknowledge disabled. “1” – Select RS-232 0xc1, “0” | “1” Disable/enable command acknowledge acknowledge. acknowledge enabled. Start auto-setup of current “0” – fail. Auto-setup 0xc3 vmode. “1” – successful. “0” – not available. “1” Command Check whether a command is 0xc4, n...
Page 35 Hex to ASCII conversion table ASCII ASCII ASCII ASCII 0x30 0x41 0x61 0x2B 0x31 0x42 0x62 0x2D 0x32 0x43 0x63 0x3F 0x33 0x44 0x64 0x34 0x45 0x65 0x35 0x46 0x66 0x36 0x47 0x67 0x37 0x48 0x68 0x38 0x49 0x69 0x39 0x4A 0x6A 0x4B...
Page 36 APPENDIX IV – DV remote control unit work for S1920DV Remote control unit (without DV logo silk screen printing) Remote control unit (with logo silk screen printing) BUTTON FUNCTION POWER BUTTON Soft power ON/OFF button. ATTENTION BUTTON Use combined with digit keys to enable/disable the IR function. “Attention”...
Page 37: Gs4600L Package And Accessories
Accessories GS4600 Package and Accessories packing Wall mount bracket packing Beehive cardboard main GS LCD Individual Pallet - 36 -...
Page 38 In the event that the part required for replacement is no longer in production and/or is obsolete, Suntronic will repair the unit with similar or like parts of equal value. If a similar or like part Is not available, a charge may be incurred to the owner for any upgraded part substituted.
Page 39: Dimensions
Dimensions - 38 -...
Page 40 Suntronics Technology Inc. US HEADQUARTERS 41758 Christy Street,Fremont CA 94538 International Phone: 510.996.7454 E-mail: sales@SuntronicLCD.com www.SuntronicLCD.com - 39 -...
